Refurbished GY6 150cc Complete Engine Motor 150cc Short Case CVT Transmission, Electric/Kick Start for ATV Go Kart
1. Only ONE left! Get this particular engine before someone else purchases it!

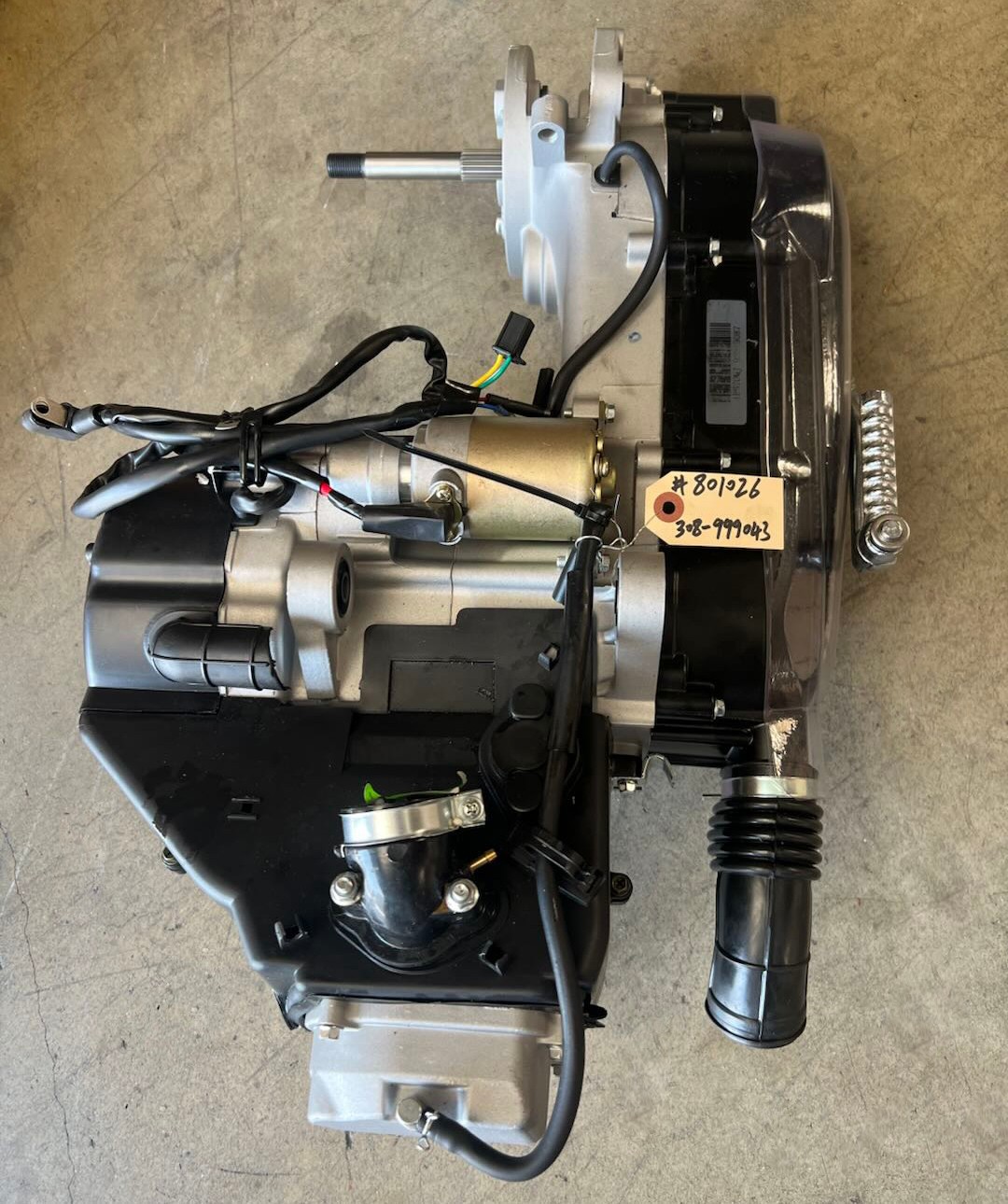

2. The pictures above show the exact engine, you will receive exactly what you see.
3. This engine contains only a small amount of test oil. After receiving the engine, check the oil dipstick, then add an appropriate amount of oil before use.
4. Only the intake pipe and spark plug on the engine was replaced.
Refurbished GY6 150cc Engine, Short Case, Use 743 Belt, 4 Stroke Motor, CVT Transmission, Electric/Kick Start.
This engine is connected to an external reverse gear, and the reverse gear has a small sprocket. It cannot be directly connected to the sprocket, the small sprocket is on the matching external reverse gear.
This engine is specially connected to an external reverse gear. It is compatible only with ATVs and Go Karts, and not applicable to Scooters.
Mounting Hole Spacing: 11.5" X 6.5" X 4.9", See pictures forreference
Compatible Vehicles:
- 150cc GY6 Go Karts
- 150cc GY6 ATVs
Compatible Models: Blade, Kinroad, Roketa, KPX, SUNL, Aimex, Alpha sports, BMS, BMX, Cool Sports, Baja, JCL, Taotao, Peace, JM Star, Jonway, Kazuma, KMD, Kymco, Lance, Linhai, NST, Redcat, Roketa, Tank, X-Treme, Yamati, Coolster, Terminator, Lynx etc.
This engine assembly comes with INTAKE PIPE and SPARK PLUG. It doesn't come with Carburetor, Battery, CDI, Voltage Regulator and Ignition Coil.
PLEASE NOTE: GY6 125cc and 150cc motors come in different sizes.
1. Please measure the physical size to be sure you get the correct one.
2. When purchasing this engine, please pay special attention to whether the plug-in is compatible with your bike. If it not, you need to purchase an additional plug-in for modification.
Specifications Engine Model 308-999043 Ignition Method CDI Engine Type Single Cylinder, 4-Stroke, 2-Valve Lubrication Pressure/splash Cooling System Air Cooled Fuel Supply Carburetor Atomization Horsepower 8.72HP/7500Rpm (6.5KW/7500Rpm) Starter Electric/Kick starter Max. Torque 9.0N.m/5500rpm Transmission CVT Min. Stable Idle Speed 1600±150r/min Clutch Shoe-type Automatic Centrifugal Dry Clutch Min. Fuel Consumption 9.31oz/HP.h (354g/Kw.h) Cylinder Diameter 2.26" (57.4mm) Carburetor Model PD24J Piston Stroke 2.28" (57.8mm) Carburetor Type Horizontal Vacuum Carburetor Bore & Stroke 2.26" x 2.28" (57.4mm x 57.8mm) Spark Plug Model A7TC Cylinder Working Volume 0.03 Gallon (149.6ml) Fuel No. >=87# Compression Ratio 10.5:1 Lubrication Model SF10W/40-SE Ignition Type CFW Lubrication Capacity 0.26 Gallon (1200ml)
