The fuel inlet threads on the carburetor were incorrectly machined to 1/8-28.If you need to replace the fuel inlet fitting, please tap the fuel inlet threads on this carburetor using a 1/8-27 NPT tap, sorry for the inconvenience!
Exact fit for 1937-56 Chevrolet. Fits many other applications such as 1930s-1940s IHC trucks, 1930s-1950s GMC and more.
Universal linkage arm rotates 180 degrees
Fits standard 1 barrel carb flanges
Uses clamp-on air cleaner Tall design matches Rochester Model B and Zenith 28/228 carburetors Manual choke Chevy/GMC style linkage Includes inline fuel filter, flange gasket, instructions 2-11/16" to 2-15/16" mounting bolt centers (slotted flange) 6.75" tall 2.27" air cleaner flange 1.5" throttle bore

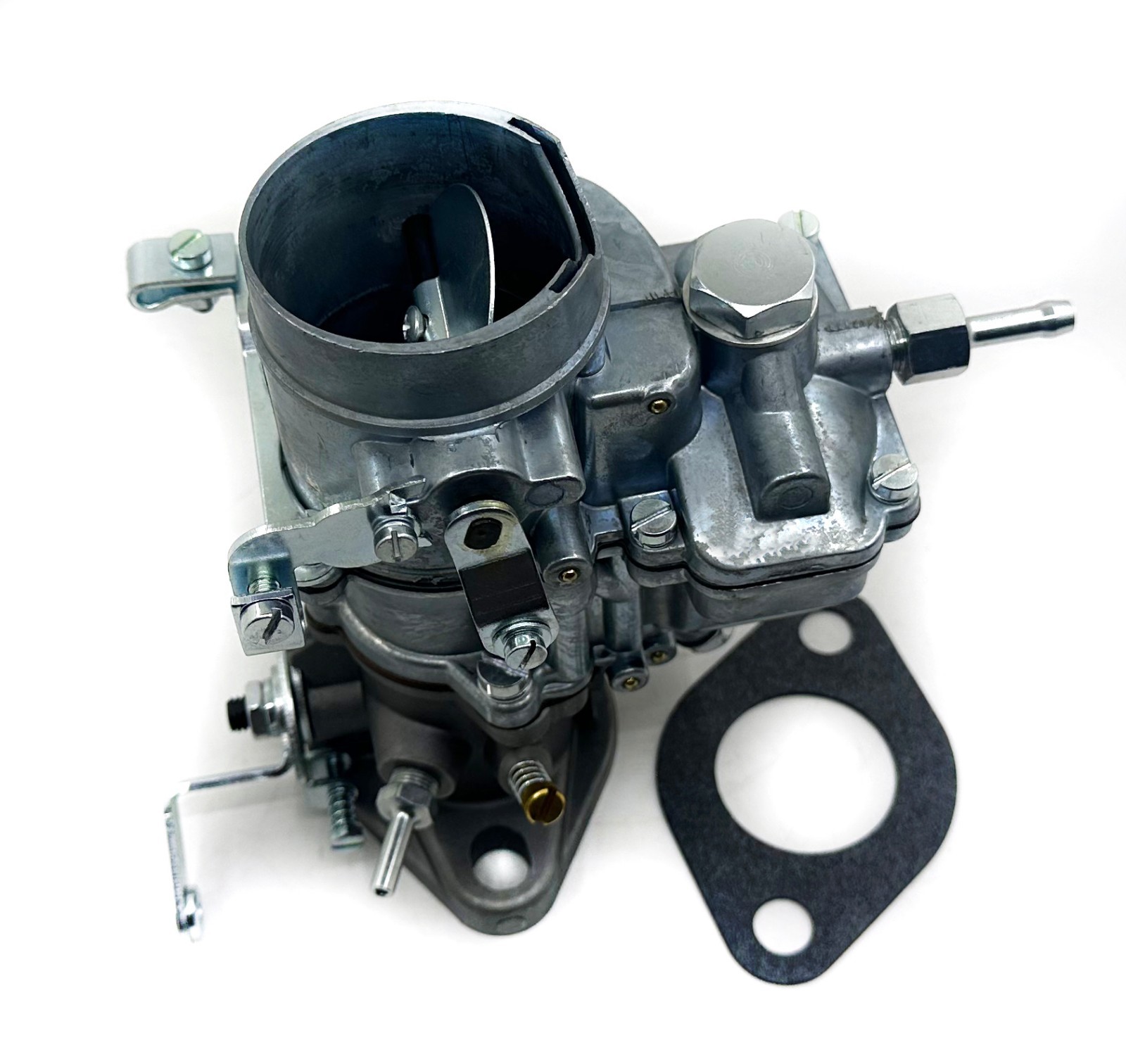

This carburetor is a direct replacement for Carter W-1, Rochester Model B and Zenith 28/228 carburetors used on Chevrolet, Chevrolet Truck, GMC and IHC applications with a clamp-on air cleaner. Does not fit air cleaners with wing nut retainers.
Also suitable for replacing Carter 1 bbl carbs such as the Carter BB, WA-1 and WE.
New, not rebuilt, replacement 1 barrel carburetor for 140-300 CID 6 cylinder applications. Features manual choke, universal type linkage and clamp-on air cleaner mounting.
Ethanol compatible: features Viton fuel inlet valve and brass accelerator pump.
