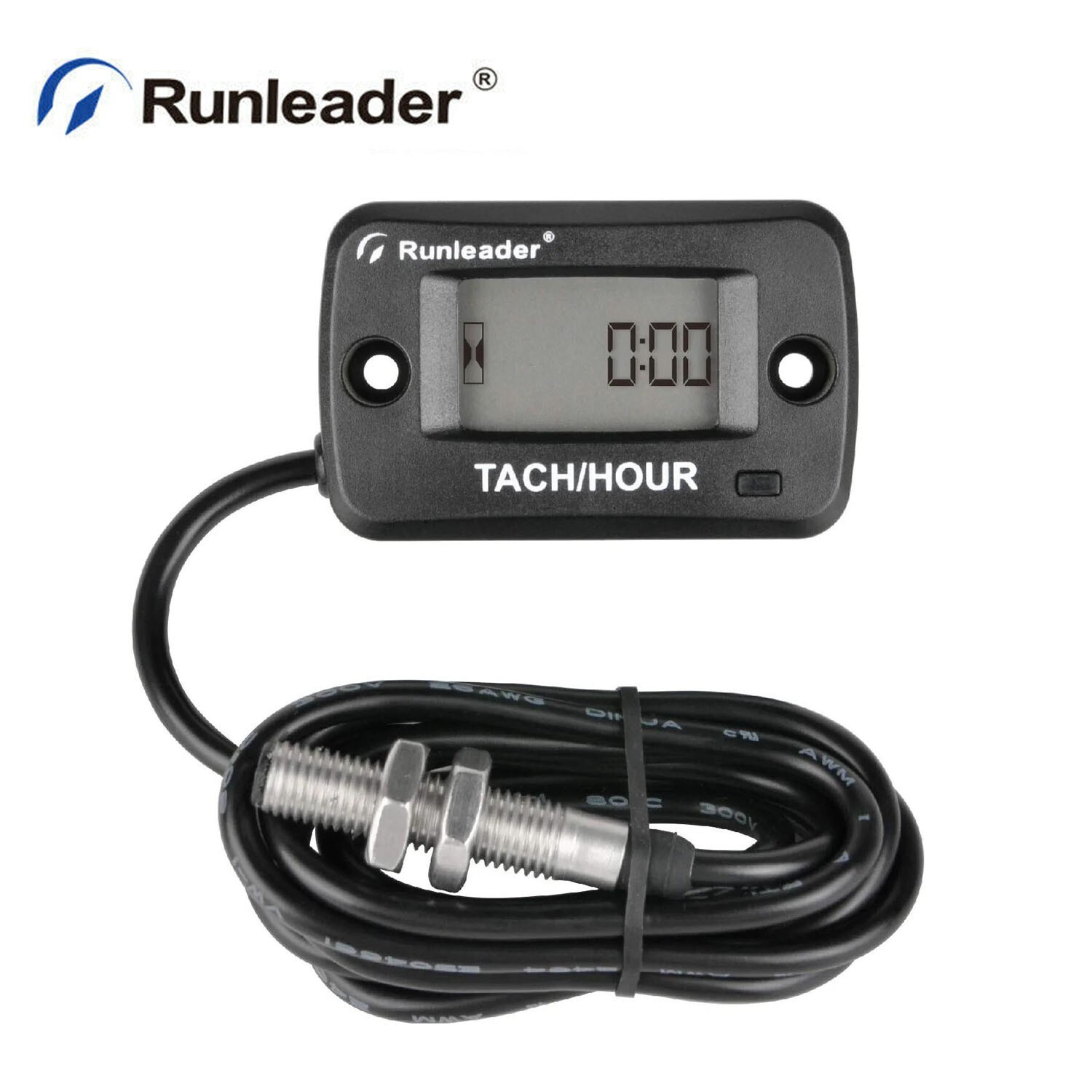

Runleader RL-HM019C Digital Hour Meter Tachometer, Data Magnetic Pickup, Maintenance Reminder, LCD Display Shutdown, Working Time Recorded,Waterproof Design. It can be used on Lawn Mower Tractor Generator Outboards Motor Motorcycle Compressor Any Rotating Shaft/Gear Pulley Device.
(Manufacturer Warranty:2 Years)
For more than 10 years, Runleader has focused on product development and manufacturing in the fields of hour meter, battery indicator, multi-function meter, controller,service for the garden machinery industry, outdoor power vehicle equipment, transportation vehicles, such as: generators, pumps,chainsaws,outboards,lawn mowers,compressors and others,provide well-known European and American customers with quality products and services.
Product Features:
1. Hour Meter Features
- TOT:It record the total amount of hours when rotating equipment is shut off.
- JOB:Available 2 JOB timers measure the time of a particular work job, e.g. change oil.
- SVC:It perform the necessary maintenance tasks,remind its arrival time.
- TOT/JOB hours range:0 to 999,999 hours.
- SVC timer range:0 to 1000 hours.
- √ Applicable to various of machines.
- √ Strong water resistance IP68.
- √ Easy to install.
2. Tachometer Features
- RPM: It monitor the engine real-time RPM value when it on.
- MAX RPM: It display the maximum engine RPM running hit since engine started.
- RPM & MAX RPM range: 0 to 20,000 RPM
Runleader has established a complete laboratory for testing and improving the product\'s quality
Buttons Testing
- The buttons can works well after 10,000 repeated taps with a 300g weight.
High Pressure Washer Testing
- Display with PC transparent board can keep it away from the damp or moist.
- It also prevent the strong shock when it is cleaning.
High & Low temperature Testing
- It can works well in temperature environments temperature: -40 °C - +70 °C.
Drop Testing
- Favorable anti-vibration performance can suffer strong vibrations when the equipments is working.
Anti-vibration Testing
- It can keep the housing and LCD display window in good condition upon vibration amplitude 1.52mm after 6 hours testing period.
Yellow Resistance Testing
- It can keep good working condition from simulative strong UV ray lightening. It also pass another considerate test for each functions sections and attached accessories.
Installation Methods
ApplicationsThis hour meter suitable for Outdoor Power Machinery,Vehicles,Boats etc.such as:Lawn Mower Garden Tractor Riding mower Leaf Blower Pressure washer chainsaw Snowblower Brush Mower Line Trimmer string trimmer Pressure Washer Portable inverter generator Motorcycle Dirtbike ATV UTV Scooter Paramotor Harley dual-sport bike Golf cart Outboard Jetski Pontoon boat Mercury Raceboat Hovercraft etc.
Specifications
- Viewable engine working time.
- Internal battery CR2450 540mAh by epoxy sealed craft.
- Operating temperature: Not exceed 125F.
- LCD screen size 27x16 mm,it can be shut down by related buttons.
- Length of Pickup sensor:1.2m φ8*38mm
- Product to install, including accessoreis Double sided tape, Cable tie, Screws,Pickup magnet-RbFeB (φ8*3mm),Pickup sensor,User manual.
- Waterproof rate: IP68
