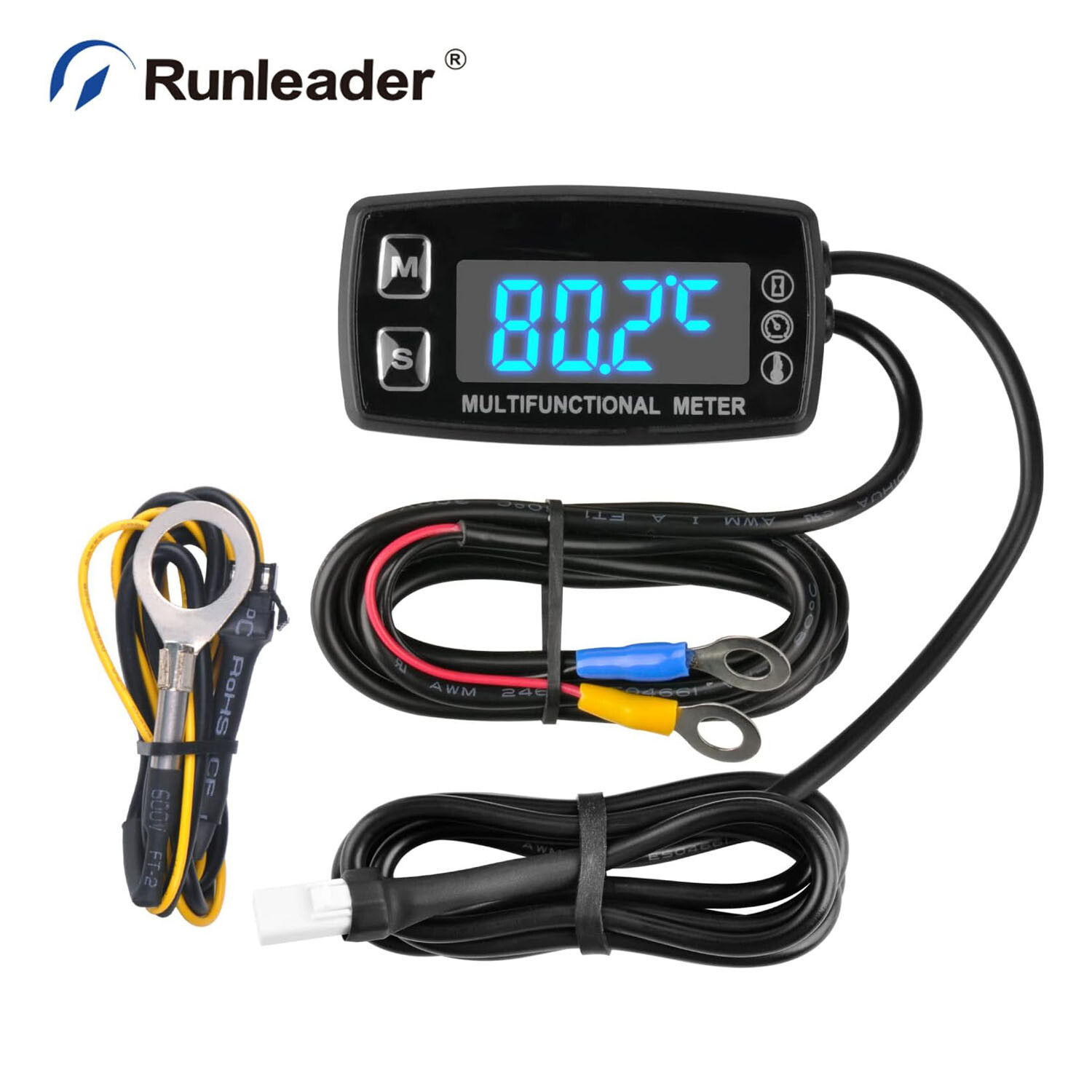

Runleader RL-HM035LT Digital LED Multifunctional Meter, Engine Temp Gauge, RPM & Hours Display，Maintenance Reminder,Waterproof Rate IP67.（2-year warranty）
For more than 10 years, Runleader has focused on product development and manufacturing in the fields of hour meter, battery indicator, multi-function meter, controller,service for the garden machinery industry, outdoor power vehicle equipment, transportation vehicles, such as: generators, pumps,chainsaws,outboards,lawn mowers,compressors and others,provide well-known European and American customers with quality products and services.Product Features1. Engine Temperature Gauge
- Real-time temperture:Help to measure the real-time temperature value for engine oil by TS002 probe sensor.
- MAX temperature:It display the maximum temperature value during historic measurement process.
- Temperature alert:Remind the temperature exceed based on preset alert temperature value.
- Temperature units:You can switch the temperature unit from \"℃\" to ℉\".
- Temperature measurement range:-20℃ to 300℃(-4℉ to 572℉).
- √ 9 programmable engine firing patterns for gas engine powered machine.
- √ LED Digits Display.
- √ Well-completed accessories.
2. Digital Hours Tachometer
- Real-time RPM:Record the engine real-time RPM value when it run, help to calibrate the accuracy by 9 engine firing patterns.
- MAX RPM&RPM ALERT:Display the maximum RPM value since engine start to work, Alert the RPM running exceed based on the preset RPM alert value.
- HOURS:Keep track of total and partial hours for engine running;Schedule the regular maintenance task and advise it\'s arrival time.
- √ RPM range: 0 to 19,990 RPM.
- √ TOT & JOB hours range: 19,999 hours
- √ Maintenance timer range: 0 to 1000 hours.
Runleader has established a complete laboratory for testing and improving the product\'s quality
Buttons Testing
- The buttons can works well after 10,000 repeated taps with a 300g weight.
High & Low temperature Testing
- It can works well in temperature environments temperature: -40 °C - +70 °C
Drop Testing
- Favorable anti-vibration performance can suffer strong vibrations when the equipments is working.
Anti-vibration Testing
- It can keep the housing and LCD display window in good condition upon vibration amplitude 1.52mm after 6 hours testing period.
Salt Spray Testing
- It can keep good working condition under 5% strength salt spray solution about 16 hours.
Static interference Testing
- It keep the good working condition upon a partial electromagnetostatic field.
- It also pass another considerate test for each functions sections and attached accessories.
Installation MethodsSpecification
- Hours/SVC range：0 to 19,999 hours/0 to 1000 hours
- RPM range/Temp range：0 to 19,990 RPM/- ℃-+ ℃（-40℉ to + 572℉)
- Initial value preset/Temp and RPM wire length：1.75m(68.80 inches)
- Power supply|：DC12V
- Product size/Screen size：70.00mm*37.00mm*18.00mm(2.76 inches*1.46 inches*0.71 inch)/41.00mm*17.00mm(1.57 inches*0.67 inch)
- Waterproof rate：IP67
