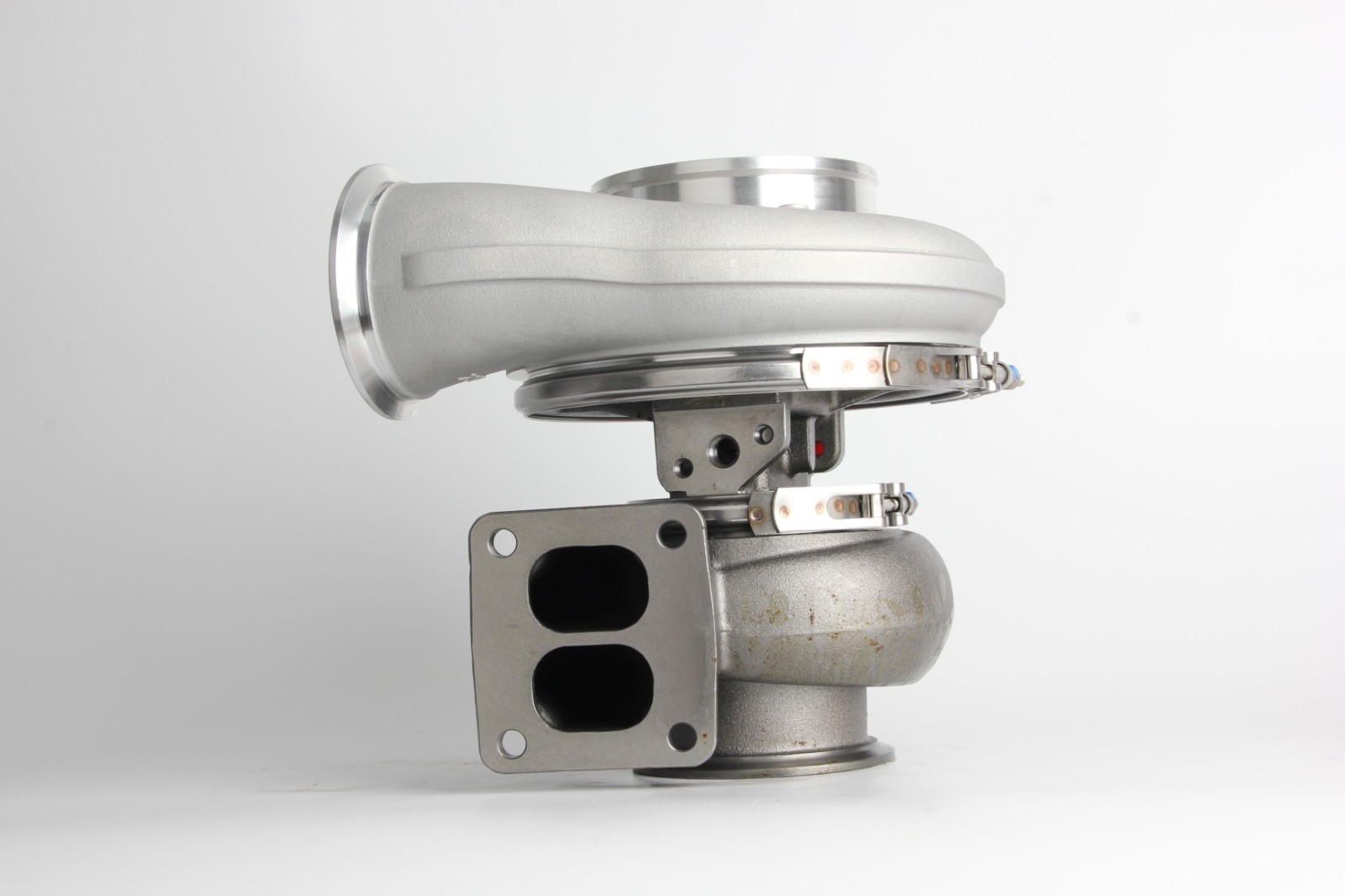

S400SX4 S480 UPGRADE 80mm Billet Compressor Wheel T4 Twin Scroll .96 A/R Turbo Charger For 550-1250 HP
Turbo Features:
1.Twin hydrodynamic journal bearings2. Extended tip technology80/117.5mmbillet compressor wheel3. Twin scroll turbine housing options available4.360 upgraded thrust bearing5.Fit Vehicle: Universal turbo for performance use, racing car etc.6.Recomand application horsepower: 550-1250HP7.Recomand application oil pressure: 30~45PSI8.If boost presure higher than 2.5 Bar, it will significantly reduce the turbo lifespan and may result in damaging of you engine .Specification
Billet Compressor Wheel: 80/117.5mm, 7+7 blades
Turbine Wheel: 83.7mm/74.3mm, Cast Inconel Material for high-temperature operation
Turbine Housing: .96 A/R T4 twin-scroll Inlet,4.21" V-Band outlet
Compressor Housing 5.00" ported anti-surge air inlet / 4.21" charge pipe outlet
Reference Part No.: 171702 177101
