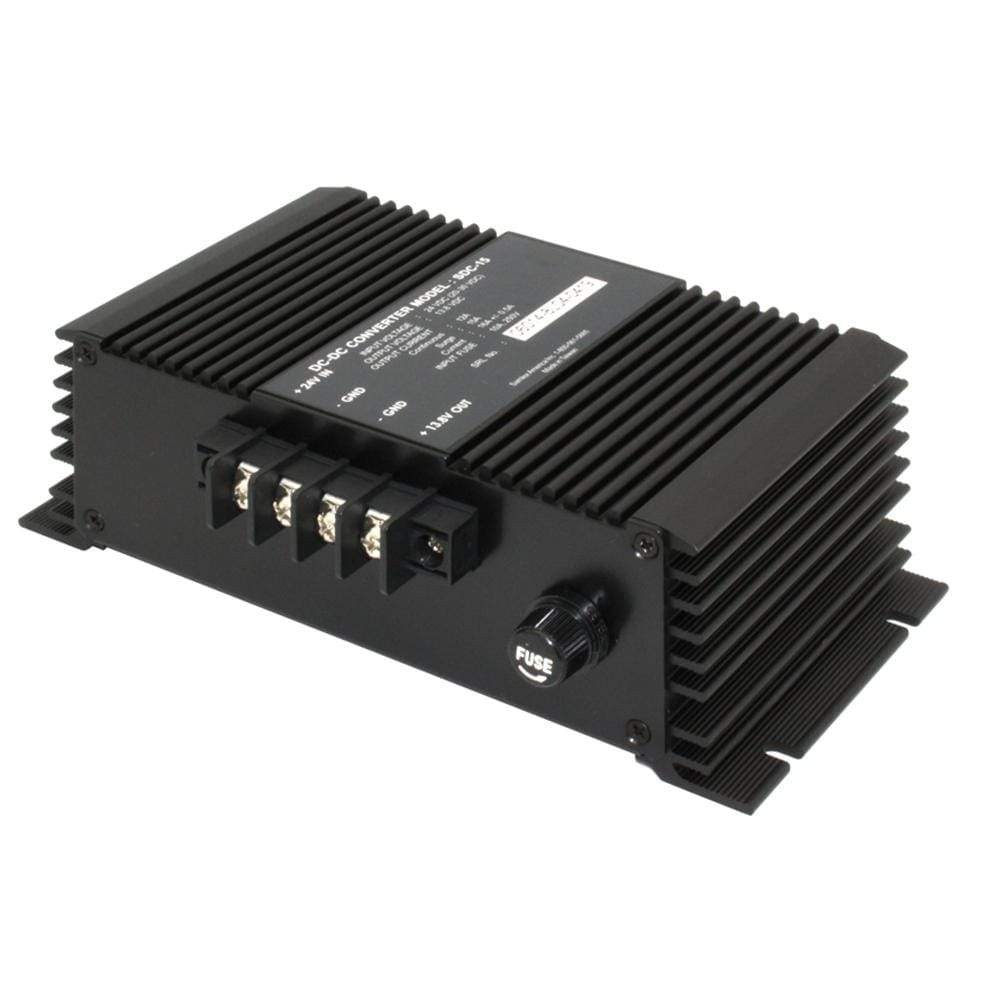

Samlex America SDC-15 Converters

12A Non-Isolated Step-Down 24VDC-12VDC Converter - Heavy Duty Applications

This high efficiency switch-mode step-down DC-DC converter converts an input voltage of 24 VDC nominal (range 20 VDC to 35 VDC) to a highly regulated output voltage of 12 VDC nominal (13.8 VDC) at 12 Amps. The SDC-15 DC-DC converter is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include overvoltage/short-circuit protection, temperature compensated current limit, output-side overvoltage protection, input-side overvoltage/ transient protection and input-side reverse polarity protection. The SDC-15 DC-DC converter is designed for heavy duty switchmode design

Mount in almost any location

Compact and light weight

Reverse polarity protection

High efficiency

Cycle by cycle current limiting circuit

Overvoltage protection

Short circuit 20-35 VDC

Output: 13.8 VDC

Amps: 12 Amps

Weight: 2 (lbs)

Weight: 0.9 (kg)

Dimensions: 7.75 x 5 x 2.5 (in)

Dimensions: 19.7 x 12.7 x 6.4 (cm)

Warranty: 2 Year moving equipment

Heavy trucks

Buses

Marine vehicles

CB radios

12 Volt lighting systems

AM/FM sound systems

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Normalized SKU: SDC15
UPC Code: 622988060144Samlex America SDC-15 Literature Download  Owners Manual
