Application: - Mazda Mx5/Miata/Eunos NA (MK1) Chassis '89-'98
- 1.6 B6-ZE Engine
- Manual & Automatic Transmissions
- RHD & LHD Models
Package Includes: - 15 coolant and breather hoses
- 30 stainless steel hose clamps

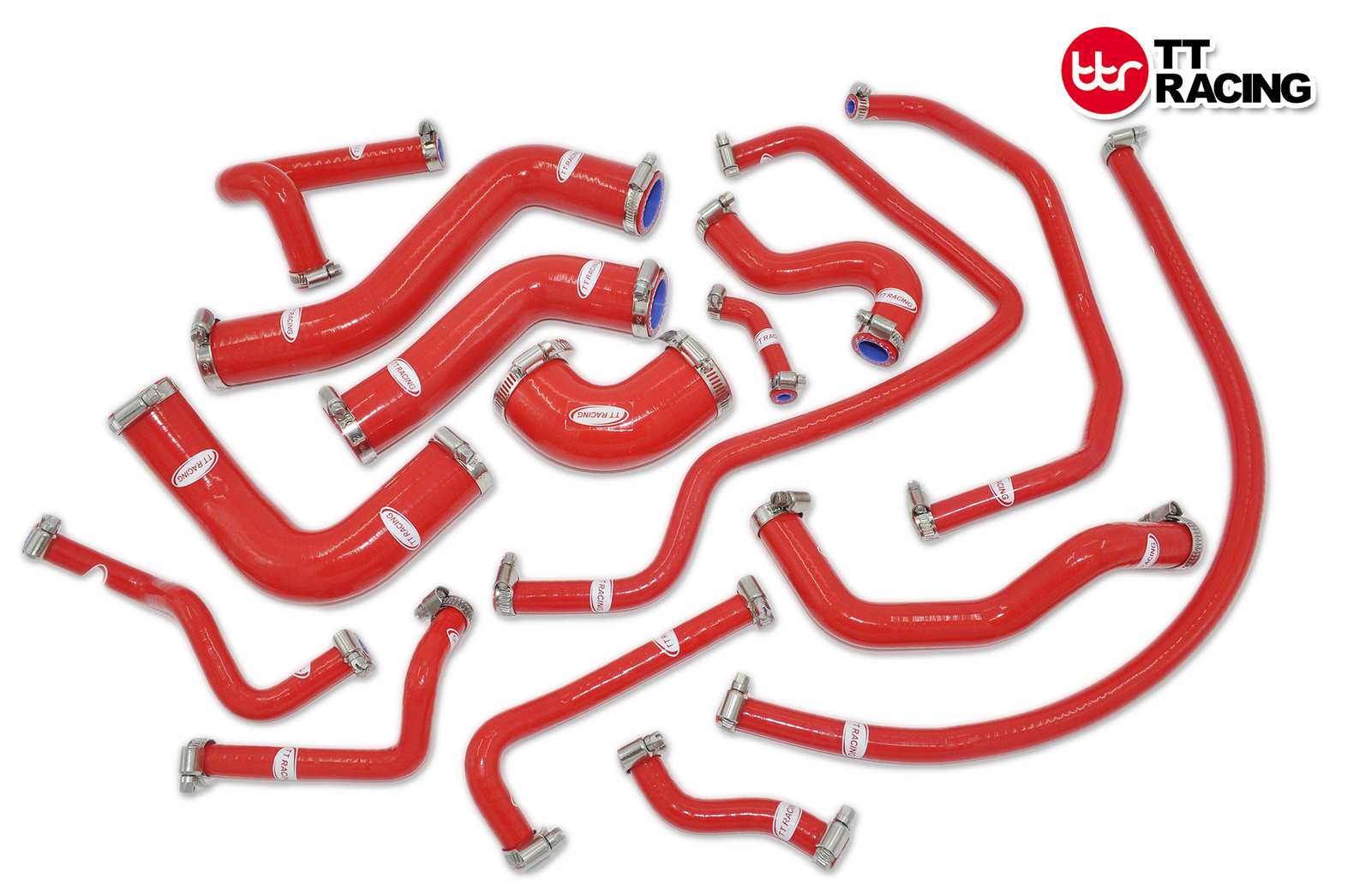

Hose list: This high quality reinforced silicone hose kit replaces15 coolant and breather hosesin the engine bay listed below. The hoses fit all Mx5 MK1 1.6 models. 1.Upper Radiator Inlet Hose 2.Lower Radiator Outlet to Hard Pipe Hose 3.Lower Radiator Hard Pipe to Block Hose TT Racing Silicone Coolant/Breather Hoses fits Mazda Mx5 1.6 MK1 NA Radiator '89-'98 Red
Application:
- Mazda Mx5/Miata/Eunos NA (MK1) Chassis '89-'98
- 1.6 B6-ZE Engine
- Manual & Automatic Transmissions
- RHD & LHD Models
Package Includes:
- 15 coolant and breather hoses
- 30 stainless steel hose clamps
Hose list:
This high quality reinforced silicone hose kit replaces15 coolant and breather hosesin the engine bay listed below. The hoses fit all Mx5 MK1 1.6 models.
1.Upper Radiator Inlet Hose
2.Lower Radiator Outlet to Hard Pipe Hose
3.Lower Radiator Hard Pipe to Block Hose
4.Heater Matrix Inlet Hose
5.Heater Matrix Outlet Hose
6.Inlet Manifold to Thermostat Housing Coolant Hose
7.ISC to Throttle Body Coolant Hose
8.Throttle Body Coolant Hose
9.Thermostat Housing Bypass Hose
10.Radiator to Expansion Tank Hose
11.Expansion Tank Overflow Hose
12.Cam Cover to Intake Pipe Breather Hose *
13.PCV to Inlet Manifold Hose
14.IACV Breather Hose
15.Intake Pipe Resonator Hose
Product features:
- Thickness: 2mm to 5mm, 3-4-ply
- Working Temperature: -76°F (-60°C ) to +500°F (+260°C)
- Working Pressure: 0.3 to 0.9MPa
- Bursting Pressure: 2MPa
- Size Tolerance: +/-0.5mm
- Color available:
- Made from high quality woven thermoplastic and pure silicone materials to form the highest quality engine hoses and offer longer life expectancy
- Handmade and carefully inspected
- High performance and reliability in high pressures conditions
- Flexible and can handle extreme temperature from -60°C to +260°C or -76°F to + 500°F
- Resistant to UV, water, ozone and oxygen
- Not suitable for fuel or oil transfer
- Manufactured under ISO 9001 quality system
- 1 Year Warranty
Item SpecificsManufacturer Part Number TT1507CMPN TT1507CBrand TT RACINGWarranty YesItems Included HoseType HoseClassic Part NoFluid Type Water / CoolantPlacement on Vehicle Engine CompartmentFeatures AntistaticMaterial SiliconeTemperature Rating 200 °CUniversal Fitment NoPerformance Part YesManufacturer Warranty 1 YearPressure Rating 20 psiFinish GlossyGrade A++
