Simrad® 000-13335-001 Highlights
product summary Item Condition:New
Warranty:
Click Here for more Warranty Info
WARNING:Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Description
Simrad® 000-13335-001
LOW - 000-13335-001
Simrad NAC-2 Low-current Core Pack
Model: 000-13335-001
UPC: 9420024155639

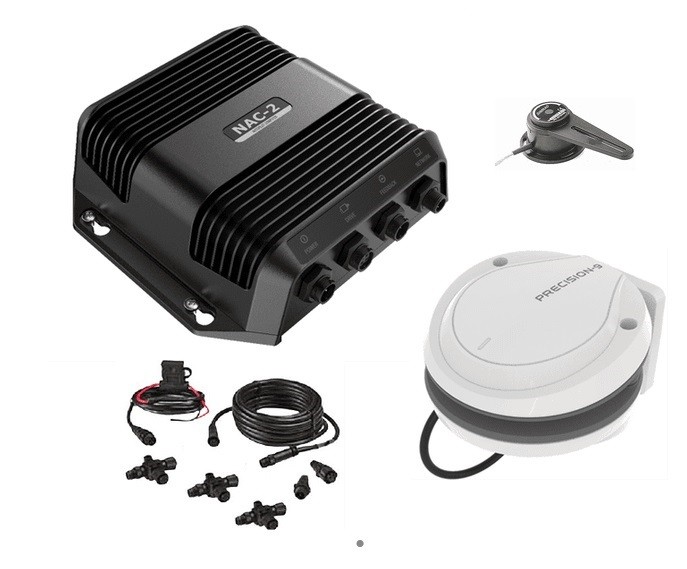

NAC-2 Autopilot Core Pack: Comprising of the high-current NAC-2 autopilot computer, Precision-9 compass and RF-25 rudder response unit Ideal for smaller vessels, designed to run small hydraulic drives and mechanical drives for vessels up to 10 meters (33 feet) in length.
The NAC-2 Autopilot Computer is the brains behind your autopilot system. NAC-2 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder response units. The NAC-2 was designed for boats up to 10 metres (33 feet) in length and is suitable for low-current hydraulic drives, mechanical drives, or solenoid valves with a current rating of 8 Amps continuous (12 Amps peak).
Specifications
Operating temperature-25°C to +55°C (13°F to 131°F) protectionSplashproof, IPx5 Electrical Power supply9-31.2 V DC Load140 mA + drive unit load PerformanceDrive: 8 A cont., 16 A for 1 s Interfaces network1xMicroC (NMEA2000) responseVariable voltage/resistive 0-5V Drive outputTo PUMP-1 or HELM-1 Solenoid12/24V DC, common, load range 10mA to 10A, off current
