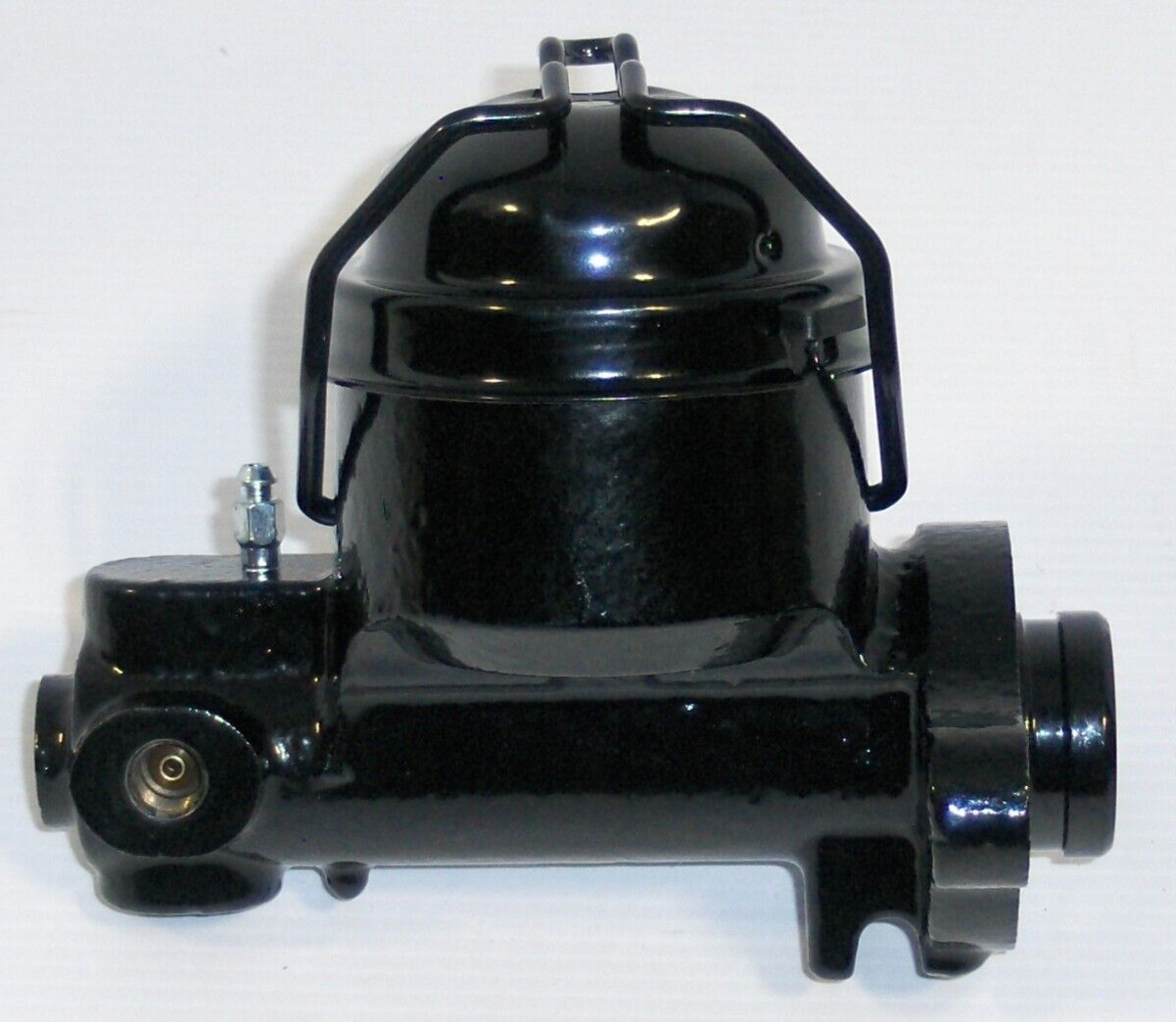

Single Reservoir Drum Brake Master Cylinder GM 1955-64 One Port 7/16" Chevy Olds:
$38.12
BLACK 1960-1966 SINGLE BOWL DRUM MASTER CYLIDNER GM FACTORY CORRECT 1" BOREItem Description
GM Full Size Chevy 1955-1964 & 1960-1966 1" Bore Master Cylinder Manual or Power Brakes Reproduction
Description:
GM Reproduction Master Cylinder
DEEP BORE
- 1" Bore
- 7/16"-24 IFF outlet port
- Manual or Power Brakes
- Copy of original
- Overall Length: 5-7/8"
- This Master is for Drum Drum Brakes Only
-(1) 7/16"Port- Outlet fitting -7/16"-24-Distance between the mounting holes to the end is approximately 5.275"- Height - Approx. 5.0"- Bolt spacing for attachment is 3.390 or 3-3/8”- Piston has a 1-5/8” dish or bore for the pushrod- Black Powder Coated Cast Iron-Single Bail Top- Brake System Style - Drum- Position - Firewall-Internal Reservoir- Not for use with disc brakes- Installation Instruction areNOTincluded
-100% Brand New
