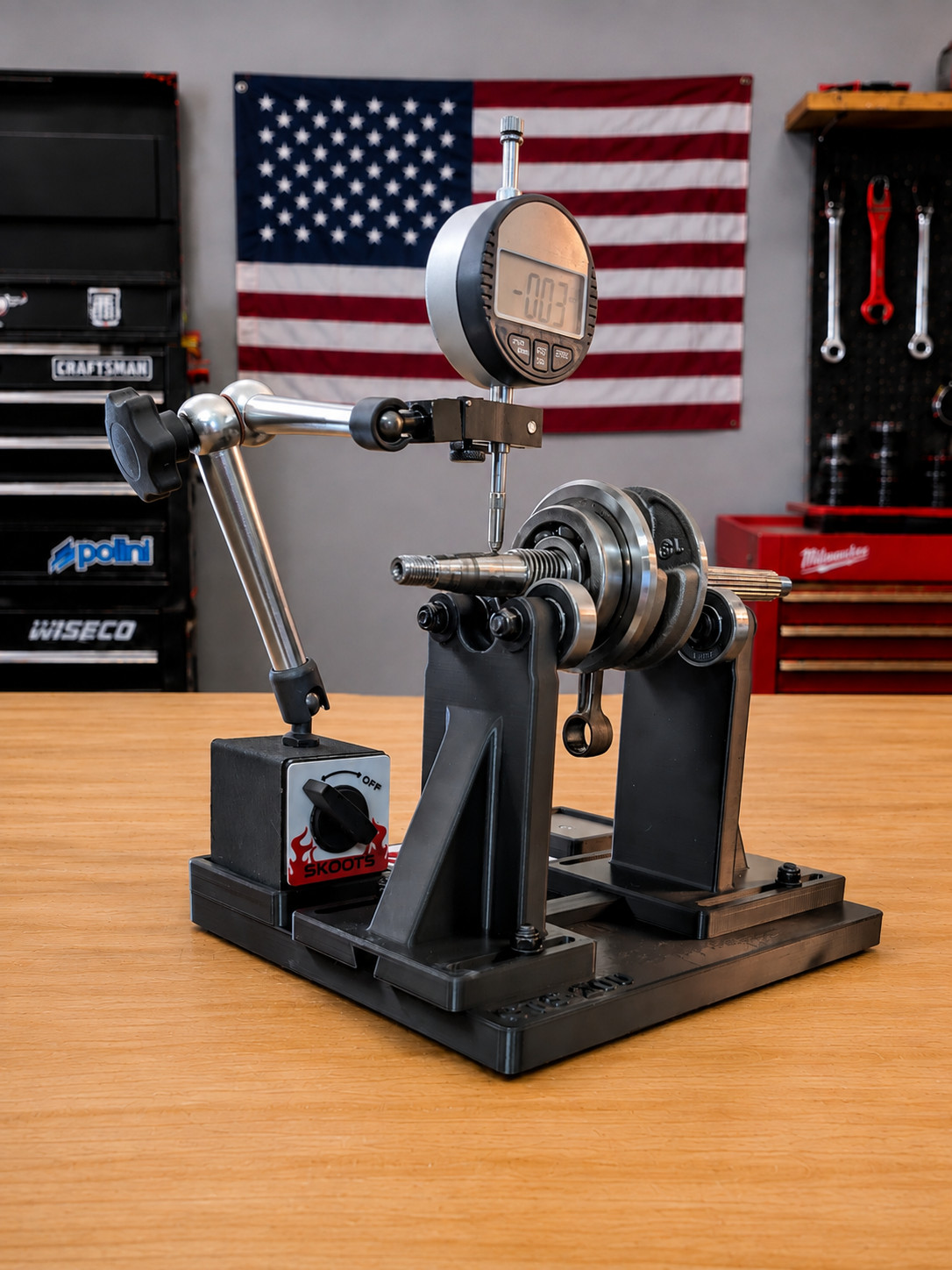

Skoots Crankshaft Truing Stand
Dial in your scooter builds with a purpose-built truing stand designed for quick setup, repeatable readings, and solid stability.
True, repeatable readings: Dual sealed ball bearings provide ultra-smooth rotation.Zero-drift indicator placement: Two steel mounting plates (left & right) let you lock your dial indicator’s magnetic base in place so it won’t creep mid-measurement. (Indicator sold separately)Built to fit your projects: Adjustable uprights accommodate a wide range of crank widths.Shop-friendly footprint: Low, rigid base keeps the crank low and stable on your bench for easy, ergonomic access.PERFECT FOR

• Measuring TIR (total indicated runout) on main journals and crank webs
• Truing pressed cranks after rebuilds
• Verifying cranks before assembly to protect cases, bearings, and seals

KEY FEATURES

• Sealed ball bearing rollers on both uprights for smooth, consistent rotation
• Left & right steel plates for dial indicator (magnetic base)—no clamps, no slip. (Indicator sold separately)
• Rigid base with non-marring silicone feet to protect your bench and prevent movement
• Works with analog or digital dial indicators (magnetic base recommended)
• Made in the Small engine crankshafts (various widths)
• Bearings: Sealed C1 ball bearings (both uprights)
• Indicator Mounting: Dual steel plates for magnetic bases
• Adjustments: Spacing adjustment to accommodate different crank sizes
• Materials: Steel / High-strength polymer
• Dimensions: L = 235.00 mm (9.252 in), W = 205.00 mm (8.071 in), H = 148.00 mm (5.827 in)

WHAT’S IN THE BOX

• Crankshaft Truing Stand Base + Adjustable Uprights (both with sealed bearings)
• Two integrated steel plates for magnetic base dial indicators (Indicator sold separately)
• All hardware is included

HOW TO USE (3 STEPS)

• Set spacing on uprights to support both main journals.
• Lock the magnetic base to the steel plate; zero the indicator on the journal or pin.
• Rotate and read TIR; adjust crank as needed until within spec.

SHIPPING, WARRANTY & SUPPORTS

• Ships from: USA
• Warranty: 1-year limited warranty against manufacturing defects
• Support: Setup help and truing tips via email after purchase

---
