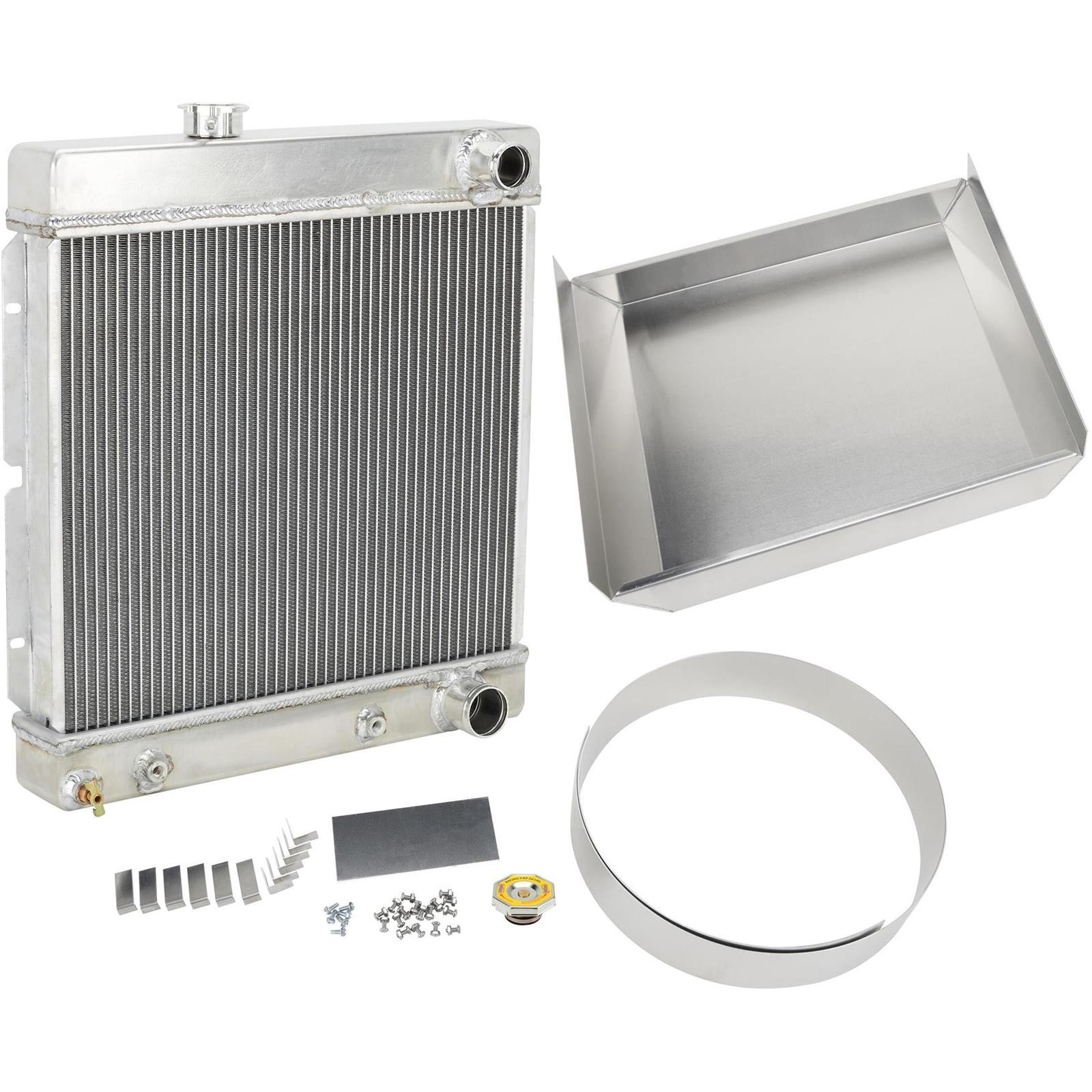

Welded construction and includes built-in transmission cooler, Measurements listed are overall which includes radiator tanks, Aluminum fan shroud, Works well with belt-driven fans, High pressure cap raises the boiling point of water. Rated for 20 PSI Small Universal Short Vertical Aluminum Radiator, RH w/Shroud Sku # 9101899 Mfr. Part # 9101899 Condition New Brand Speedway Motors Sold Kit Details
Radiator
These all aluminum, downflow radiators feature large tubes for superior cooling over stock style radiators. They are 100% welded construction and include a built-in transmission cooler.
This radiator has both the upper and lower necks on the passenger side.
Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.
Fan Shroud
These aluminum fan shroud kits work well with belt-driven fans. Simply cut an opening in the box to match the size and position of your fan. The adjustable collar will accommodate 15\"-20\" fan diameters.
- Instruction sheet
- Shroud
- Fan Ring, 3” x 65”
- Flat tab, 3” x 7”
- Brackets, 90º (6)
- Screws (6)
Learn more about the importance of using a fan and shroud with our radiators by reading our tech article. Radiator Cooling Performance.
Radiator Cap
A must have when racing! High pressure cap for radiators raises boiling point of water.
- Made of High quality steel with zinc plating
- Rated for 20 PSI
Learn more about cooling systems, how to choose the proper pressure cap, and how they work by reading our tech article. Cooling System Principles.
Specs Sold in Quantity Kit Notes 1/8" NPT fittings for transmission cooler. 1.00" wide mounting tabs on both sides. MFG. Part # 9101899 Radiator Style Single Pass Radiator Flow Direction Downflow Material Type Aluminum Inlet Location Upper passenger side Outlet Location Lower passenger side Row Quantity 2 Tube Size 1.00" Overall Width Range 18.00" to 18.99" Overall Width 18.5" Overall Height Range 20.00" to 20.99" Overall Height 20.25" Overall Thickness 3" Core Width Range 18.00" to 18.99" Core Width 18.5" Core Height Range 15.00" to 15.99" Core Height 15.875" Core Thickness 2.25" Finish Natural Cooling Fan Not Included Transmission Cooler Yes Shroud Included Yes Filler Neck Height 1.125" Inlet Size 1.5 Fan Included No Radiator Cap Included Yes Tech Support We\'re here to help before and after your purchase. If you have a question or need assistance with one of our products, please contact us through Messaging and a knowledgeable Speedway Motors team member will be happy to help. About Speedway Motors is America’s Oldest Speed Shop® and has been a trusted source for specialty rodding and racing products and friendly expert advice for more than 74 years. Founded in 1952 by “Speedy” Bill Smith – a racer and street rodder himself – Speedway has grown from a one-man operation to become the world’s largest manufacturer, distributor and retailer of street rod and racing products. Our industry-leading fast delivery is the result of same-day shipping from our state-of-the-art, centrally located 500,000 sq. ft. headquarters. Speedway’s size offers customers unmatched product selection and low pricing, while our excellent technical support and customer service have made us a recognized leader in the rodding and racing industries.
