Product Type: Starter |
Replaces: 323-373 1977081 323373 10496879 1108753 1109034 1109075 |
- Starter Type: DD |
- Volts: 12 |
- Teeth On Drive: 9 |
- Rotation: Clockwise |
- Source: Aftermarket
Show navigation Hide navigation
- Home
- About Us
- Policies
- FAQ\'s
- response
- Contact Us

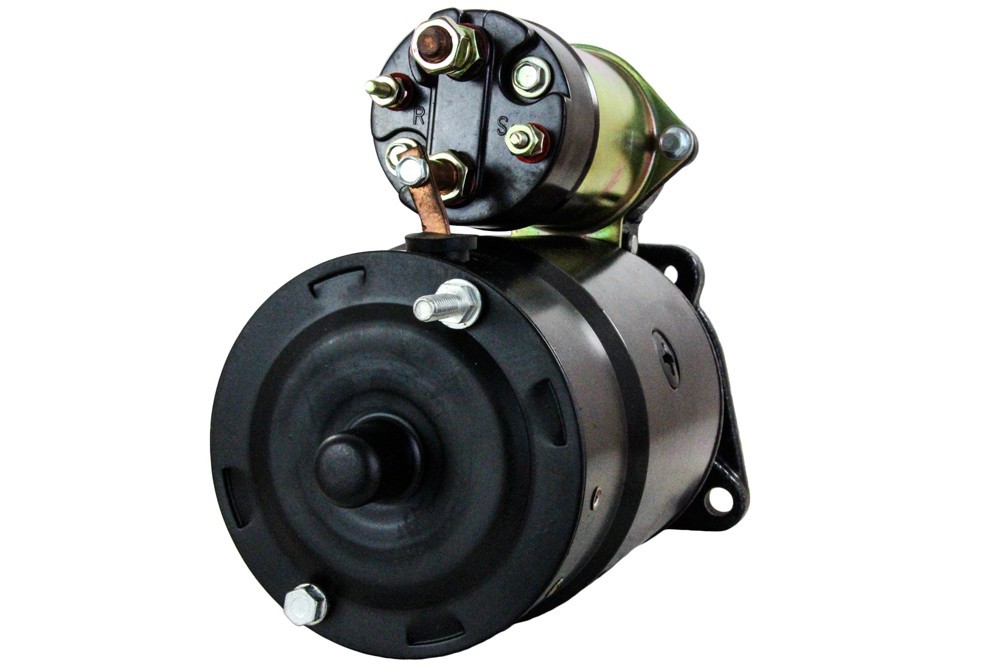

Starter 79-91 Chevrolet GMC Tiltmaster W6 W7 T5500 T6500 5.7L 6.0L V8 323-805
Replaces Part Numbers & Specifications
OEM PART NUMBERS:
• Delco: 10496879 / 10496869 / 10465154
• Delco: 1108345 / 1108369 / 1108487 / 1108792
• Delco: 1108753 / 1109032 / 1109034 / 1109060 / 1109075
• Delco: 1876550 / 1876550B
• Delco: 1977073 / 1977081 / 1977084
• Delco: 1998206 / 1998228 / 1998231 / 1998250
• Delco: 1998472 / 1998501 / 1998596
• AC Delco: 323-373 / 323373 / 323-51 / 323-59 / 323-62 / 323-805SPECIFICATIONS:
• Type: DD (Direct Drive)
• Family: Delco 10MT
• Voltage: 12V
• Rotation: Clockwise (CW)
• Tooth Count: 9
• Gear OD: 1\" / 25.4mm
• Mounting Ear 1: 3/8-16 Threaded
• Mounting Ear 2: 0.420\" Unthreaded
• Mounting Ear 3: 0.420\" Unthreaded
• Notes: High Torque
• Weight: 22.825 lbs / 10.38 kg
• Condition: NewCHEVROLET / GMC / WHITE APPLICATIONS:
• Chevy/GMC C50/C60/C70 w/5.0L/5.7L/6.0L/7.4L V8 (1979-1990)
• Chevy/GMC C5500/C6500/C7500/C80/C8500 (1990)
• Topkick/Kodiak w/5.7L/6.0L V8 (1982-1990)
• B6 Bus w/5.7L V8 (1981-1990)
• Tiltmaster W6/W7 w/5.7L/6.0L V8 (1979-1982)
• T5500/T6500/T7500 w/6.0L V8 (1991)
• P-Series w/6.0L V8 (1979-1990)
• CE/TE/HE/JE Series w/6.0L/7.4L V8 (1967-1978)
• GMC CE5000/CE6000/TE5500/TE6000/TE6500 (1967-1977)
• White Rio Division Heavy Duty w/6.0L V8 (1967-1968)
Product Notice
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
