Product Type: Starter |
Replaces: 10455515 C3017 0C3017, 0E4271, 0E42710ESV, 0E42710SRV |
- Starter Type: PMDD |
- Volts: 12 |
- Teeth On Drive: 8 |
- Rotation: Counterclockwise |
- Source: Aftermarket
Show navigation Hide navigation
- Home
- About Us
- Policies
- FAQ's
- response
- Contact Us

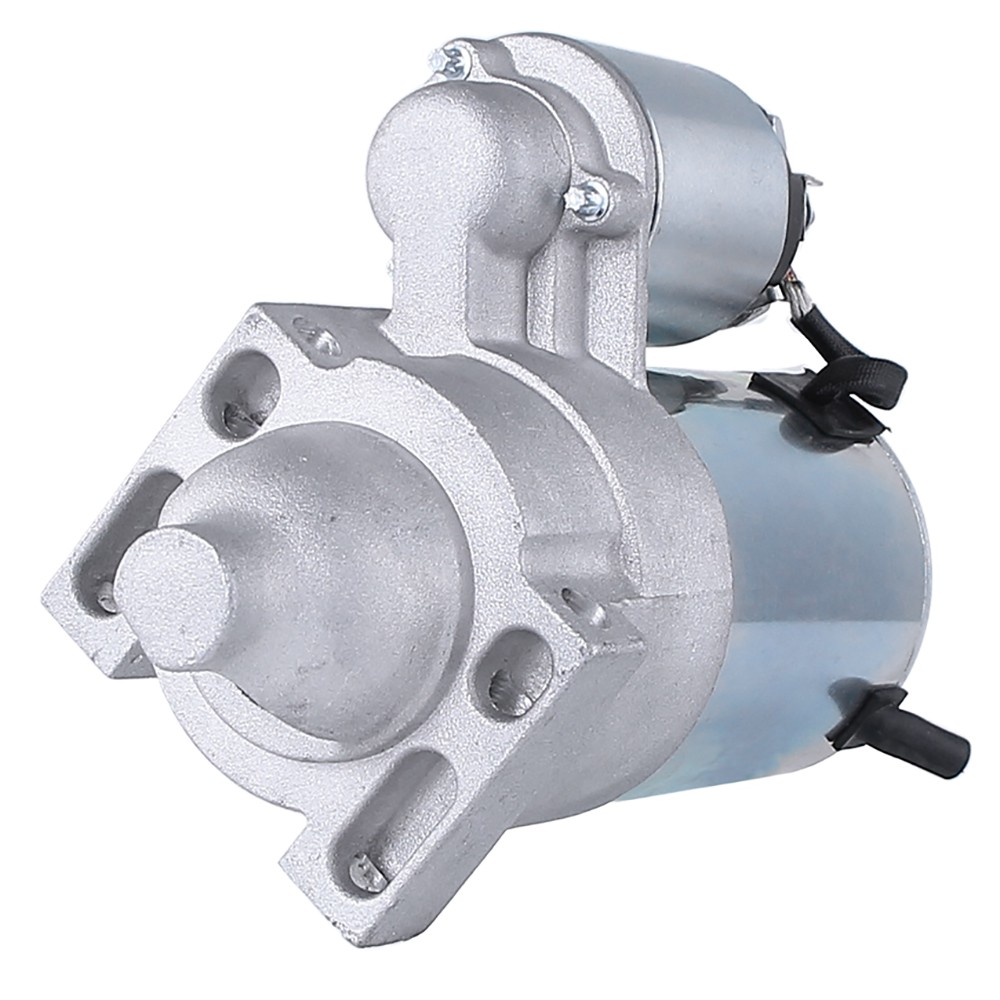

Starter Dixie Chopper XCaliber 3366 3374 3372HP Generac GTV990 33HP 12V
Replaces Part Numbers & Specifications
OEM PART NUMBERS:
• Delco: 10455515 / D10455515 / P10455515
• Generac: 0C3017 / C3017 / C-3017 / 0E4271 / E4271
• Generac: 0E42710ESV / 0E42710SRV / OE42710ESV
• Generac: 0E9323 / E9323 / OA9323 / 0D9708 / 1L12 / A0000501971
• Gehl: C3017
• Remy: RS41119SPECIFICATIONS:
• Family: Delco PMDD (SD80 Series)
• Voltage: 12V
• Rotation: CCW (Counterclockwise)
• Teeth: 8
• Gear OD: 25mm / 0.984"
• Mounting Ears: 8.0mm ID Unthreaded (x2)
• Engine Compatibility: Generac OHVI V-Twin 760cc–990cc
• Generator Range: 12–18kW Air-Cooled Standby
• Weight: 6.95 lbs / 3.16 kg
• Condition: NewKEY APPLICATIONS:
• Cub Cadet M72-GN / M72-GN33 Tank Professional Mower (Generac 28/33HP)
• Dixie Chopper Classic 2750 / 3360 / 3360HP / 3360W / 3372HP
• Dixie Chopper XCaliber 3366 / 3374 / XG2703 / Silver Eagle / LT2700
• Encore Prowler Zero Turn Mower (Generac V-Twin)
• Generac GT760 / GTH760 / GTV760 V-Twin 760cc 25-27HP OHVI
• Generac GT990 / GTH990 / GTV990 V-Twin 990cc 30-33HP OHVI
• Generac Guardian / Ultra Source 04451 / 04582 / Centurion 004987-1
Product Notice
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
