Stewart EMP WP29 12V Electric Water Coolant Intercooler Pump w Harness & Bracket For Sale - New and Used

Reprogrammed EMP WP29 High Output 12V Electric Water Pump Kit with Fused Harness and Stainless Mounting Bracket

Stewart / EMP WP29 electric water pump that has been programmed for maximum flow without the need for external speed control

12V operation

Can be used as an intercooler pump, engine coolant pump, auxiliary coolant pump and many other uses

One of the highest flowing, high pressure electric water pumps available

• This pump is designed to operate at high differential pressures

High flow and high pressure capability

• Flows over 29 gallons per minute (gpm) at 7 psi pressure

• This pump will flow continue to flow at over 25 psi differential pressure

  • Flows over 6 gpm at 26 psi (most pumps will have long since stopped flowing at these pressures)

• Don\'t be fooled by flow claims from other pumps that show the open to atmosphere peak flow. Make sure you compare flow at the flow restriction that exists in your cooling system.

Features:

• High current, high efficiency DC brushless electric motor
• Long life design (10,000+ hour target lifespan)
• 1\" inlet and outlet connection fittings
• Cast 413 aluminum alloy housing
• 9-18 volt DC operating range
• Variable speed capability via J1939 (requires CAN input to
• This pump has been programmed for a maximum current limit of 25 amps and a maximum pump speed of 4600 RPM. That is the maximum performance capability of this pump.
• The pump is configured to operate stand-alone (no external controller).
• In the absence of a CAN signal, the pump will behave as a simple on/off control pump.
  • The built-in pump controller will wait 0.1 seconds on initial start to check for the CAN signal. When the pump controller does not see the CAN signal for 0.1 seconds it will then go into stand-alone operating mode (simple on/off control mode).
  • In stand-alone operating mode the pump operates at the default speed of 4600 rpm (maximum rpm)
  • Due to the short (0.1) default time-out, these software settings are not well suited to external control applications but we can reprogram it to other settings as desired
  • Need different settings programmed in the pump - contact us so we can see if we can provide what you need

Manufacturer:

• EMP (Stewart Components)

Model #:

• WP29 (also referred to as E2512A or WP32)

Part #:

• 1030002286P0020 rev B

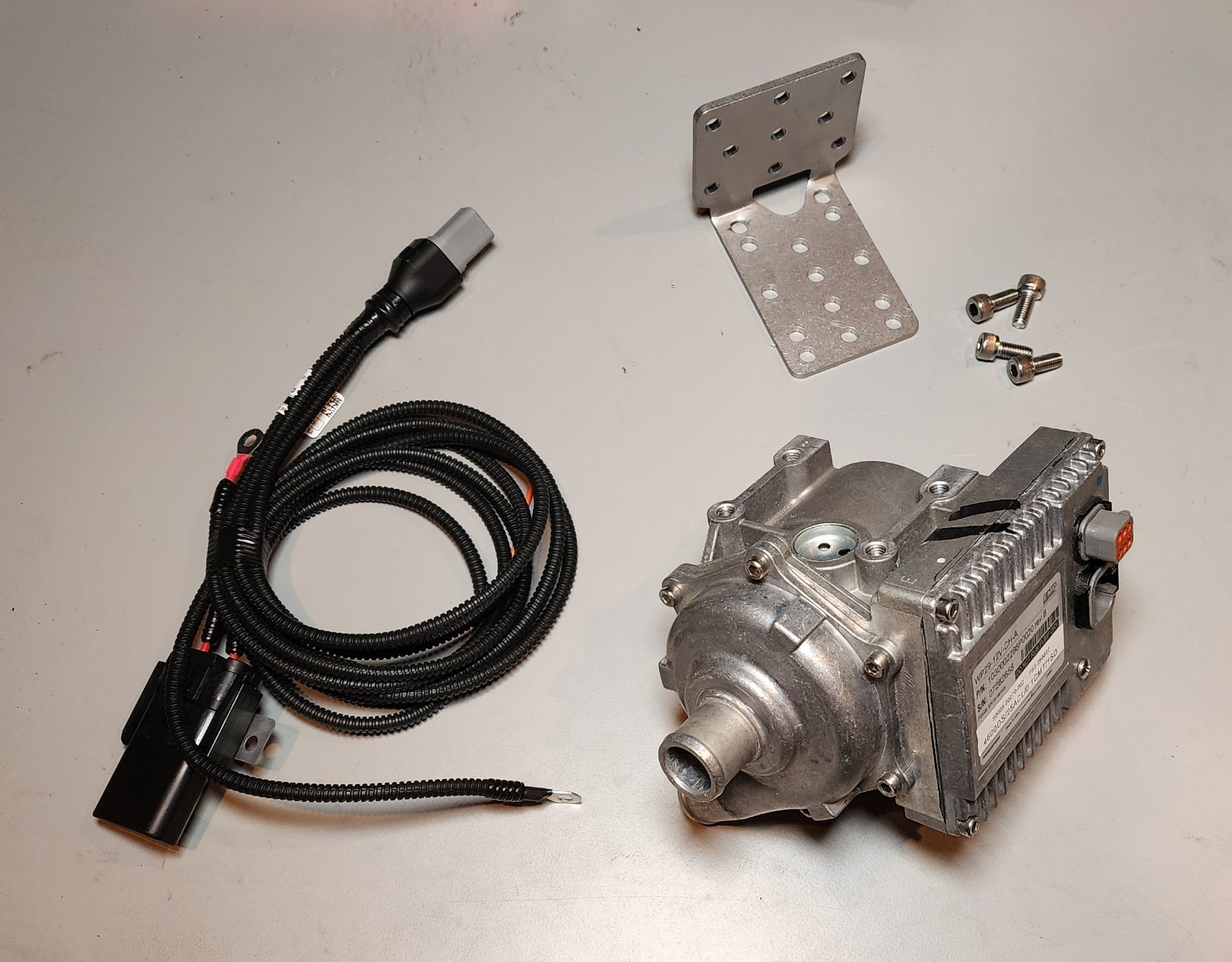

Included:

• WP29 pump
• 304 stainless steel 90 degree, heavy duty 0.187\" (4.75 mm) thick mounting bracket and mounting hardware - supports six different mounting configurations
• Heavy duty 60\" (5\') 12AWG 30A fused harness with strain relief
• Communications port plug (this plug seals the CAN communications port when it is not going to be old inventory. 0 run time hours
• Pump has been reprogrammed for maximum flow without external CAN inputs required. Label with settings part number and date applied to pump to document current pump status.
• Pump has been flow tested to verify flow rate and
• Due to age of the inventory, this pump is no longer covered under the Stewart/EMP warranty
• We (PSS) offer a 90 day or 500 operating hours (run-time stored in pump) warranty on the pump
• Repair or replace at PSS discretion
• Warranty void if maximum operating temperature or voltage is exceeded.
• Warranty void if allowed to operate dry (with no fluid) or other installation requirements not followed
• Buyer responsible for shipping in both directions

Returns:

• 30 days with no sign of use or damage
  • Buyer responsible for return shipping and all parts must be returned

Country of origin:

• Made in the USA
