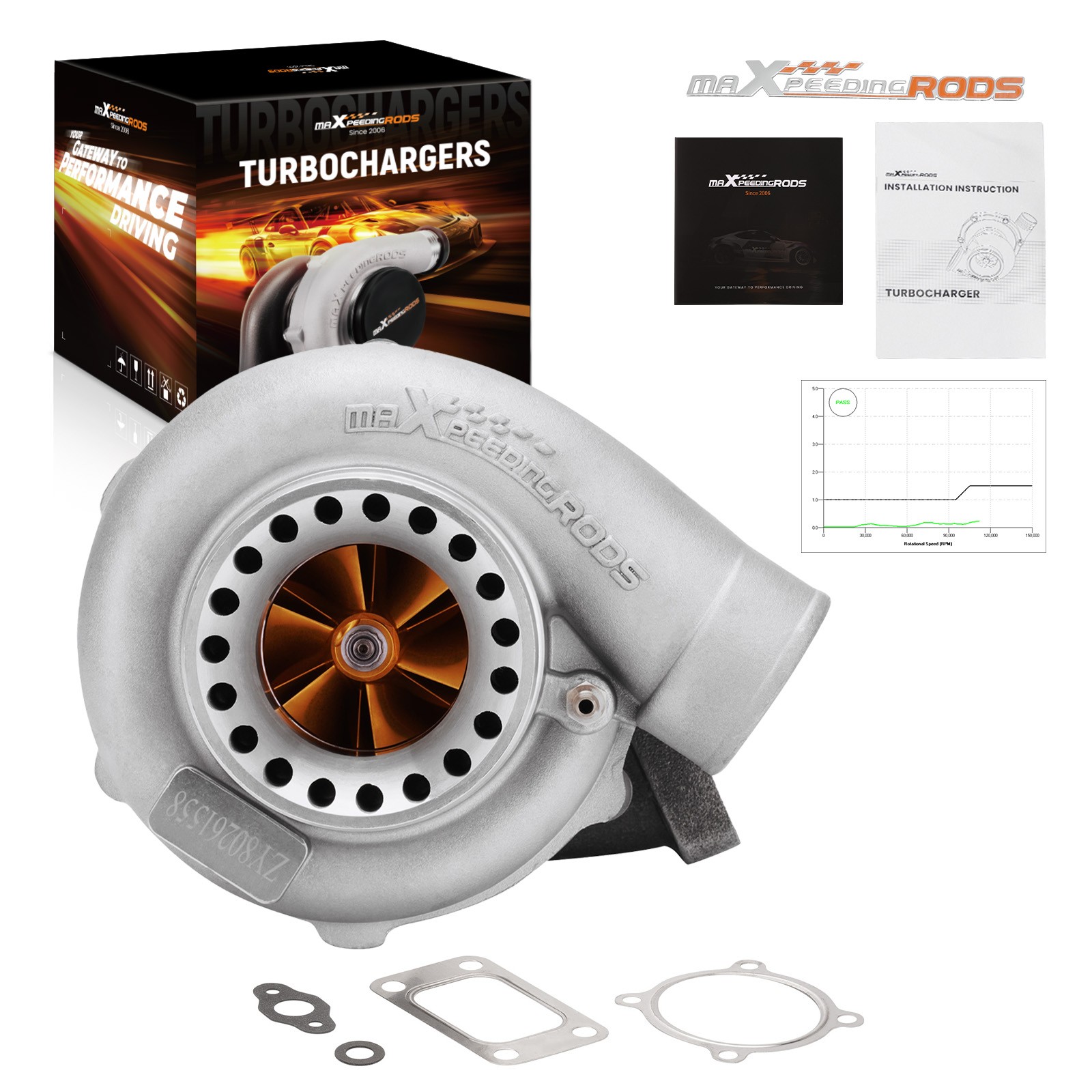

Street Billet GT35 GT3582 Turbo Cast Turbine T3 4-Bolt Turbocharger 3.0L-6.0L
MostCompetitive Price
Easy ReturnQuick, Simple
Manufacturer We know our products
Guaranteed FitmentAlways the correct part
Description
All modifications must be installed by licensed mechanics and in compliance with your local modification style="text-align:center">Street Billet Compressor Wheel GT3582 Universal Replacement for all 4/6 cylinder and 2.5L-6.0L engines
Capable of Boosting Horse Power up to 600HP
*Notice:Please confirm that there is enough space in your car to install this turbo before Side:
Exhaust Inlet Flange: T3 Flange
Exhaust Outlet Flange: 4-Bolt
Turbine Trim: 84.2
Turbine A/R: 0.63
Turbine Inducer Diameter: 68mm
Turbine Exducer Diameter: 62.4mm
Compressor Side:
Compressor Trim: 56.9
Compressor A/R: 0.7
Compressor Inducer Diameter: 61.5mm
Compressor Exducer Diameter: 81.5mm
Compress Inlet Size(Air intake): 4 inch (103.5mm)
Compressor Outlet Size: 2.5 inch (63.6mm)
Bearing Type: Wet Float
Thrust bearing: 270 degree
Cooling Type: Water + Oil Cooling
Horse Power: Up to 600HP
Turbo Type: Individual
Universal Fitment: Yes
Finish: Matte
Wastegate: W/O Wastegate
Oil feed/inlet: M10*7/16-24
Oil drian/outlet: M14.1 & 2*M8*1.25
Water inlet/outlet: M14* 1.5
Maximum PSI: 22
Condition: 100% Brand New
Accessories: You will get exactly as shown as picture above
Pakage Size: 26 x 25 x 23 cm
Pakage Weight: 8350g
Features
1. Turbine housing: Silicon-Molybdenum alloy steel - High temperature resistance, highly stable and ductile, corrosion and crack resistant, increases Thermal Stability and reliability.
2. Turbine Wheel: K419 alloy - High temperature resistance, efficiently converts engine exhaust gasses into kinetic energy, resists thermal breakdown for smooth reliable operation.
3. Billet Compressor Wheel: Forged billet aluminum CNC machined compressor wheel - High efficiency, fast response, lower fuel consumption, smooth operation.
4. Oil Seal: High-speed steel oil seal ring - Abrasion and heat resistant, protects bearings, prevents oil leakage and smoking.
Notice
* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Gasoline car must install a water cooling device to avoid overheating.
* Ensure exhaust outlet are well sealed by welding
* The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.
* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
**Street Billet Compressor Wheel GT3582 Turbocharger T3 4-Bolt**• Up to 600HP, fits all 4/6 cylinder 2.5L-6.0L engines• T3 inlet flange, 4-Bolt exhaust outlet, water + oil dual cooling• Silicon-Molybdenum alloy steel turbine housing: heat & corrosion resistant, crack proof• K419 alloy turbine wheel: efficient exhaust energy conversion, thermal breakdown resistant• Forged billet aluminum CNC compressor wheel: high efficiency, fast response, lower fuel consumption• High-speed steel oil seal ring, wet float bearing• 100% brand new, universal fitment, matte finish• 2 Years Warranty
