Supertech GDE-AU18T-12 Manganese Bronze Valve Guides Audi VW 1.8T 2.7T Set 12 For Sale - New and Used

- AUTHORIZED DEALER
- AUTHENTICPART

Part Brand: Supertech

Part Number: GDE-AU18T-12

Vehicle Fitment

• 1997–1999 Audi A4 B5 (1.8T 20V, Engine Code: AEB, I4 Turbo, Longitudinal, Quattro/FWD)
• 1997–1999 Volkswagen Passat B5 (1.8T 20V, Engine Code: AEB, I4 Turbo, Longitudinal, FWD/AWD)
• 1999–2004 Audi S4 B5 (2.7T 30V, Engine Code: APB/AGB, V6 Twin Turbo, Quattro AWD)
• 1999–2004 Audi A6 C5 (2.7T 30V, Engine Code: APB, V6 Twin Turbo, Quattro AWD)
• 2001–2005 Audi Allroad Quattro C5 (2.7T 30V, Engine Code: APB, V6 Twin Turbo, Quattro AWD)
• Compatible with all Audi/VW 1.8T 20V and 2.7T 30V engines using a 6mm valve stem and 11.0mm bore head guide bore — verify engine code before ordering

Fitment Notes

• Set of 12 — sufficient to replace one full bank of valve guides on the 2.7T 30V V6, or one complete 1.8T 20V head (10 required) with 2 spares
• The 1.8T 20V (AEB) uses 10 valve guides per engine (5 intake + 5 exhaust); for a complete 1.8T guide replacement, 10 are required — the -12 set provides 2 extra guides as backup
• The 2.7T 30V V6 uses 30 valve guides total (15 per head / bank); three sets of 10 or two sets of 12 plus 6 individual guides are needed for a full engine replacement
• Standard outer diameter (11.045mm) — direct-fit for unmodified head bores; an oversize version (GDE-AU18T-OS, 11.075mm OD) is available for worn or line-bored head bores
• Inner bore accommodates 6mm valve stems used on both intake and exhaust valves for the 1.8T 20V and 2.7T 30V
• Professional machine shop installation required — guides must be pressed out and pressed in to correct depth

Features

• Precision-machined from high-quality Manganese Bronze alloy — superior wear resistance and thermal conductivity compared to OEM cast iron guides
• Manganese Bronze provides approximately 3× better thermal transfer than standard guides, drawing heat away from valve stems and into the cylinder head
• Tighter dimensional tolerances than OEM guides ensure correct stem-to-guide clearance for improved valve alignment and sealing under high-RPM and high-boost conditions
• Recommended for use with Supertech black nitride or Inconel valves — optimized pairing with low-friction nitride valve stems for reduced wear
• Fits both intake and exhaust positions — the same guide serves both functions on the 1.8T 20V and 2.7T 30V
• Oversize version (GDE-AU18T-OS, 11.075mm OD) available for cylinder heads requiring bore repair or oversize guide
• Part Number: GDE-AU18T-12
• Material: Manganese Bronze
• Outer Diameter (OD): 11.045mm
• Inner Bore (ID): 5.98mm (for 6mm valve stems)
• Length: 36.15mm
• Position: Intake and Exhaust (same guide for both positions)
• Engine Application: Audi/VW 1.8T 20V (AEB) / 2.7T 30V (APB/AGB)
• Quantity: 12 per set

Included Components

• 12x Supertech Manganese Bronze Valve Guides (11.045mm OD × 36.15mm length, 5.98mm ID)

Product Description

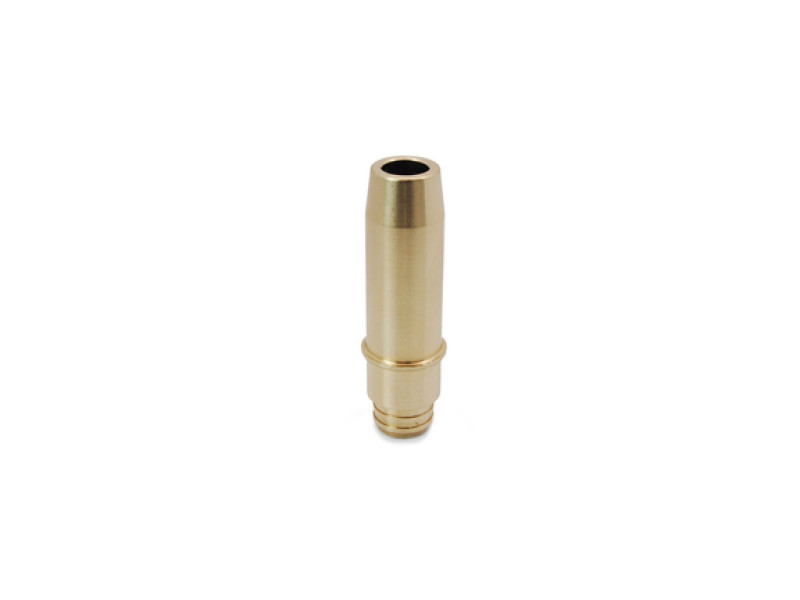

The Supertech GDE-AU18T-12 is a set of 12 precision-machined Manganese Bronze valve guides engineered for the Audi/Volkswagen 1.8T 20V (AEB) and 2.7T 30V (APB/AGB) engines, covering the Audi A4 B5, VW Passat B5, Audi S4 B5, Audi A6 C5, and Audi Allroad C5. The 12-piece count makes this set particularly well-suited for 2.7T 30V V6 builds where partial bank replacement or a convenient quantity margin is needed — the 1.8T 20V requires 10 guides per engine, and the 2.7T 30V V6 requires 30 total. The Manganese Bronze alloy delivers approximately three times the thermal conductivity of OEM cast iron guides, significantly improving heat dissipation from valve stems into the cylinder head during sustained high-boost or high-RPM operation.

At 11.045mm outer diameter and 5.98mm inner bore, these guides are direct-fit replacements for unmodified head bores and accommodate the 6mm valve stems used on both intake and exhaust valves for all 1.8T 20V and 2.7T 30V engines. The same guide serves both intake and exhaust positions. For heads with worn or damaged guide bores requiring line boring, the oversize version GDE-AU18T-OS (11.075mm OD) is available separately. Professional machine shop equipment is required for proper installation. These guides are optimally paired with Supertech\'s black nitride valves, where the smooth nitride stem finish and the Manganese Bronze bore material work together to minimize wear and maintain precise stem-to-guide clearance over the life of the build.

*Parts are for USA spec vehicles, please contact us to verify fitment on JDM & international models.
