TTS Mastertune Bluetooth Canbus - 2000020:
$459.95

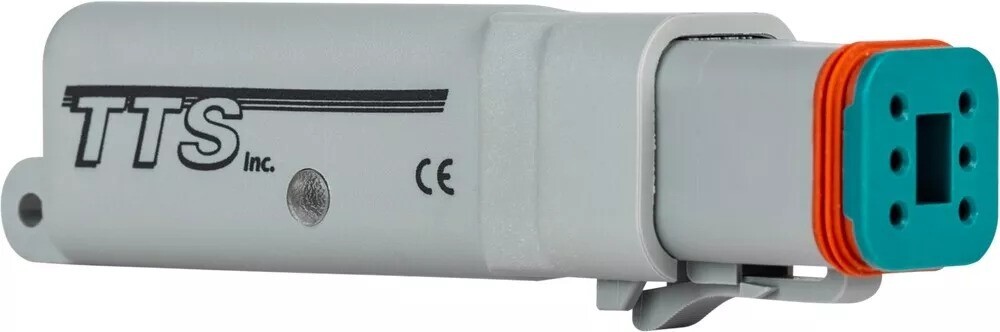

TTS Mastertune Bluetooth Canbus - 2000020
About this item

The TTS Bluetooth MasterTune System is designed specifically to tune Delphi-equipped Harley-Davidson® motorcycles `12-Up, and includes four powerful Windows®-based programs
Features:
TTS BLUETOOTH MASTERTUNE SYSTEM FOR V-TWIN
The TTS Bluetooth MasterTune System is designed specifically to tune Delphi-equipped Harley-Davidson® motorcycles and includes four powerful Windows®-based programs.
Providing a 2-way communication between the bike’s ECM and a Windows based laptop/PC.
The interface also provides stand-alone data logging for diagnostic and calibration support.
The MasterTune software package can be downloaded for free at MasterTune.net/GettingStarted.
MasterTune: An ECM calibration development tool designed specifically for use on all Delphi-equipped Harley Davidson motorcycles from `12-22:
MasterTune licensing is associated with the programming interface. Can be licensed to program either one or two vehicles
Communications interface will “lock” to the vehicle the first time it is used for programming
Choose from a wide selection of base maps
Save and Restore current calibration (factory or other)
Modify many critical ECM tables and constants
Preset limits to prevent adjusting values beyond reasonable settings.
Stores original and the last table saved edits so tuner can return to previous configuration
Graph tables in 2D or 3D
Quickly compare changes in tables
Print table graphs and table values
Supports tuning using wideband O2 sensors
Correct speedometer calibration
Change primary ratio
Calibration adjustments:
Spark advance, front and rear
Knock control
Volumetric efficiency, front and rear
Rev limit
AE/DE fueling
EITMS settings
Idle speed
Start/Warmup fueling
Primary gearing changes
Fuel injector size
Engine Displacement
AFR/Lambda target
DataMaster: Display and record all your bike’s data as well as various calculated channels. This data can be viewed in real time, recorded, and played back. It can also graph in 2D or 3D lines:
Records vehicle engine data while riding or stationary
Retrieve, Check and Clear diagnostic codes.
Stores historic and current DTC’s
Playback of recorded data allowing viewing of key engine operating parameters
Clear DTC’s once repair is completed
Utilize VTune Histogram for tuning development
View real time engine parameters
Playback recorded data
Analyze Camshaft settings
Analyze IAC warmup settings
Simulate dyno and ¼ mile results
VTune: Works with all Delphi-equipped Harley Davidson motorcycles that are equipped with O2 sensors. VTune works by combining your current calibration with recorded data from DataMaster or Flight Recorder and creating a new optimized calibration:
One click tuning
Calibrating VE tables
Calibrating spark tables
Calibrating EGR correction tables
Verifying injector sizing
Flight Recorder: Allows for on-vehicle data recording with now attached PC.
The Flight Recorder is set up using an easy-to-follow wizard while the communications interface is attached to a computer.
After setup is complete you can collect up to 10 hours of data. After uploading data into DataMaster for playback and analysis and used with VTune for automatic tuning:
On vehicle data recording without attached computer
Record as much as 10 hours of data
Select from several DataMaster-compatible data streams (including VTune data)
Configurable RPM at which to start recording
Automatically start and stop recordings
All TTS MasterTune software is compatible with 32- and 64- bit versions of Windows 7 and newer
Bluetooth connection. No cables required to connect to computer
Made in USA
MasterTune BlueTooth Communications Interface
Interface marries to the ECM during the first ECM flash. Further calibration development can only be performed on that ECM
Vehicle diagnostics and data logging only, can be used on any compatible vehicle, even if already married to an ECM
MasterTune interface communicated to the PC via a wireless Bluetooth connection.
Includes support loop to attach the interface to the bike via a wire tie
Fitment
- Harley Davidson
2021 - XG 500 Street
2021 - XG 750 Street
2021 - XG 750A Street Rod
2020 - FLDE Softail Deluxe
2020 - FLFB Softail Fat Boy
2020 - FLFBS Softail Fat Boy 114
2020 - FLHCS Softail Heritage Classic 114
2020 - FLHC Softail Heritage Classic
2020 - FLHR Road King
2020 - FLHRXS Road King Special
2020 - FLHTCUTG Tri Glide Ultra Classic
2020 - FLHT Electra Glide
2020 - FLHTKSE CVO Limited
2020 - FLHXS Street Glide Special
2020 - FLHXSE CVO Street Glide
2020 - FLHX Street Glide
2020 - FLSB Softail Sport Glide
2020 - FLSL Softail Slim
2020 - FLTRXS Road Glide Special
2020 - FXBB Softail Street Bob
2020 - FXBRS Softail Breakout 114
2020 - FXFBS Softail Fat Bob 114
2020 - FLTRX Road Glide Custom
2020 - FLTR Road Glide
2020 - FLTRK Road Glide Limited
2020 - XL1200CX Roadster
2020 - FLHTCUTGSE CVO Tri Glide
2020 - FXDRS Softail FXDR 114
2020 - XL883N Iron 883
2020 - XL1200NS Iron 1200
2020 - FXLR Softail Low Rider
2020 - FXLRS Softail Low Rider S
2020 - XL1200X Forty-Eight
2020 - XG 500 Street
2020 - XG 750 Street
2020 - XG 750A Street Rod
2020 - FLHTK Electra Glide Ultra Limited
2020 - FLTRXSE CVO Road Glide
2019 - XG 500 Street
2019 - XG 750 Street
2019 - XG 750A Street Rod
2019 - XL883L Super Low
2019 - XL883N Iron 883
2019 - XL1200NS Iron 1200
2019 - XL1200C Sportster 1200 Custom
2019 - XL1200X Forty-Eight
2019 - XL1200XS Forty Eight Special
2019 - XL1200CX Roadster
2019 - FLDE Softail Deluxe
2019 - FLFB Softail Fat Boy
2019 - FLHC Softail Heritage Classic
2019 - FLFBS Softail Fat Boy 114
2019 - FLHCS Softail Heritage Classic 114
2019 - FLHR Road King
2019 - FLHX Street Glide
2019 - FLTR Road Glide
2019 - FLHRXS Road King Special
2019 - FLHTCU Electra Glide Ultra Classic
2019 - FLHXS Street Glide Special
2019 - FLTRXS Road Glide Special
2019 - FLTRU Road Glide Ultra
2019 - FLHTKL Electra Glide Ultra Limited Low
2019 - FLHTK Electra Glide Ultra Limited
2019 - FLHTCUTG Tri Glide Ultra Classic
2019 - FLHTKSE CVO Limited
2019 - FLHXSE CVO Street Glide
2019 - FLHT Electra Glide
2019 - FLTRXSE CVO Road Glide
2018 - FLHR Road King
2018 - FLHRXS Road King Special
2018 - FLHX Street Glide
2018 - FLHXS Street Glide Special
2018 - FLHTCU Electra Glide Ultra Classic
2018 - FLHTK Electra Glide Ultra Limited
2018 - FLHTKL Electra Glide Ultra Limited Low
2018 - FLTR Road Glide
2018 - FLTRU Road Glide Ultra
2018 - FLTRXS Road Glide Special
2018 - XG 500 Street
2018 - XG 750 Street
2018 - XG 750A Street Rod
2018 - FLHXSE CVO Street Glide
2018 - FLHTKSE CVO Limited
2018 - FLHTCUTG Tri Glide Ultra Classic
2018 - XL883L Super Low
2018 - XL883N Iron 883
2018 - XL1200C Sportster 1200 Custom
2018 - XL1200CX Roadster
2018 - XL1200X Forty-Eight
2018 - FXBB Softail Street Bob
2018 - FXFB Softail Fat Bob
2018 - FXLR Softail Low Rider
2018 - FLSB Softail Sport Glide
