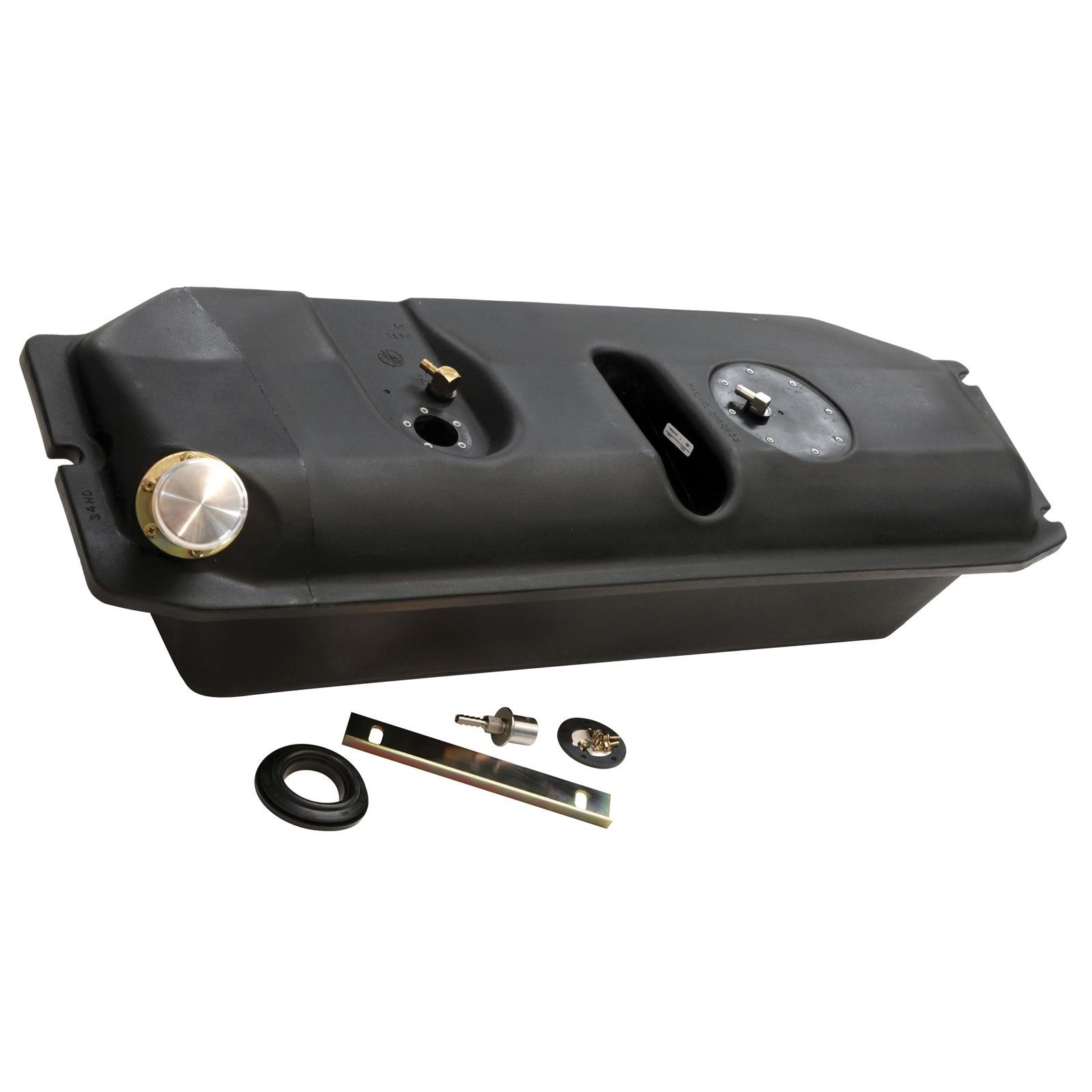

Designed to fit the 1933-1934 Ford cars, Features a one-piece, heavy wall polyethylene construction, Exclusive baffle-tunnel is designed to protect your sending unit, A unique design minimizes sloshing and connect the top of the tank to the bottom, Includes a bolt-on steel neck which can be painted to match your car Tanks Inc 34PSN 1933-1934 Ford Car Poly Gas Tank Sku # 91076063 Mfr. Part # 34PSN Condition New Brand Tanks Sold Each Details
This 1933-1934 Ford car tank features a one-piece, heavy wall polyethylene construction with exclusive baffle-tunnel to protect your sending unit, minimize sloshing and connect the top of the tank to the bottom to form a Strong-No-Sag unit.
This tank also features: top mounted pick-up tube, internal baffling, roll over vent valve, sender mount for all aftermarket senders, leak tested, and billet cap with o-ring seal.
Bolt-on steel neck allows painting to match your car. Threaded blind metal inserts. 16 gallon capacity with billet cap.
42-1/4" x 14-1/2" x 10-1/4"
This item is being shipped to you directly from the manufacturer and is subject to an increased handling time. Delivery estimates that include the handling time are displayed on the "Shipping and Payments" tab. Specs Sold in Quantity Each MFG. Part # 34PSN Fuel Tank Style Custom Replacement Fuel System Type EFI | Carb Fuel Type Gasoline Capacity 16 gallons Material Type Polyethylene Finish Natural Color Black Sending Unit Included No Fuel Pump Included No Tank Straps Included No Overall Length 42.25" Overall Width 10.25" Overall Height 14.5" Baffled Yes Filler Neck Included Yes Fuel Capacity Range 15.00-19.99 Gallons Reviews I would buy it again Rated by Plucky on July 30, 2026
Summary: Great fit
Yes, I recommend this product.
I would buy it for my other project. Rated by Plucky on May 25, 2026
Summary: Great fit and easy to install.thanks
Yes, I recommend this product.
not very happy! Rated by rvintage on January 10, 2018
Summary: Purchased the above gas tank for my 1934 Ford Tudor. Install was good. Problem is the baffle does not control the gas in the tank. Make a tight left turn and engine dies do the lack of fuel. Gas gauge swings to empty. Tank has over 10 gals. It appears to make it work properly a full gas tank is needed at all times. not very satisfactory.Lot of questions, need answers.RGrimes
Not installed yet, Rated by vintage Grimes on December 07, 2017
Summary: Rec'd as scheduled and all parts were there. Installed all parts including the sender I rec'd earlier with my new gauges. Will let you know how the tank installation turns out, once it is done. Looking forward to completion and the added fuel capacity. The current 11 gal. tank does not get you very far.
Yes, I recommend this product.
Sending unit mounting pattern did not math Rated by sauterindy on September 02, 2016
Summary: I got this tank to use in a 30 model A that was channeled so non standard mounting application, like the tank but the stewart warner fuel float assy (speedway part 665385B) did not match up to the pattern on the tank. Had to drill out holes on the float mechanism and elongate several to make fit. Not sure if tank or float at fault.
Yes, I recommend this product.
