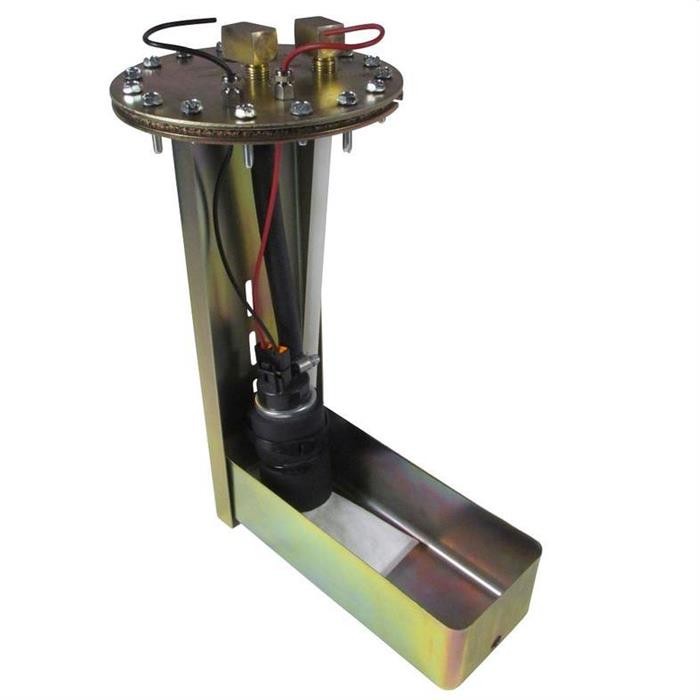

You assemble to the depth of your tank and install, All Metal Components are Heavy Gauge (Yellow Zinc Plated Steel), Reservoir Tray Included, 1/4\" NPT Supply Line, 1/4\" NPT Return Line Tanks PA-2 Deluxe Fuel Pump Module, 190 Lph, Up to 430 hp Sku # 910851472-190 Mfr. Part # PA-2 Condition New Brand Tanks Sold Each Details
For over 20 years Tanks Inc has been retrofitting non EFI gas tanks with internal fuel pumps using their PA Series EFI Gas Tank Conversion Module. This In-Tank Fuel Pump module can be used to retrofit an internal fuel pump into your original gas tank.
This kit gives you everything that you need to install an internal fuel pump into nearly any tank. The PA Series fuel pump kit features a reservoir tray that eliminates fuel pump starvation that is common on non-baffled tanks. A properly installed internal fuel pump will essentially eliminate any issues that are common on external fuel pumps such as vapor lock and cavitation.
The pumps listed are capable of running up to 100 PSI and they will deliver a varying amount of fuel (gallons per hour) depending on the pressure. We have recorded estimated max HP ratings at 60, 70, and 7 PSI as a guide to finding the correct pump for your particular installation (click the application guide). See below for Installation Instructions.
Note: Our kits do not include fuel pressure regulators.
Note: All flow rates are rated at 13.5 volts.
Note: Assembly requires a minimum tank depth of 6 inches.
Note: Maximum tank depth of 11.5 inches with no modification
- You assemble to the depth of your tank and install
- All Metal Components are Heavy Gauge (Yellow Zinc Plated Steel)
- Reservoir Tray Included
- 1/4\" NPT Supply Line
- 1/4\" NPT Return Line
- 1/4\" NPT Vent Opening
- In-Tank Fuel Pump Wiring Harness
- Up to 100 PSI Rating
- Threaded Heavy Gauge In-Tank Mounting Ring
- Heavy Gauge Mounting Plate
- Adjustable Height Support Arm
- Genuine Walbro Fuel Pumps are supplied
We use Walbro high-performance pumps in all of our fuel injection modules. Walbro (TI Automotive) is an OE validated pump manufacturer that supplies products for two-thirds of the vehicles produced around the world today. Based on our testing we believe that Walbro offers the highest quality pump on the market. These OE quality performance pumps are better at hot fuel handling and are designed with an internal bypass channel to offer better recovery from aeration compared to other pump manufacturers. We offer multiple operating ranges in order to supply up to approximately 1000 horsepower.
Specs Electric Fuel Pump Type In Tank Maximum Pressure 100 psi Electric Fuel Pump Inlet Fitting(s) 1/4" NPT Female Electric Fuel Pump Outlet Fitting(s) 1/4" NPT Female MFG. Part # PA-2 Reviews Great Rated by Builder on February 26, 2026
