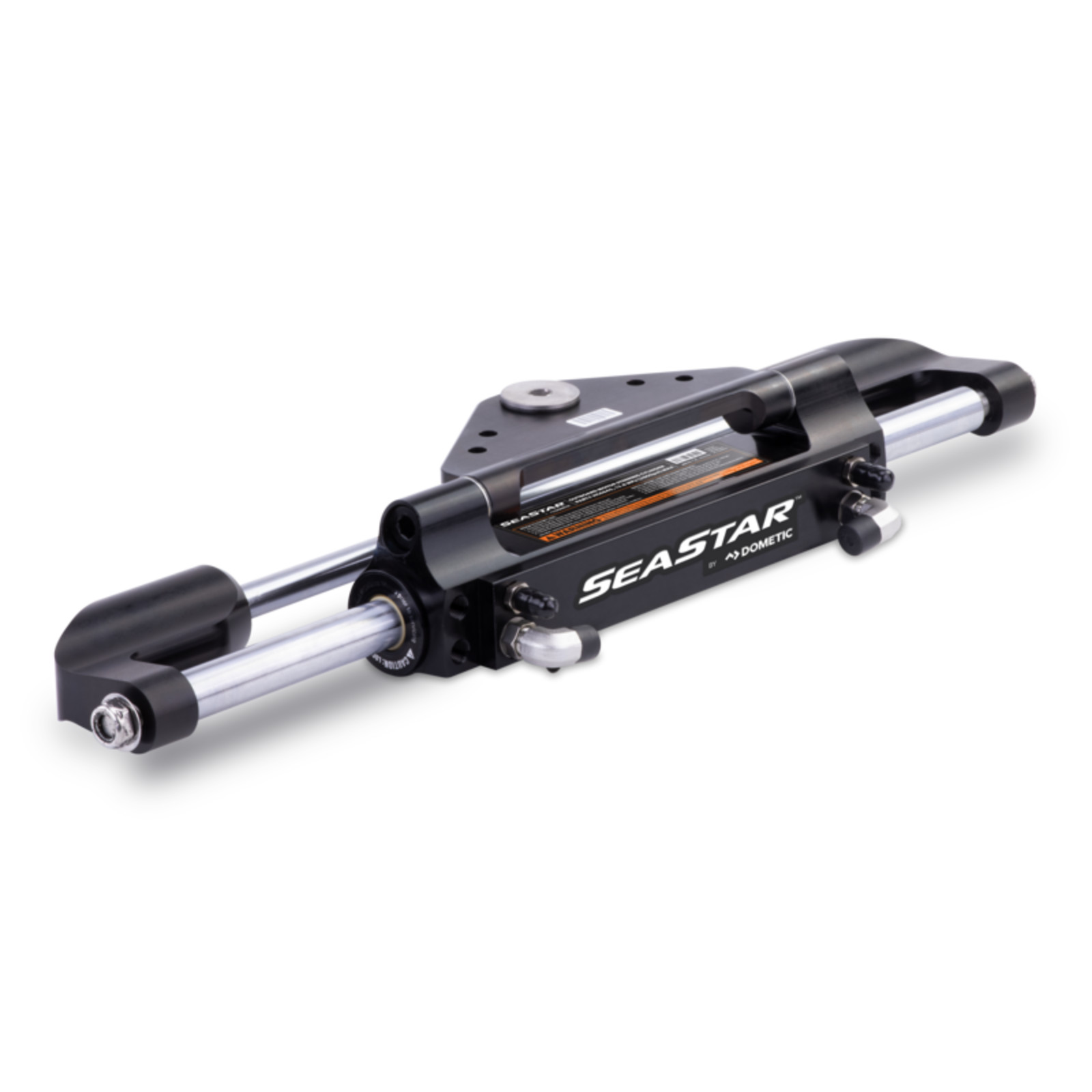

Tournament Outboard Cylinder SeaStar Solutions HC6845
The Dometic SeaStar Tournament Cylinder is a heavy duty cylinder designed for high performance, multiple engine applications.Extreme heavy duty cylinders are designed for primarily high performance, multiple engine applications. The Dometic SeaStar Tournament Cylinder is also available for single engine applications.

• Heavy duty universal cylinder
• For high performance applications with multiple engines
• Superior corrosion resistance
• New pivot plate design, for smooth articulation and a sealed joint
• Adjustable 90 degree stainless steel ORB elbow fittings
• Robust wipers, seals, barrel, shaft and support brackets
• Bolt-on stainless steel tie bar plates product depth: 5 3/4\"
• Dimensions product width: 22 7/8\"
• Net weight: 13.30 lbs
• Fluid volume: 8.34 temperature min: -18.00 °C
• Operating temperature max: 77.00 °C
• Actuation Stroke Length: 8.00\"
• Horse Power Rating: 350.00 hp
• Maximum Pressure rating: 1500.00 psi

Additional:

• Color: Black
• Port Type: ORB
• Shaft Diameter: 0.88\"
• Cylinder Type: Outboard

---
