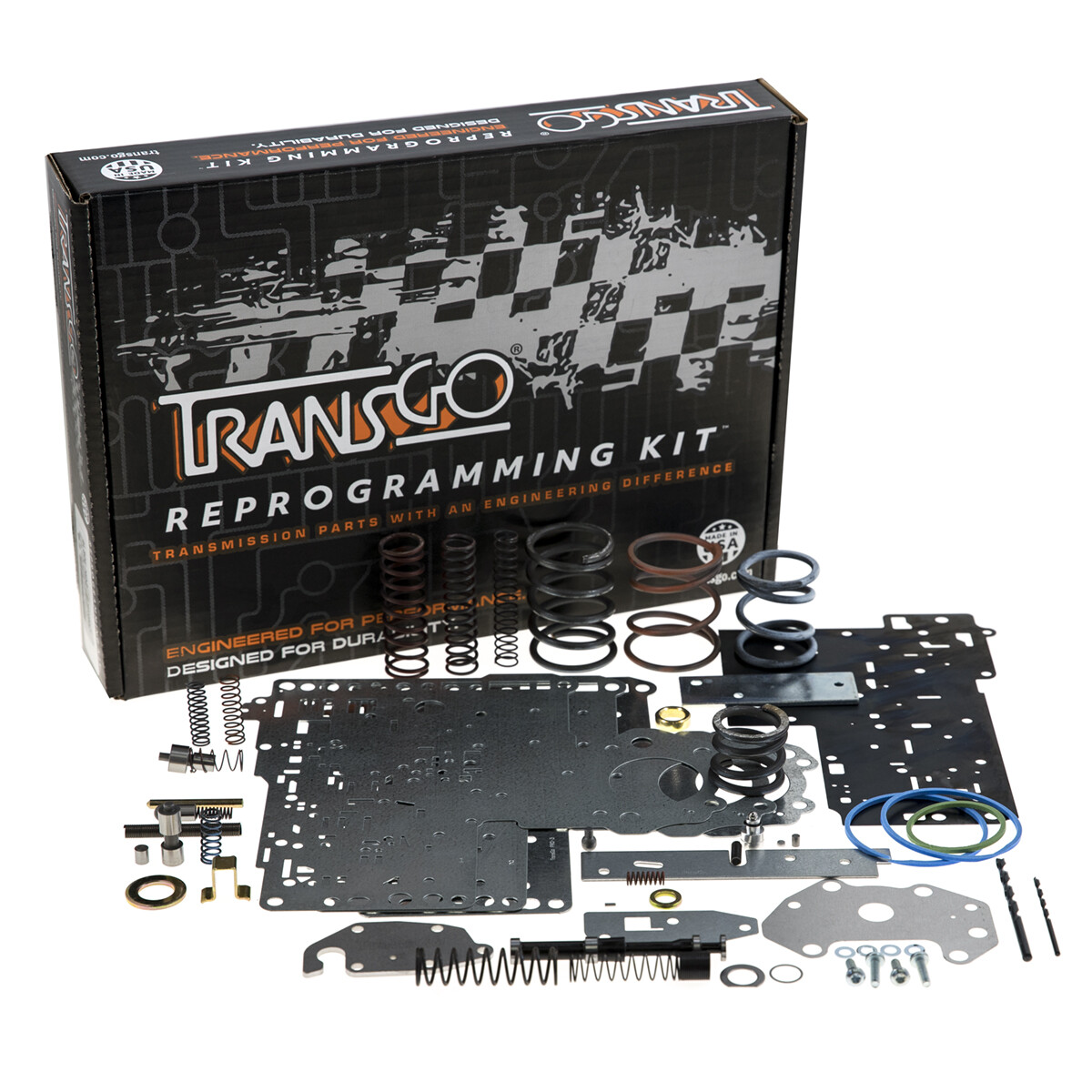

Transgo Reprogramming Kit 46RE 47RE 48RE Heavy Duty Trucks (TFRE-PRO):
$209.00

TRANSGO REPROGRAMMING KIT

Valve Body Reprogramming Kit

For Extreme Duty Work Trucks and Performance Modified Trucks

Includes all items shown

FITS:

1996-On 46RE, 47RE, 48RE

(Electronic Governor Units Only)

Plus 1995 RE VBs with a 3/16 check‐ball in lower channel casting

Does not require transmission removal for proper installation.

TFRE-PRO

This TFRE-PRO Reprogramming Kit fits 1995 and newer Dodge and RAM vehicles equipped with the 46RE, 47RE and 48RE automatic transmissions.Does not fit 1995-type valve bodies without the 3/16 checkball in lower channel casting.

Common complaints on this transmission are TCC slip or shudder, 2ndgear band and direct clutch failure as well as torque converter drain-back.

Features and benefits:

This Reprogramming Kit is designed for the aggressive sport driver with engine power additions that is looking for that competitive edge in transmission torque capacity. This kit includes valve body and servo components as well as internal components that are calibrated for higher operating pressures in all gears.

As a result, with a more aggressive pressure curve and MAX main line set to 185 psi in all forward gears, the kit provides as much as 75% increase in torque capacity for all the clutch elements including the TCC clutch. This kit includes our patent-pending triple valve body separator plate which allows you to achieve TCC operation in all forward gears in 1stto 4thon 46-47 type valve RE bodies with the use of a toggle switch (not furnished). Keeping the shift timing at the OE RPM’s for the optimal engine power curve brings a whole new driving experience to the truck. Therefore, the shifts are short, clean and flat out hold as the power is rolled on. We feel this kit is the Holy Grail of 47-48RE valve body kits on the market, you are going love it!

Packed with patented components

There are several innovative components in this kit. One of them is our line-to-converter feed system which helps the unit run cooler and promotes longer TCC clutch life. Likewise, the TransGo pioneered manual valve reduces overnight forward and reverse delayed engagement complaints due to torque converter drain back. The kit also includes a drop-in detent ball bore repair bullet that works directly in the existing worn bore, this helps with difficult park dis-engagement problem. Similarly, the new drop-in TV and throttle reducing valve (boost) with relocated lands restores the TV pressure boost system functionality providing quick line pressure response in forward and reverse ranges. In addition, the valve body modifications provide increased flow to the direct clutch and band release circuit reducing 2-3 shift overlap.

Lastly, you can install this kit with the transmission in the truck. On the other hand, there are internal sealing rings furnished in the kit if the transmission is on the bench for slip or shudder

Reduces converter drain-back

Soft shifts

2ndband failure

3rdclutch failure

2-3 shift overlap

Increases clutch element torque capacity

Improves TCC engagement feel

Provides full control of TCC apply in 2nd, 3rd, 4thas well as optional 1stgear lock-up

Provides short clean shifts

Includes:

(3) High-temp low shrink sealing rings
Lower 1-2 accumulator spring
Front servo washer and optional spring (for oversized aftermarket servo)
Rear servo optional springs, tapered spring and spacer
Drill-guide plate, drill bit and drill-stop spacer to modify the valve body casting
Boost valve bracket
Drop-in repair detent repair bullet, spring and Mumbly peg (for easy detent spring and bullet installation)
USA-made hardened steel manual valve with converter charge in park provision and cherry bomb
Drop-in USA-made hardened TV valve, boost plug and tapered spring
Part throttle body transfer plate, pin, spacer and detent limit valve spring
Drop-in USA-made hardened steel throttle valve and spring
Patent-pending triple valve body separator plates
(4) Longer screws and washers for the hold down plate
3-4 quick fill valve springs (whites for Diesel engine, orange for gas)
(3) 3-4 accumulator springs, vented accumulator cover, and plug for accumulator housing
Transfer plate, tapered plug, spring, checkball, limit bushing and O-ring
Solenoid body plate
Lower valve body separator plate
PR valve shim, spring seat and inner spring for line-to-converter feed provision as well as outer spring for increased pressure
(3) Drill bits
