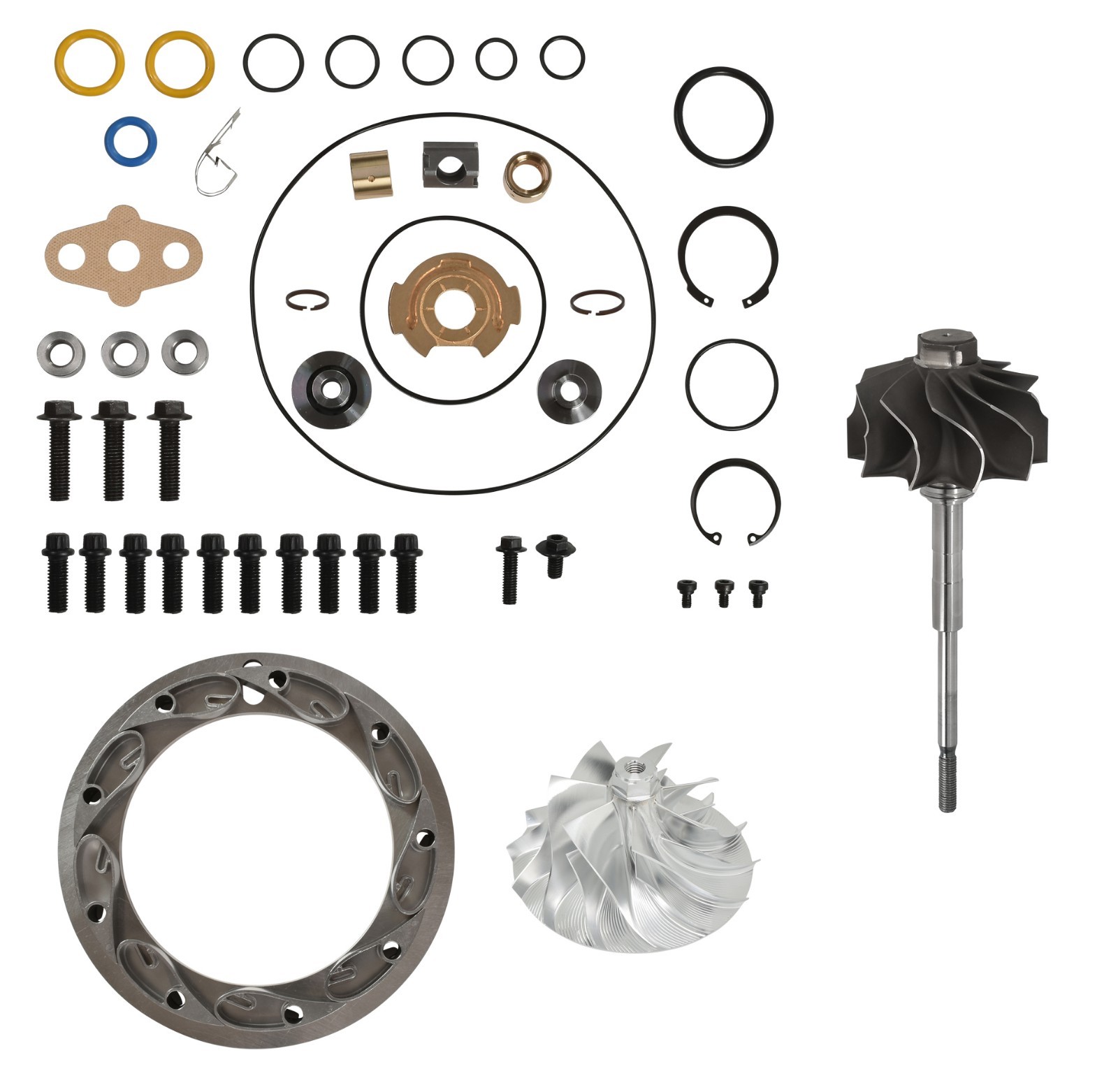

Turbo Rebuild Kit Billet Wheel Unison Ring Vane Turbine Shaft
The Components FoundIn DTPD Rebuild Kits Are Sourced From The World’s Leading Manufacturers. BuiltTo Exceed OEM Quality Standards. We Provide Exactly The Parts You Need For Your6.0L Powerstroke GT3782VA Turbo Rebuild. No More, No Less. This Is Not AUniversal Kit Fitting Several GT37 Models. This Kit Was Designed To CompletelyRebuild And Reinstall Your 6.0L Turbo. From Start To Finish.
These Kits WereOriginally Designed For Our High Performance Turbocharger Line. Offering Extended Service Life For All StageTurbos; Whether Your Diesel Is A Daily Driver With A Stock Turbo, A Well Tuned PowermaxFor Fun On The Street, Or A Purpose Built Drag Racing Truck For The Track. DTPDRebuild Kits Are The Best Option For Rebuilding Your 6.0L Turbocharger.
Fitment
6.0L 2003 - Early 2004 Ford Powerstroke Diesel F250, F350, F450, F550, E250, E350, E450, E550
2003-Style Garrett GT3782VA
Contents
6.0L GT3782VA Rebuild Kit
·360 Brass Thrust BearingAnd Collar
·Journal Bearings
·Step Gap Oil Seals
·Compressor Housing InnerAnd Outer Seals
·10 Compressor HousingBolts
·VGT Actuator Rod CapO-rings And Snap Rings
·5 VGT Solenoid O-Rings
·Complete Install KitWith Gaskets, O-Rings, Hardware
Billet Compressor Wheel
Unison Ring With 9 Vanes
Turbine Shaft
Features
Improved Longevity In High Boost Applications, Severe-Duty Journal Bearings and Thrust Collar
Billet Compressor Wheel Specs
Inducer/Exducer: 59mm/82mm
Blades Long+Short: 7+7
Unison Ring Vane Specs
Vane Height: 15mm
Turbine Shaft Specs
Blades: 10
Inducer/Exducer: 64mm/72.5mm
Brass 360 Thrust Bearing
Brass Dissipates Heat Faster And Provides A Longer Life Span VSSteel. Improved Lubrication With 6 Oil Passages VS OEM 270 Style ThrustBearings With 5 Oil Passages.
Step Gap Oil Seal
Tighter Tolerances For Superior Sealing Minimizing Oil LeakageFrom The Bearing Housing VS Standard OEM Turbine Shaft Oil Seals.
Please Note
The 05 Compressor Wheels And UnisonRing Vanes Are Too Small For 03-Style GT3782VA. Please Double Check Your TurboTag Number Before Purchasing.
Turbo Tag Numbers
OEM Originally Equipped
1837984C93, 1837984C91, 1837984C94, 1832160C91, 1840054C98,1846764C91, 1840054C97
New Garret Aftermarket Replacement
720523-0005, 725390-0001,725390-0002, 725390-0003
