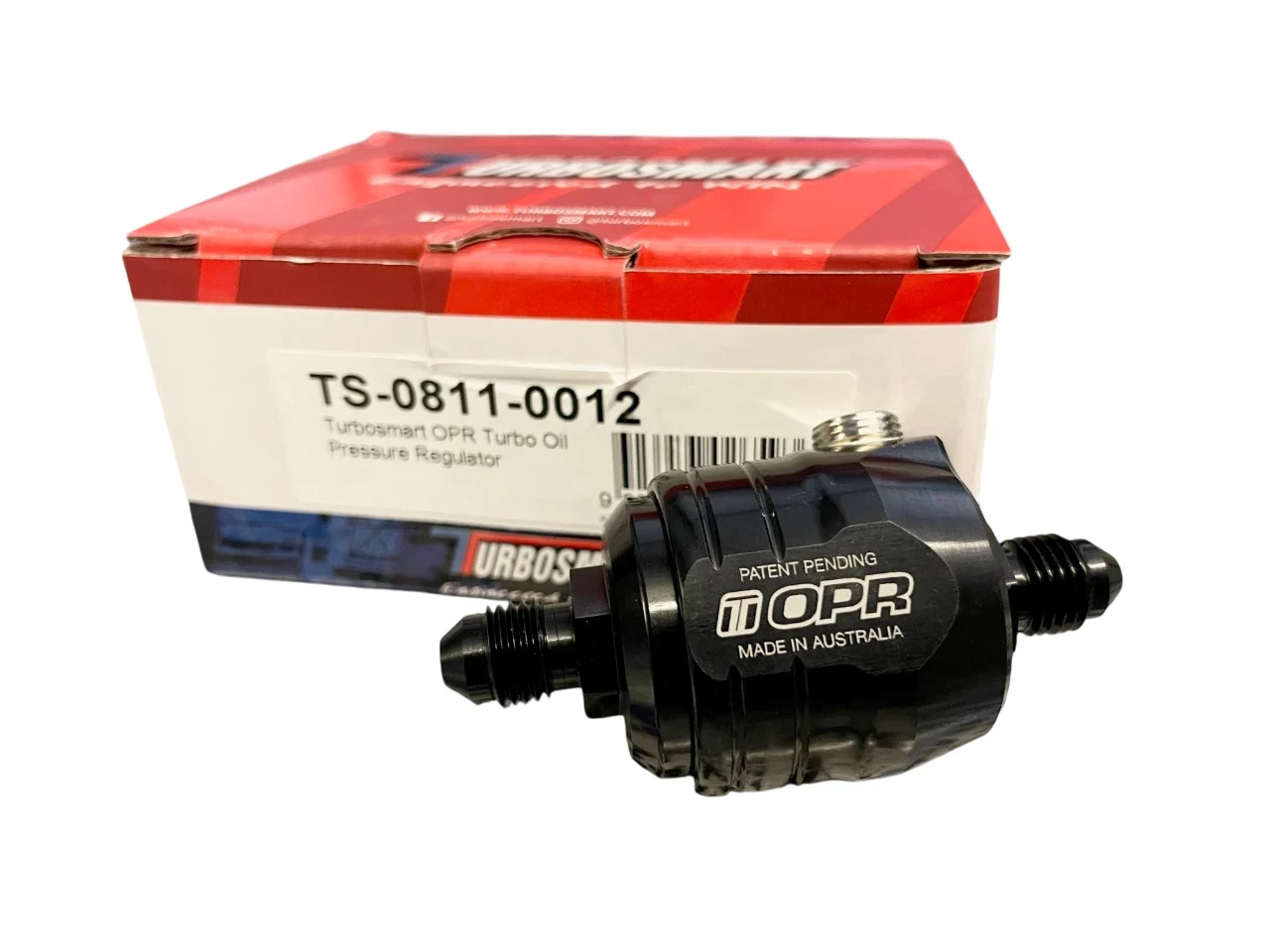

Turbosmart TS‑0811‑0012 OPR V2 Turbo Oil Pressure Regulator 4 AN Return‑Less For Sale - New and Used

Vehicle Fitment

• Universal internal turbo oil feed systems (‑4 AN inlet/outlet)

Features

• Turbosmart OPR V2 turbo oil pressure regulator — return‑less inline design
• Patent‑pending flow control technology for consistent, laminar oil delivery to turbo
• Built‑in 44 micron stainless steel mesh oil filter for debris protection
• Down‑regulates excessive engine oil pressure to suit most turbochargers
• ‑4 AN inlet and outlet ports for standard turbo oil feed lines
• 1/8″ NPT sensor/gauge port for pressure monitoring
• Directional inlet feed logic engraved on housing for correct flow orientation
• Australian‑designed and manufactured, suitable for all engine oils

Specifications

• Brand: Turbosmart
• Part Number: TS‑0811‑0012
• Type: OPR V2 Turbo Oil Pressure Regulator (return‑less inline)
• Ports: ‑4 AN inlet/outlet, 1/8″ NPT sensor/gauge
• Filter: Built‑in 44 micron stainless mesh
• Orientation: Inline return‑less oil feed regulator
• Material: Anodized billet aluminum (6262 T6)
• Flow Type: Laminar flow pressure regulation

Included Components

• 1x Turbosmart OPR V2 turbo oil pressure regulator (TS‑0811‑0012)
• 1x 1/8″ NPT port blanking plug
• 1x Turbosmart branded decal
• Installation/Instruction sheet

---
