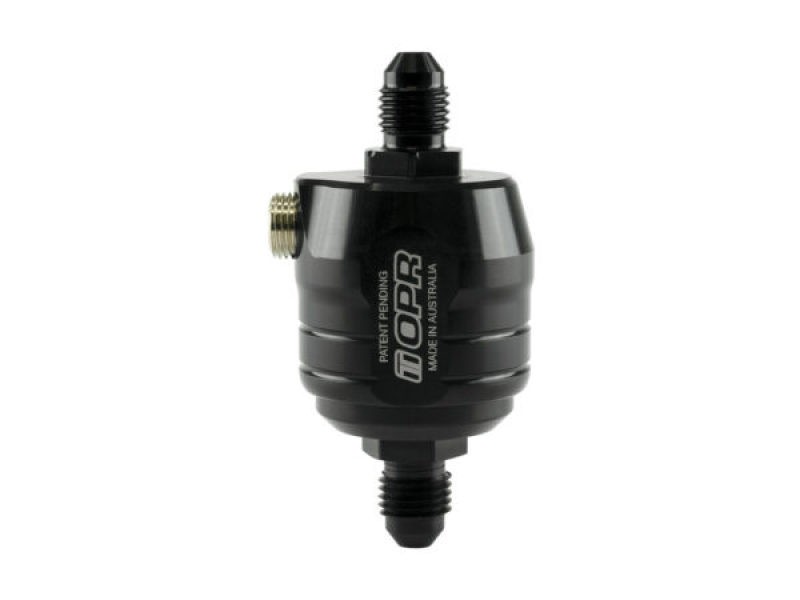

🔥 Turbosmart OPR V2 Turbo Oil Pressure Regulator
Model: TS-0811-0012
Take the guesswork out of turbo oiling with the Turbosmart OPR V2—a game-changing, patent-pending return-less oil pressure regulator engineered to deliver clean, consistent, turbo-safe oil pressure without complicated plumbing. Designed for modern turbocharged builds, the OPR V2 keeps oil pressure right where your turbo wants it—simple, reliable, and rock-solid.
🚀 Why the OPR V2 Stands Out
◆ Return-Less Design – No oil return line required, dramatically simplifying installation
◆ Consistent Turbo Oil Pressure – Regulates output to an ideal ~40 psi for turbo lubrication
◆ No Restrictors Needed – Eliminates trial-and-error sizing and flow guesswork
◆ Prevents Turbo Smoking – Helps stop seal blow-by caused by excessive oil pressure
◆ True “Fit and Forget” Solution – Set it once and enjoy long-term reliability
⚙️ Features & Technology
◆ Built-In 44 Micron Stainless-Steel Mesh Filter – Keeps oil clean and turbo-safe
◆ Serviceable & Removable Filter – Easy maintenance, long service life
◆ CNC-Machined 6262-T6 Billet Aluminum Body – Lightweight, extremely strong, corrosion-resistant
◆ Anodized Black Finish – Durable and clean under-hood appearance
◆ Directional Inlet/Outlet Engraving – Foolproof installation every time
◆ -4 AN Inlet & Outlet Ports – Compatible with standard turbo oil feed lines
◆ 1/8 NPT Gauge / Sensor Port – Optional oil pressure monitoring capability
◆ Laminar Output Flow – Smooth, controlled oil delivery to protect turbo bearings
🔧 Compatibility
◆ Universal fit for turbocharged engines using -4 AN oil feed lines
◆ Ideal for journal and ball-bearing turbos requiring controlled oil pressure
◆ Supported and distributed worldwide by Turbosmart
📐 Technical Specifications
◆ Oil Port Size: -4 AN inlet & outlet
◆ Regulated Pressure: ~40 psi (optimal turbo lubrication)
◆ Filter Rating: 44 µm stainless-steel mesh
◆ Gauge Port: 1/8 NPT (outlet side)
◆ Material: CNC-machined 6262-T6 aluminum
◆ Finish: Anodized black
◆ Dimensions: Approx. 4.5 × 3.5 × 2 in
◆ Weight: Approx. 4.6 oz
📦 What’s Included
◆ 1× Turbosmart OPR V2 Turbo Oil Pressure Regulator
◆ Built-In 44 µm Stainless-Steel Oil Filter (pre-installed)
◆ 1× 1/8 NPT Gauge Port Plug (installed)
◆ Turbosmart Branding Decal
💥 Performance Overview
The Turbosmart OPR V2 completely redefines turbo oil pressure control. By removing the need for oil restrictors and return lines, it delivers cleaner installs, safer oil pressure, and happier turbos. Whether you’re building a street car, track weapon, or high-boost monster, this regulator protects one of your most expensive components with Turbosmart-engineered confidence.
If you want maximum reliability, minimal complexity, and proven turbo protection, the OPR V2 is the smart solution. 🏁🔥
