Specication: RatedVoltage (V): 12V DC Current (A): 66A Rated Power (W): 792W Rated Cooling Capacity (W): 3000W Refrigerant：R134A Refrigerant Oil：POE68 Charging Quantity of Refrigerant ( g)：600g Power Cord Specification (mm2)：3 meters (8mm²) Type of Heating and Cooling: Cooling Only Application: Air-condition Refrigerant: R134a Compressor Cooling:Inhalation refrigerant cooling Displacement: 12ml/re Electric Compressor Data: Voltage: DC 12V Current: 63A Rated speed: 2100rpm Speed range: 1500rpm - 2100rpm cooling capacity:1000-2000W Rated power: 650w Condensing temperature range: 26.7℃ - 68℃ Evaporating temperature range: -10℃ - 12.5℃ Oil: RL68H/130ml
Scroll Compressor Specification: Electronic fan connection harness: 2 meters Internal machine connection harness: 3 meters Main power harness: 3 meters Fluorine-resistant hose: 3 points (thin tube) = 3 meters 4 points (thin tube) = 2 meters 5 points (thin tube) = 3 meters
Application: For Truck, Tractor, Digger, Trailer,Excavator, Agricultural vehicles, Pickup,etc.

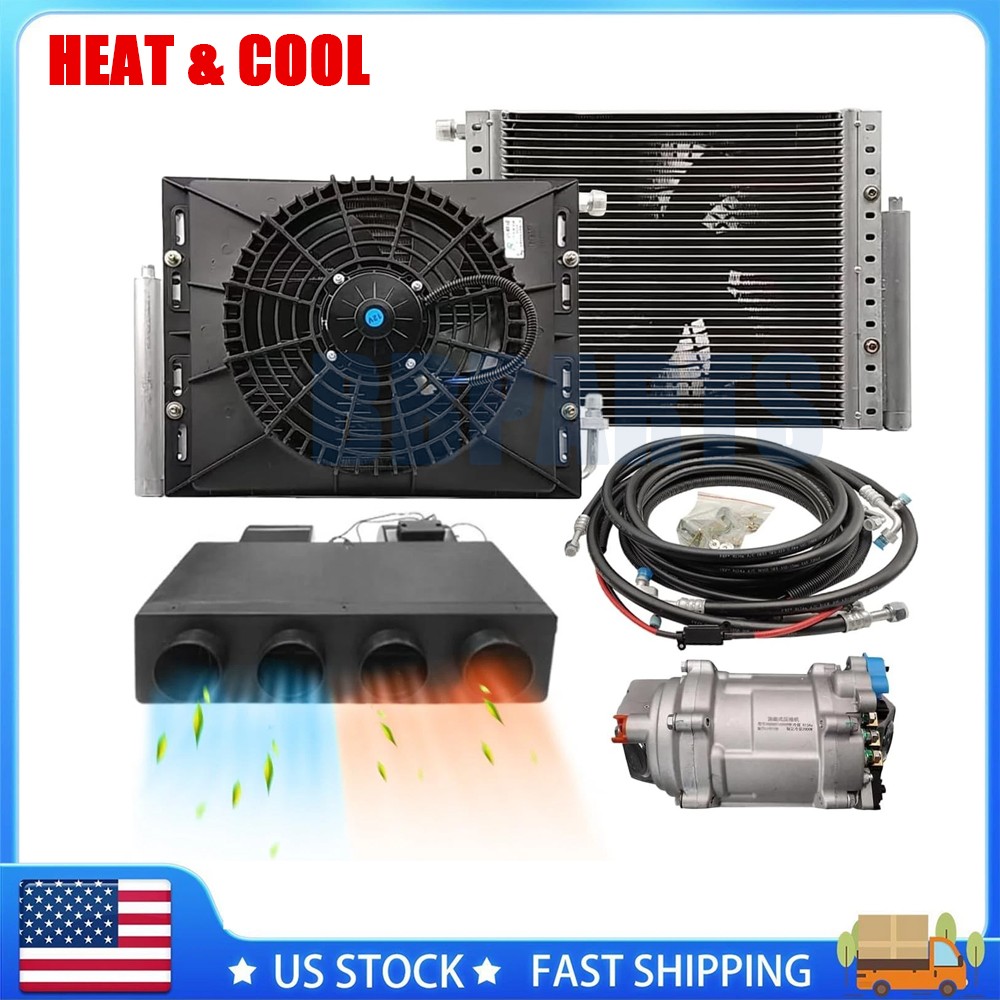

Package List: 1、Evaporator Assembly 2、Condenser 3、Cooling Fan 4、Main Power Cord 5、Cooling Fan Power Cord 6、Condenser Assembly Bracket 7、Compressor Assembly 8、Compressor Bracket 9、Refrigerant Pipeline 10、Blower Power Cord 11、Drainage Pipe 12、Installation Bracket For Blower Assembly
Note: 1.The total leakage of the compressor is not greater than 5g/year. 2.The noise is not greater than 74dB in rated speed. 3.Insulation resistance must be greater than 20MΩ . 4.The tolerance of None remarked dimensions may be accordance with GB1804-m. 5. The performance of all unmentioned are in accordance with GB/T 22068-2018. WHAT IS PARKING AIR CONDITIONER ? The parking air conditioner is a kind of in-car air conditioner. It refers to the equipment that uses the on-board battery DC power supply (12V) to make the air conditioner run continuously when parking and waiting and resting, and to adjust and control the temperature, humidity, flow rate and other parameters of the ambient air in the car, so as to fully meet the comfort cooling needs of the truck driver. Normally drivers leaving the engine running for hours to use the air conditioner during parking or rest time at night, it is bad for the environment and tons of fuel wasted, it also wears down the engine faster. Parking air conditioner works with truck battery power without engine on which can save energy and fuel and at same time provide safe and comfortable environment for driver. Fuel,Energy And Money Saving. Digital frequency conversion control, more efficient and more energy saving. Use energy saving mode when you sleep at night, it can run continuously 6 to 8 hours. Use super mode in hottest hours, cooling rapidly and stronger air supply. MULTI INSTALLATION WAYS The 12V electric air conditioning system have multi installation ways to ensure it can be suitable for most vehicles in the market. It includes: 1) rooftop mounted air c onditioner for van, truck, commercial vehicles, special vehicle, trailer, earth-moving machine, motorhome, RV (recreational vehicle) 2) back - wall mounted air condition er for truck, tractor, trailer, heavy duty truck, light truck, truck cab, truck sleeper, sleeper cab. The truck air conditioner is divided into two types: Rooftop Air Conditioner/ split type model. Very easy to install. The entire air conditioner is integrated, with compressors, condensers, blowers and other accessories inside.
