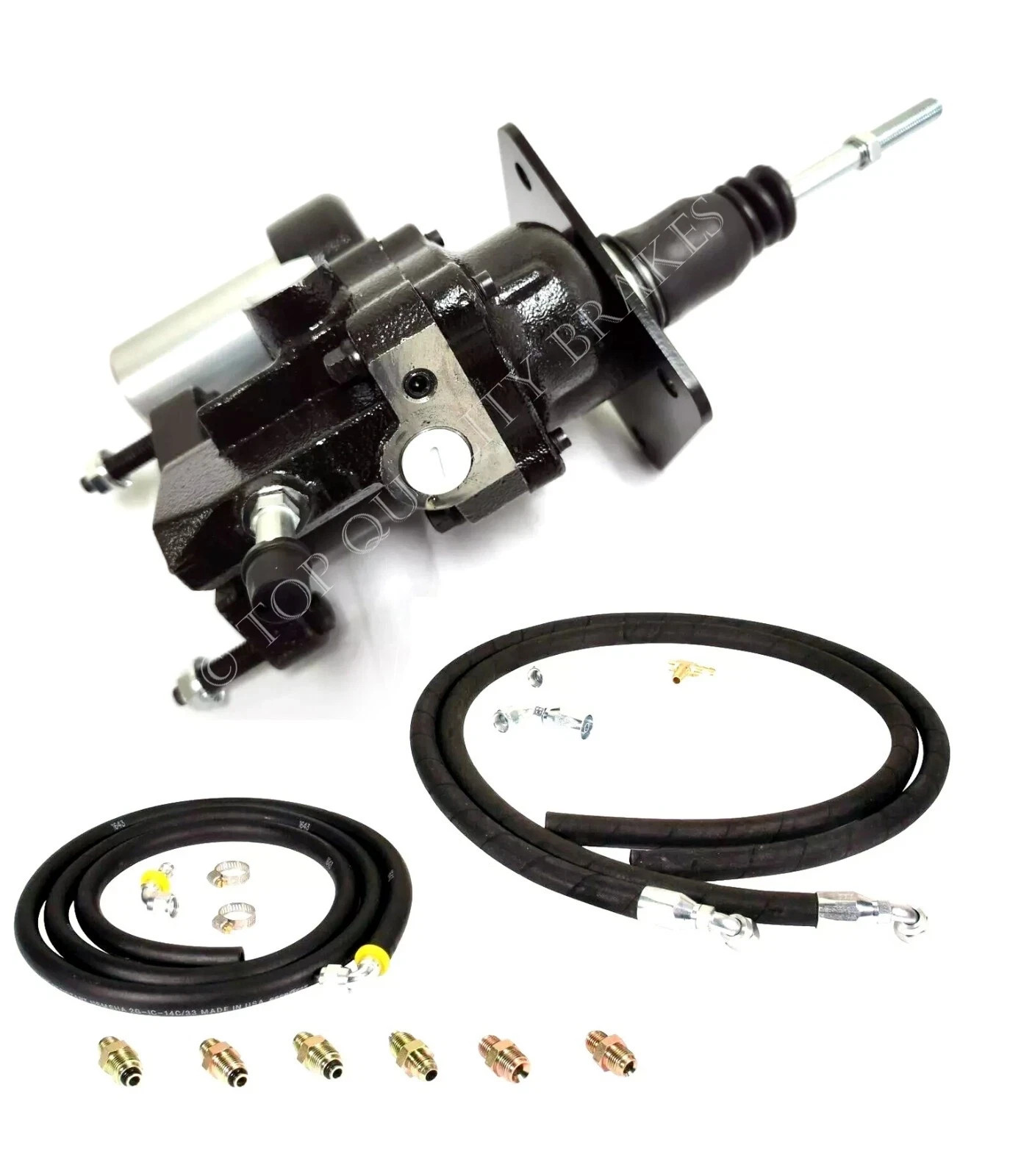

Upgrade your braking system with our universal Hydro-Boost hydraulic brake assist power booster and Hose Kit. Capable of delivering up to 1800psi of pressure, this hydrobooster significantly enhances braking performance by more than doubling the force applied compared to traditional vacuum boosters. Powered by hydraulic line pressure from the power steering pump, it ensures superior stopping power and improved driver response.
Key Features:
- High Performance:Delivers up to 1800psi of line pressure for superior braking
- Enhanced Pressure:Utilizes power steering pump pressure (800psi to 1400psi) to boost braking force
- Improved Stopping:Provides greater force to brake calipers for better performance
- Versatile Installation:Easily converts manual brake setups to power or upgrades existing vacuum booster systems
- Mounting Specs:Master cylinder mounting studs are 3-1/2\" apart center-to-center; firewall or mounting bracket holes are 3-3/8\" apart square center-to-center
- Includes 4 Foot Hydraulic Brake Assist Rubber Hose Kit
The Gearhead high quality hydraulic hose kit is just what you need to complete your Hydroboost or Hydrastop install. Gearhead hoses are extra durable and are a cut to fit, which makes them perfect for just about any car/truck. The kit has everything needed to connect you hydraulic assist to you pump and steering box/rack and pinion.Hose Kit Includes:
(2) 4\' rubber high pressure hoses (90° -6AN female fittings already crimped on)
(1) 6-1/2\' 3/8\" return line (one 3/8\" push lock 90° to a -6AN female installed)
(2) 90° -6AN female re-usable hose ends
(1) 3/8\" push lock 90° to -6AN female fitting
(1) 3/8\" brass barb tee fitting
(6) 1/2\" To 29/32\" hose clamps
(2) 16MM O-ring to -6AN male fittings
(2) 18MM O-ring to -6AN male fittings
(2) 5/8\" inverted flare to -6AN fittings
(1) 11/16\" inverted flare to -6AN fitting
(1) 5/16\"-24 O-ring to -6AN fitting
Click Here for the bracket kit for GM A Body Chevelle, Cutlass, ++++
Click here for the firewall bracket kit for GM F Body Camaro Firebird
Click Here for the firewall bracket set for GM X Body Nova, Ventura, ++
Click here for the firewall bracket for a 1955-1958 Chevy car
Click here for the firewall bracket for a 1960-1966 Chevy Truck
Professional Installation is Highly Recommended (No Instructions Included)
