Victron Energy GX Tank 140 Tank-Level Monitoring Interface
The Victron Energy GX Tank 140 connects as many as four compatible tank-level sensors to a Victron GX monitoring system. It supports both current-based and voltage-based sensors, making it suitable for monitoring freshwater, wastewater, fuel, LPG and other compatible tanks in marine, RV, off-grid and industrial systems.
The unit connects to a compatible GX device through its attached USB cable, which provides both communication and operating power. Two sensor channels feature a built-in 24V supply, while the remaining channels can be powered using an external supply.
Features
- Monitors up to four tank-level sensors
- Compatible with 4–20mA current senders
- Compatible with 0–10V voltage senders
- USB connection to a compatible Victron GX device
- Powered through the USB connection
- Two channels with built-in 24V sensor power
- External-power input for applicable sensors
- Fused output connections
- Detachable terminal blocks for convenient wiring
- Integrates tank information into a Victron GX monitoring system
Compatible Systems
Designed for use with compatible Victron GX devices, including systems built around the Cerbo GX and other supported Venus OS products.
A GX monitoring device, display and tank-level sensors are not included.
Included
- Victron Energy GX Tank 140
- Attached USB cable
- Removable wiring terminal blocks shown
- Original box
Specifications
- Brand: Victron Energy
- Model: GX Tank 140
- Part Number: BPP920140100
- Number of channels: Four
- Sensor input: 4–20mA or 0–10V
- System connection: USB
- Sensor power: Built-in 24V supply on two channels
- Design origin: Netherlands
- Country of Origin: Malaysia

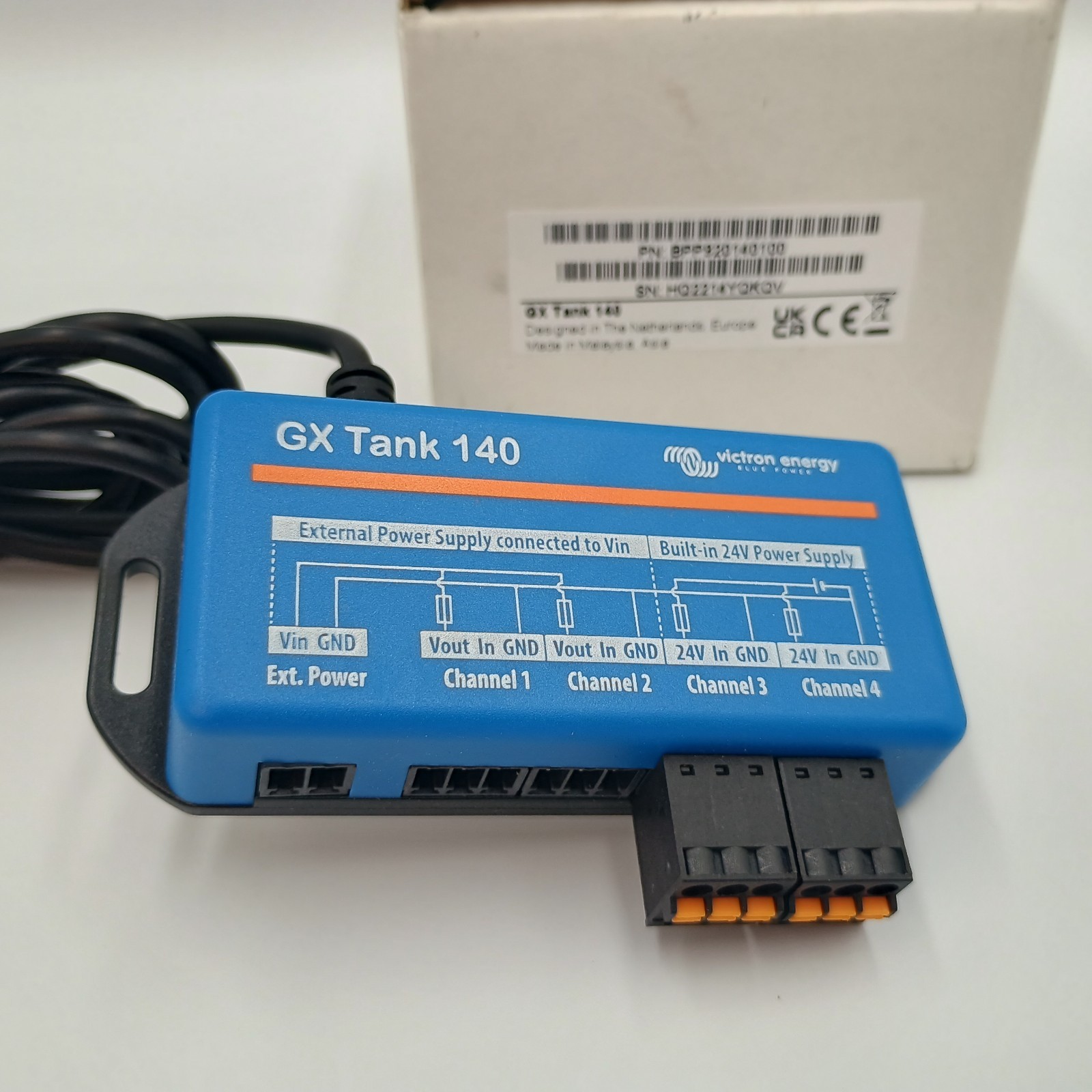

Please confirm sensor and GX-system compatibility before purchasing. The photographs show the actual unit and included accessories.
