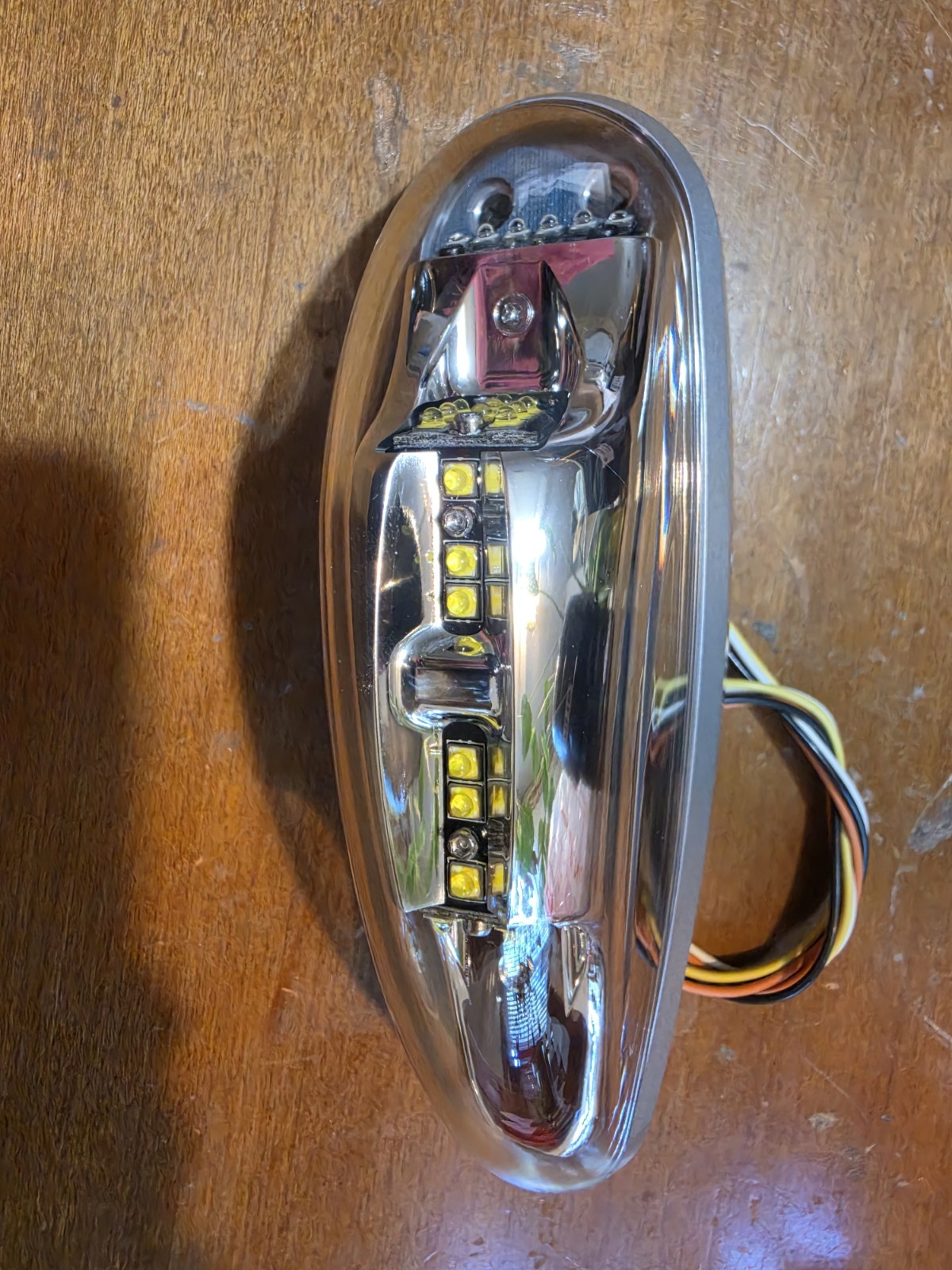

ORION600 Series of FAA/TSO approved LED aviation lighting. Incorporating the latest state of the art LED Technology available in an all-inclusive package, the ORION600 series eliminates the need for external flasher boxes. Flush mountable for a wide variety of applications with minimal integration and easily retrofitable to the Whelen legacy strobe products. The ORION600 series is quite simply the brightest form of LED Anti-collision and Position lighting available.Model ORION600 Position/Anti-Collision Lighthead All LED self-contained wingtip mounted Position/Anti-Collision system. Eliminates the need for external power supplies and reduces current draw and provides thousands of hours of operation.FAA TSO-C96c Class II / TSO-C30c Type II & III
Features
Fully FAA/TSO-C96a & TSO-C30c approved
FAR SPEC Certified
Replaceable hard coated polycarbonate lens to maintain maximum light output
No RF emissions
Aerodynamic design without sacrificing light output
Exceeds FAA minimum intensity requirements for maximum visibility and increased safety of flight
Environmentally tested and certified to RTCA/DO-160G standards
Specifications
Weight 0.4 lbs.(181gm)
Dimensions H x W x L 2.04” (52mm) x 1.78” (45mm) x 5.65” (144mm)
Volts 12 VDC 28 VDC
Position LED colors Aviation Red Aviation Green
Anti-Collision LED color Aviation White
Lenses Clear Polycarbonate Hardcoat, Field Replaceable
