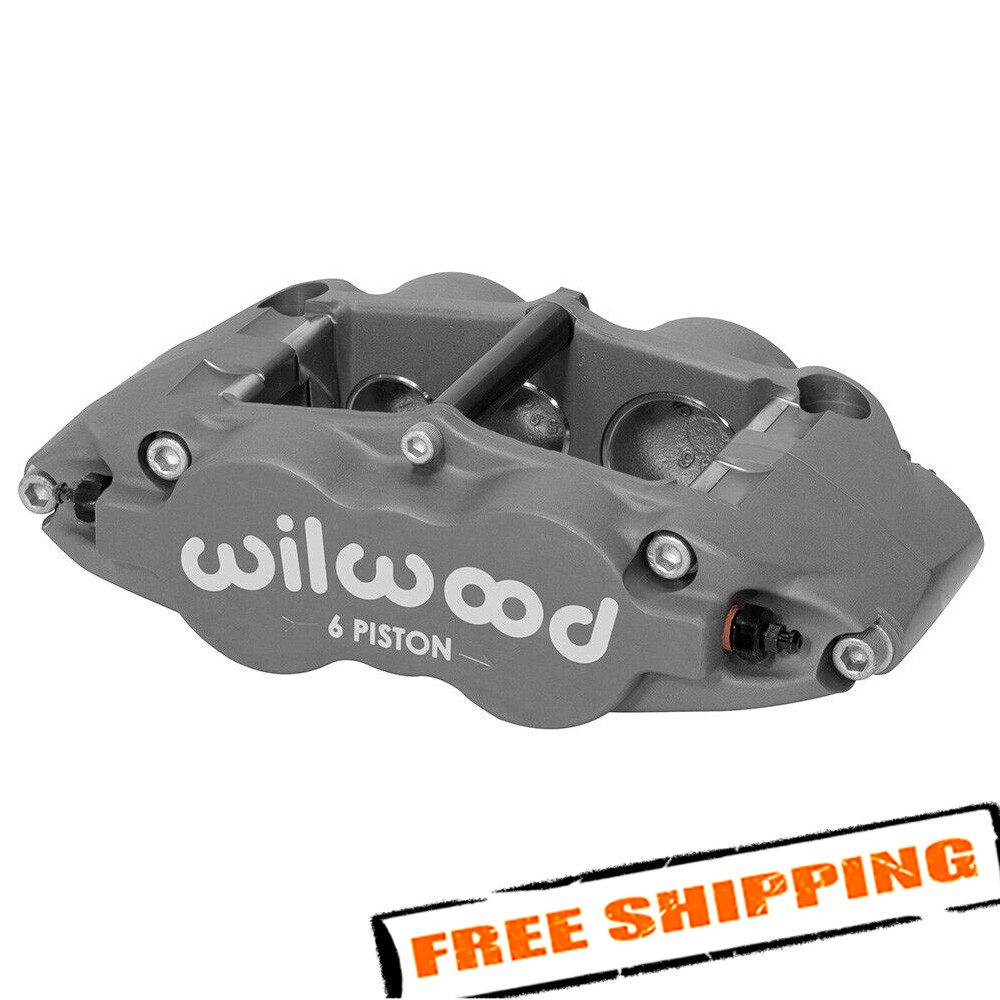

Wilwood 120-13235 Forged Superlite 6 Radial Mount Caliper For Sale - New and Used

• FAST & now and get same day shipping!
• Hurry up! Tomorrow the price will be 1 Bore (in): 1.62
• Piston 2 Bore (in): 1.12
• Piston 3 Bore (in): 1.12
• Piston Count: 6
• Piston Area (in²): 4.04
• Piston Type: Stainless
• Dust Boot: No

  Rotor Dimensions

• Maximum Rotor Width (in): 1.35
• Minimum Rotor Width (in): 1.15
• Minimum Rotor Diameter(in): 11.75
• Rotor Width (in): 1.25
• Rotor Diameter(in): 14.00

  Pad Dimensions

• Brake Pad Type 1: 7420
• Pad Area (in²): 8.2
• Pad Volume (in³): 4.9

  Duty Rating & Material

• Material: Forged Aluminium
• Weight(Lbs): 5.4

  Colors & Finish

• Color: Anodize
• Finish: Type III Center(in): 5.98
• Mount Side: Right Hand
• Mount Type: Radial
• Mount Hole Size(in): 0.39
• Mount Height(in): 1.63
• Inlet Thread Size: 1/8-27 NPT

SHIPPING

• We do our best to ship most items same or next day.
• For all products, free fast delivery of the UPS is already included in the price.
• Unfortunately UPS doesn’t accept PO box address. Please specify physical address which will guarantee faster delivery.

PAYMENT

• All orders must be paid via PayPal.
• You may use your paypal dollars, or use your MC/Visa, Amex, Discover thru your PayPal account.

RETURNS

• We offer 30 Day return policy.
• Buyer pays return shipping.
• Returns will only be accepted with a valid RMA number.
• All returns must be in original box unopened.
• A 20% restocking fee may apply.
• All products returned are assumed to be in new and saleable condition unless the customer indicates otherwise at the time of submission. Re-boxing fees will be assessed on items received with damaged packaging. This fee may include shipping or other charges levied by the manufacturer. Any product returned in damaged, used or otherwise unsaleable condition may be returned to the customer or credit given at lower value, at the discretion of Autoshopping24.

EXCHANGE OF FAULTY ITEMS

• Unfortunately mistakes happen and very seldom we ship faulty items. If you would like to get a replacement for an item purchased from us, we can do it for you! Please ship the original item(s) to our warehouse first and provide us with tracking number(s). Once we see that items are on their way we will send a replacement.

OVERVIEW

Forged Superlite 6 Radial Mount

The Superlite 6R caliper series is the benchmark in asphalt short track, late model, modified and open wheel competition. It also enjoys prominence in a variety of road-race, rally and sport driving applications. The new FSL6R model series is the latest innovation to this Superlite family of calipers. It has been redesigned with internal fluid ports that eliminate the external fluid cross-over tubes. The transfer tube has been replaced with two additional bleed screw assemblies which allow differential bore models to have a left hand and right hand orientation, but no leading or trailing configuration is required.

The FSL6R has been redesigned with internal fluid ports that eliminate the external fluid cross-over tubes. The transfer tube has been replaced with two additional bleed screw assemblies which allow differential bore models to have a left hand and right hand orientation, but no leading or trailing configuration is required. The most noteworthy feature of all the FSL6R caliper models is the exceptional strength and reduced weight of the forging. With assembled weights just at 4.4 pounds, the caliper body design in itself is a product of computer generated solid modeling and stress analysis technology. Each caliper features closed end bridges with a radial transition down to the main body and piston bore housings. The elimination of machined steps and sharp shoulders in this critical area provides a measurable increase in overall body strength and resistance to deflection under load. Every FSL6R body is stress-flow forged from a premium grade aluminum alloy billet.

NOTES

If you have fitment questions or concerns, please contact us prior to ordering.
