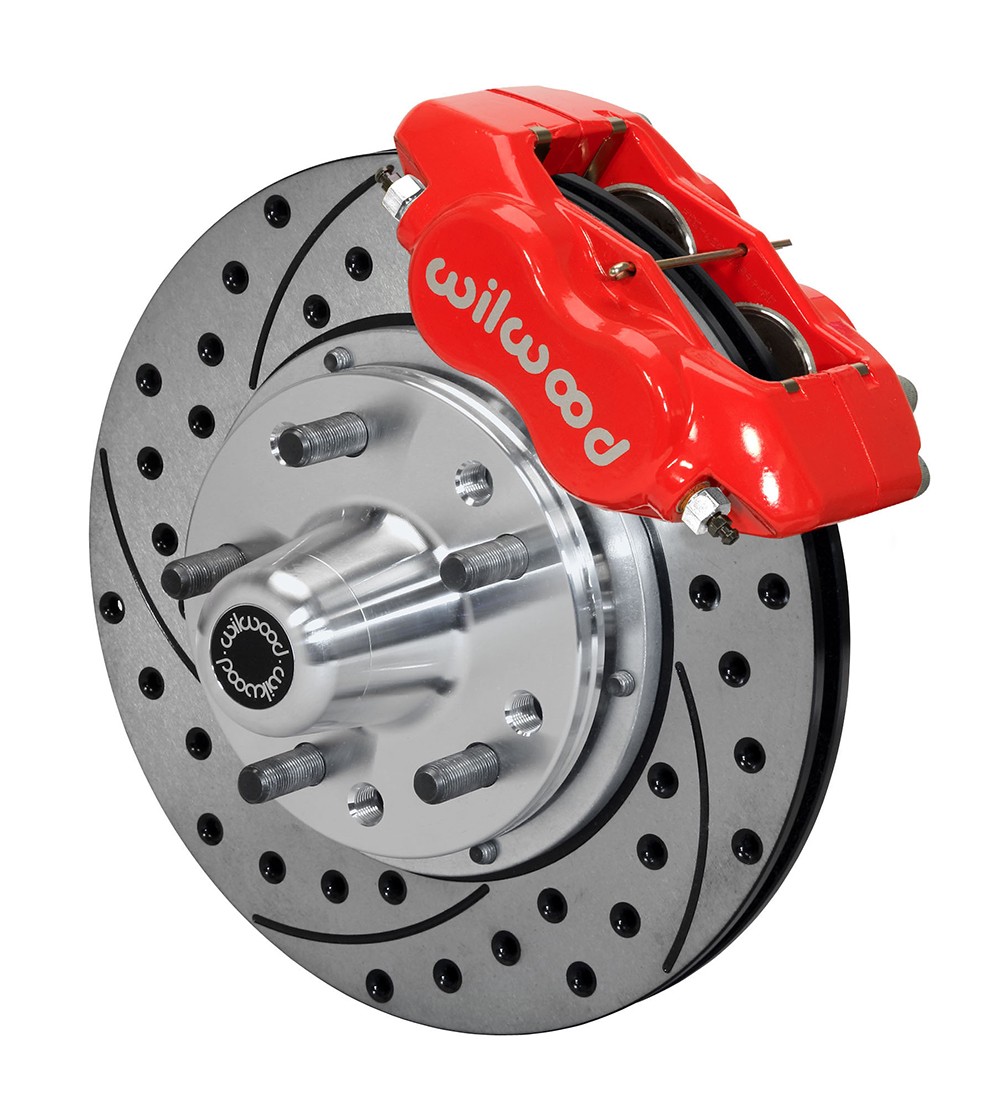

Wilwood 140-11018-DR Forged Dynalite Pro Series Front Hub Kit For Sale - New and Used

• FAST & style=\"\">
• Buy now and getsame day shipping!
• Hurry up! Tomorrow the price will be higher!

Kit Summary:

• OE Hub Offset: +.24
• (Increase / Decrease Track Width)
• Spindle Type: Factory Disc Spindle
• Mount Type: Lug
• Caliper Type: 4 - Red Powder Coat
• Rotor Diameter: 11.00
• Min Wheel Diameter Req\'d*: 14

Kit Components & Hand - Part No: 120-13844-RD

Right Hand - Part No: 120-13844-RD

Type: Forged Dynalite Internal

Finish Color: Red Powder Coat

Piston Count: 4

Piston 1 Bore (in): 1.75

Piston 2 Bore (in): 1.75

Piston Area (In²): 4.80

Piston Type: Stainless

Mount Type: Lug

Brake Pad Plate: 7112

Brake Pad Area (In²): 6.36

Brake Pad Volume (In³): 2.1

Pad Compound: BP-10

Rotors:

• Left Hand - Part No: 160-7100-BK
• Right Hand - Part No: 160-7099-BK
• Type: SRP Drilled Rotor
• Style: SRP Drilled & Slotted
• Surface Finish: Black Electro Coat
• Material: Iron
• Outside Diameter (in): 11.00
• Width (in): 0.81
• Vane Count: 30 V
• Design Type: SRP-BLK
• Burnished: No
• Dynamically Balanced: No

Hubs:

• Hub - Part No: 270-11256
• Type: Hub - Vented Rotor Offset
• Material: Aluminum
• Finish Color: Bare
• Mount Style: Adapter
• Bolt Circle 1: 5 x 4.50
• Bolt Circle 2: 5 x 4.75
• Stud Diameter - BC 1: 1/2-20
• Stud Diameter - BC 2: 1/2-20

SHIPPING

• We do our best to ship most items same or next day.
• For all products, free fast delivery of the UPS is already included in the price.
• Unfortunately UPS doesn’t accept PO box address. Please specify physical address which will guarantee faster delivery.

PAYMENT

• All orders must be paid via PayPal.
• You may use your paypal dollars, or use your MC/Visa, Amex, Discover thru your PayPal account.

RETURNS

• We offer 30 Day return policy.
• Buyer pays return shipping.
• Returns will only be accepted with a valid RMA number.
• All returns must be in original box unopened.
• A 20% restocking fee may apply.
• All products returned are assumed to be in new and saleable condition unless the customer indicates otherwise at the time of submission. Re-boxing fees will be assessed on items received with damaged packaging. This fee may include shipping or other charges levied by the manufacturer. Any product returned in damaged, used or otherwise unsaleable condition may be returned to the customer or credit given at lower value, at the discretion of Autoshopping24.

EXCHANGE OF FAULTY ITEMS

• Unfortunately mistakes happen and very seldom we ship faulty items. If you would like to get a replacement for an item purchased from us, we can do it for you! Please ship the original item(s) to our warehouse first and provide us with tracking number(s). Once we see that items are on their way we will send a replacement.

OVERVIEW

Forged Dynalite Pro Series Front Brake KitFDL Pro-Series Front Hub Kits offer complete disc brake upgrade solutions for traditional non-ABS spindle applications on American muscle cars, vintage rods, and heavy weight drag cars. Based on the venerable forged billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. Most kits require no modifications for installation, and provide plenty of clearance inside popular 15” wheels. FDL Pro-Series kits can be used with either manual or power boost master cylinders.

FITMENT

Ford
Ford Mustang 1984-1986 SVO w/ 5 Lug Wheels, Disc Brake Rear
Ford Mustang 1987-1993 V-8 Spindle Only, 5 lug
Ford Mustang 1993 V-8 Spindle Only, 5 lug, Disc Brake Rear
Ford Thunderbird 1987-1988 Turbo Coupe, 5 lug

NOTES

*This Brake Kit may fit 14-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.
Brake Kits are designed to fit OE Factory Spindles.
THIS BRAKE KIT HAS A HUB OFFSET OF: +.24
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle

If you have fitment questions or concerns, please contact us prior to ordering.

*Please see the \"Compatibility\" link at the top of the listing.
