Fitment List
2009-2012 For Harley touring cvo/Ultra w/ABS(Only for CVO/Ultra high end version)
Compatible with Road Glide CVO/SE FLTRXSE 2012
Compatible with Road Glide Ultra CVO/SE FLTRUSE 2011
Compatible with Street Glide CVO/SE FLHXSE 2010
Compatible with Street Glide CVO/SE FLHXSE2 2011
Compatible with Street Glide CVO/SE FLHXSE3 2012
Compatible with Ultra Classic Electra Glide CVO/SE FLHTCUSE4 2009
Compatible with Ultra Classic Electra Glide CVO/SE FLHTCUSE5 2010
Compatible with Ultra Classic Electra Glide CVO/SE FLHTCUSE6 2011
Compatible with Ultra Classic Electra Glide CVO/SE FLHTCUSE7 2012
Total Specifications
Item：Extended Length Hydraulic Clutch Line、Upper and Lower Hydraulic Front ABS Brake Line
Used On：12"-14" Handlebar (ABS)
Color：Black
Inner tube material：Teflon（PTFE,Temperature resistance from -70°C to 260°C）
Outer tube material：Polished Stainless steel preparation
Outer transparent tube material: PVC
Condition: Aftermarket Brand New
●Hydraulic Clutch Line Specifications
Overall Length：80.5"(2044.7mm)
Travel Length ：2 .75"（69.85 mm）
Replace for Hydraulic Clutch Cable Part Number :# 37200014、#38938-09
●Upper Hydraulic ABS Front Brake Line Specifications
Overall Length: 69"(1752.6mm)
Replace for Upper Front Brake Line Part Number: # 38937-09
●Lower Hydraulic ABS Front Brake Line Specifications
Length-A：58"（1473.2mm）
Length-B：15"(381mm)
Travel Length：2 .75"（69.85 mm）
Replace for Upper Front Brake Line Part Number：#42388-09
Features
【Compatibility】
Compatible with 2009-2017 For Harley touring with ABS 12"-14" Handlebar.
Please check the detailed fitment list before purchasing.
【Convenience】
This line kit is designed to save you time and hassle when installing handlebar lines,including the brake cables as well as the necessary hardware.
【Premium Quality】
Inner PTFE tubing braided with stainless steel reinforcement embedded in a tough PVC outer protector offers exceptional protection. The PTFE material is resistant to temperatures ranging from -70℃ to 260℃. Our kit offers a longer lifespan and increased durability, ensuring reliable performance for years to come.
【Better Work】
The hydraulic line hose will greatly improve your effectiveness because there is almost no expansion under pressure, less soft than rubber hoses at all times. This advantage reduces braking distances and increases the efficiency of the calipers;Easier and more responsive clutch squeezing.
【Installation】
Direct replacement for the stock short/old brake line. The banjo fittings are removable and can be replaced with fittings of the desired angle and size according to your needs. Brazed manifold construction eliminates leaks, alignment problems, and unattractive threaded connections for a sleek appearance.

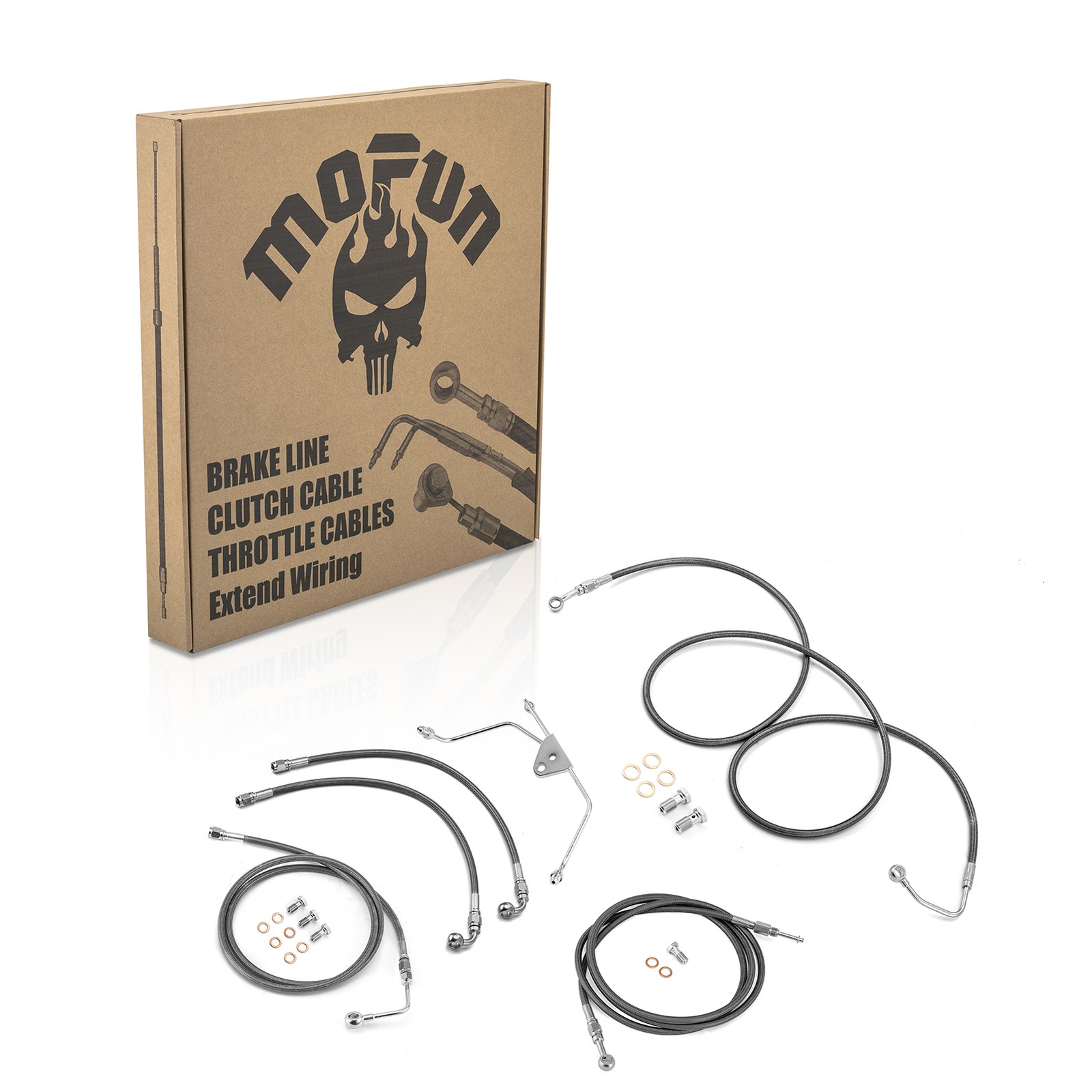

【Package Includes】
1 x Hydraulic Clutch Line;
1 x Upper ABS hydraulic front brake line
1 x Lower ABS hydraulic front brake lines
Includes necessary mounting hardware.
If you have any questions,please feel free to contact us by email, and we will provide you with a satisfactory solution.
