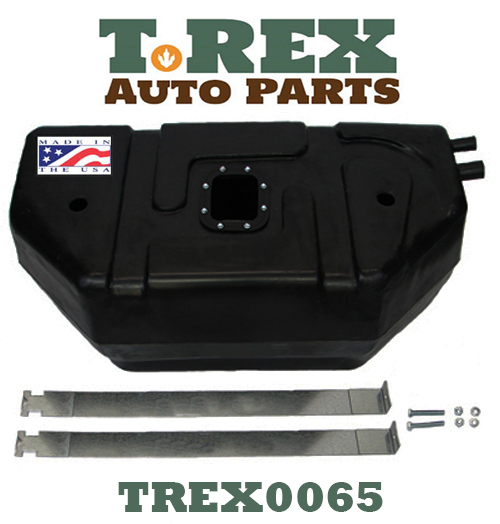

TREX00651991-1995 Jeep Wrangler YJ 20-Gal. plastic fuel tank with integrated fuel bowl.Replaces original 15/20-Gal. plastic fuel tank with the 2.5L and 4.0L engine(this tank will replace original 15 gallon PLASTIC tank w/ rectangle sending unit hole). Includes a new 8-hole gasket and (2)new upper straps, nuts, bolts and split washers.This tank will directly replace Domestic model #\'s 52002633 & 52018287. These #\'s are either stamped into the tank or there is a white sticker.This tank will NOT directly replace export model #\'s 52018779, 52019226, 52007258 or 52002622 -a new skid plate and sending unit are required. The filler and vent hoses may need to be spliced and elongated as well.Some early 1987-1990 Jeep YJ20-Gal. plastic fuel tanks had an open ended skid plate without the rolled heat shield over the exhaust pipe, we recommend replacing the skid plate as an exhaust/heat shield safety precaution (TREXYJSP-20). We also recommend replacing the fill (TREXYJFH-1) and vent (TREXYJVH-1) hoses to prevent possible fitment issues with the new skid plate.
Approx. tank measurements(LxWxH): 33\" x 18 1/4\" x 11 3/4\"*.*The tank measurements are approximate and should be used as a guide to what other parts may be required. Stating \"the tank is the wrong size\" does not qualify as the \"wrong\" tank. There is only one quality replacement tank in the aftermarket for the Jeep YJ Wranglers and this is it. With that said, Jeep made at least six \"versions\" of this tank over the nine years of production i.e. a little shorter, a little narrower and/or the filler/vent neck is a little lower on the tank. These variances are possible so if your 1987-1995 Jeep YJ Wrangler has a plastic tank with a rectangle sending unit hole opening, this is the closest reproduction tank option available. With thousands sold since January of 2008, we are here to help you replace your original YJ fuel tank with this high quality, replacement tank.
We offer many of the corresponding parts:
- Fuel injected sending unit w/out fuel pump: TREXYJSU-20 ( # 371316730818)
- Fuel injected sending unit w/ fuel pump: TREXYJSU-20F ( # 391129164593)
- Internal Fuel pump: TREX30-713 ( # 371952506382)
- Non-Fuel injected sending unit: TREXYJSU-20NFI ( # 371446200940)
- Fuel Filler hose: TREXYJFH-1 ( # 371445517093)
- Fuel Vent hose: TREXYJVH-1 ( # 391268686182)
- Rollover valve w/ grommet: TREXEMSV-2 ( # 372274520624)
- Rollover valve w/o grommet: TREXEMSV-1 ( # 371453997265)
- Skid Plate: TREXYJSP-20 ( # 391269285566)
MTS tanks are constructed from durable, high density, cross-linking polyethylene by MTS COMPANY, L.C. The polyethylene of MTS tanks is nearly 1/4\" thick for superior strength and will not rust inside or out. MTS tanks contain no welds or seams and will not crack even at 150º F below zero (-101º C).
Warranty
This tank is covered bya five-year warranty. MTS polyethylene gas tanks are warranted to the originalpurchaser for a period of five years from the date of purchase. We will replaceany tank shown within five years from the date of purchase to be defective inmaterials or workmanship. No other warranty is made or expressed or implied.Our liability shall be limited to the cost of replacing the tank. No laborcost, loss, expense or lost opportunity suffered or incurred by any person orentity directly or indirectly arising from the use of any of our products isincluded or covered by this warranty. Parts other than tanks supplied by MTSCompany, L.C. are covered by the above terms except that the period of coverageshall be one year. The use of any tank or other part on a vehicle other thanthe model it was designed for voids this and any other warranty coverage and isneither recommended nor encouraged.
This tank is alsocovered by a lifetime warranty against rust. MTS polyethylene gas tanks areguaranteed against rust through of the tank for as long as the originalpurchaser owns the vehicle on which it was originally installed.
We ship via FedEx and UPSthroughout the United States and International FedEx/UPS/USPS shipping whereavailable. Please include a PO Box if applicable to receive USPS mail. Ordersare processed and shipped Monday through Friday, excluding holidays. After yourorder ships, we will send you an e-mail with a tracking number for your order.If you pay via PayPal, we will attach the tracking number to your PayPalpayment.
Our free shipping offeris valid only for the United States. If you need an order shipped outside theUS, please use our shipping tab for international shipping costs.
*We also offer expedited shipping via FedExExpress. Check out our shipping tab for options.
**International buyers – please note:Importduties, taxes, and charges are NOT included in the item price or postage cost.These charges are the buyer\'s responsibility.
-Please check with your country\'s customs office to determine whatthese additional costs will be, prior to offerding or buying.-
-Shipping/Postage costs paid on International Orders are NON-Refundable, NOexceptions-
Parts in stock
Our goal is to have enoughparts in stock so there will never be an issue of us being out of stock on anycertain part. But occasionally, we do run out of stock on parts. Sometimes thisis due to a manufacturer not supplying us enough parts, or in the case ofpopular parts they can sell out very quickly and we do not have any more instock at that time. If you order a part and we discover it is not in stock, wewill send you an e-mail notifying you, and give you the option of waiting for arestock or getting a refund.
