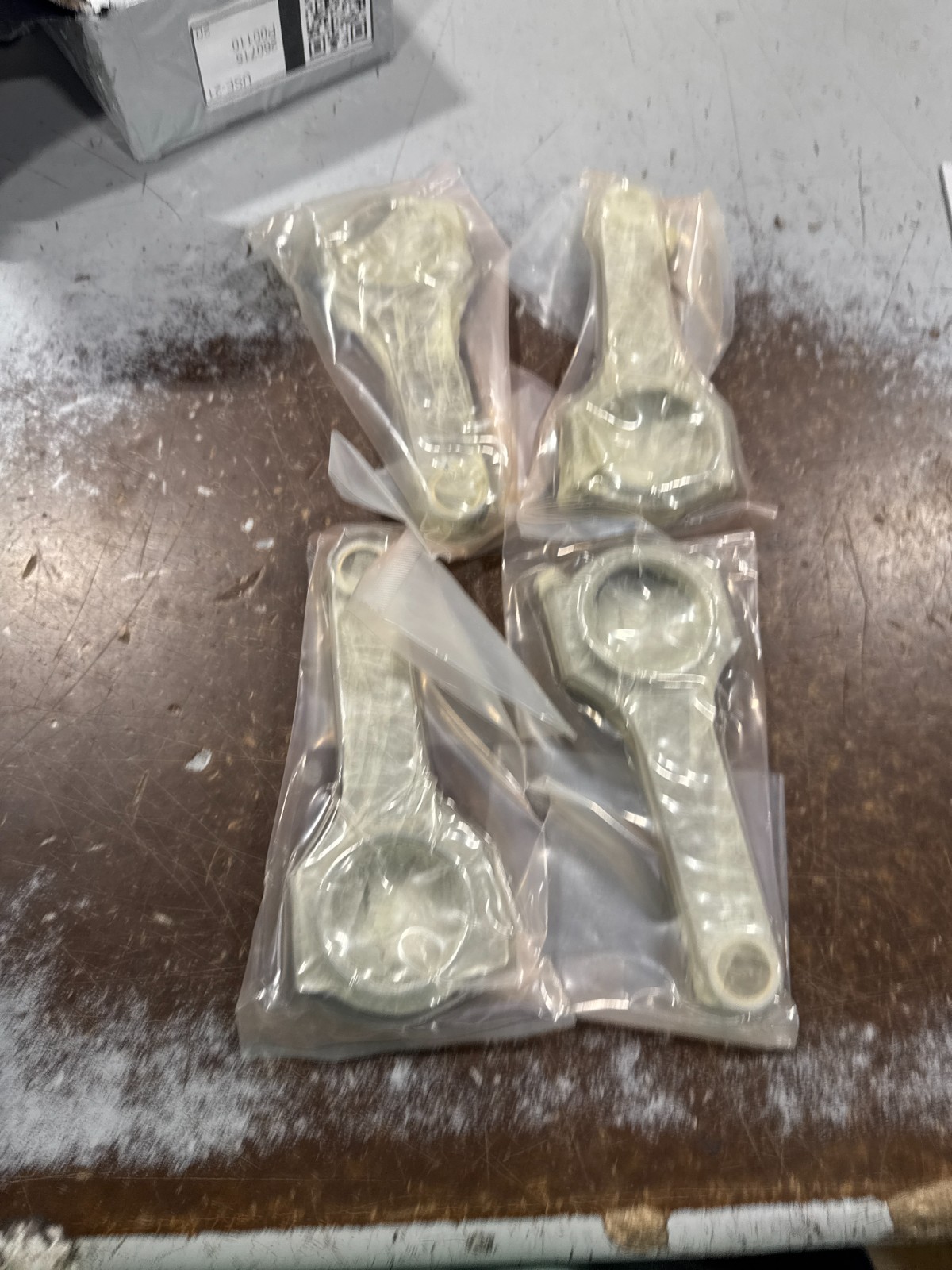

Forged 4340 H-beamConnecting Rods for Honda Civic D16 ZC D16Z6 5.394\"
Without connecting rod bolt
Always verify engine model, piston type, and dimensions before placing an order.
Fitment:
The compatibility list may not cover all vehicle variations.
If you are unsure,please contact us with your vehicle\'s year,model,and engine code to verify compatibility.
for Honda Civic CRX D16 ZC SOHC VTEC D Series：1986–89 for Acura Integra (USA)1986–89 for Acura Integra (Australia)1988–1991 for Honda Civic Si, CRX Si1990-1991 for Civic EX (4dr), Civic Wagon RT4WD1988–1991 for Civic for GTi in New Zealand1988–1989 for Civic models in Europe (ED4, ED7)1995 for Civic models in New Zealand (EG4)1988–1995 for Models in South Africa1998–2000 for Honda Civic GX1996–2000 for Honda Civic HX1996 for Honda Civic EX (sedan Peruvian version)1996–2000 for Honda Civic VTI1992–1995 for Honda Civic Si1992–1995 for Honda Civic EX, EX-V1992–1995 for Honda Civic ESi (European Market)1993–1995 for Honda Del Sol Si (US)1993–1996 for Honda Del Sol ESi (European)1992-1995 for Honda Civic RTSi1996–2000 for Honda Civic EX Coupé1991–1993 for Honda Civic Ferio EJ31992–1995 for Honda Civic EJ11992–1995 for Honda Domani MA41993-1997 for Honda del Sol (Si)
Dimensions:Center to center length: 137mm/5.394\"
Big end diameter: 48mm/1.890\"
Big end width: 22.66mm/0.892\"
Small end diameter: 19mm/0.748\"
Small end width: 20.32mm/0.8\"
Feature：Beam Style: H-beamConnecting Rod Bolt Diameter: 3/8\"-1.500\'\'LApproximate Connecting Rod Weight: 490g/pieceAdvertised Horsepower Rating: 600-800HPConnecting Rod Finish: Shot-peened, PolishedPin: Bronze wrist pin bushingsWrist Pin Style: FloatingCap Retention Style: Cap Screw
✅ 4340 Aircraft-Grade Forged Steel for maximum strength✅ H-Beam design, CNC machined for precision and consistency✅ Shot-peened and polished to reduce stress risers✅Perfect for high RPM and turbocharged/nitrous applications
Installation Notes:(1)Professional installation is strongly recommended(2)Always torque bolts to the manufacturer’s specifications(3)These connecting rods are designed for high-performance engines using 4032 or 2618 forged pistons.They may not be compatible with OEM cast pistons. If your engine is still using original factory pistons, please purchase OEM connecting rods instead.
