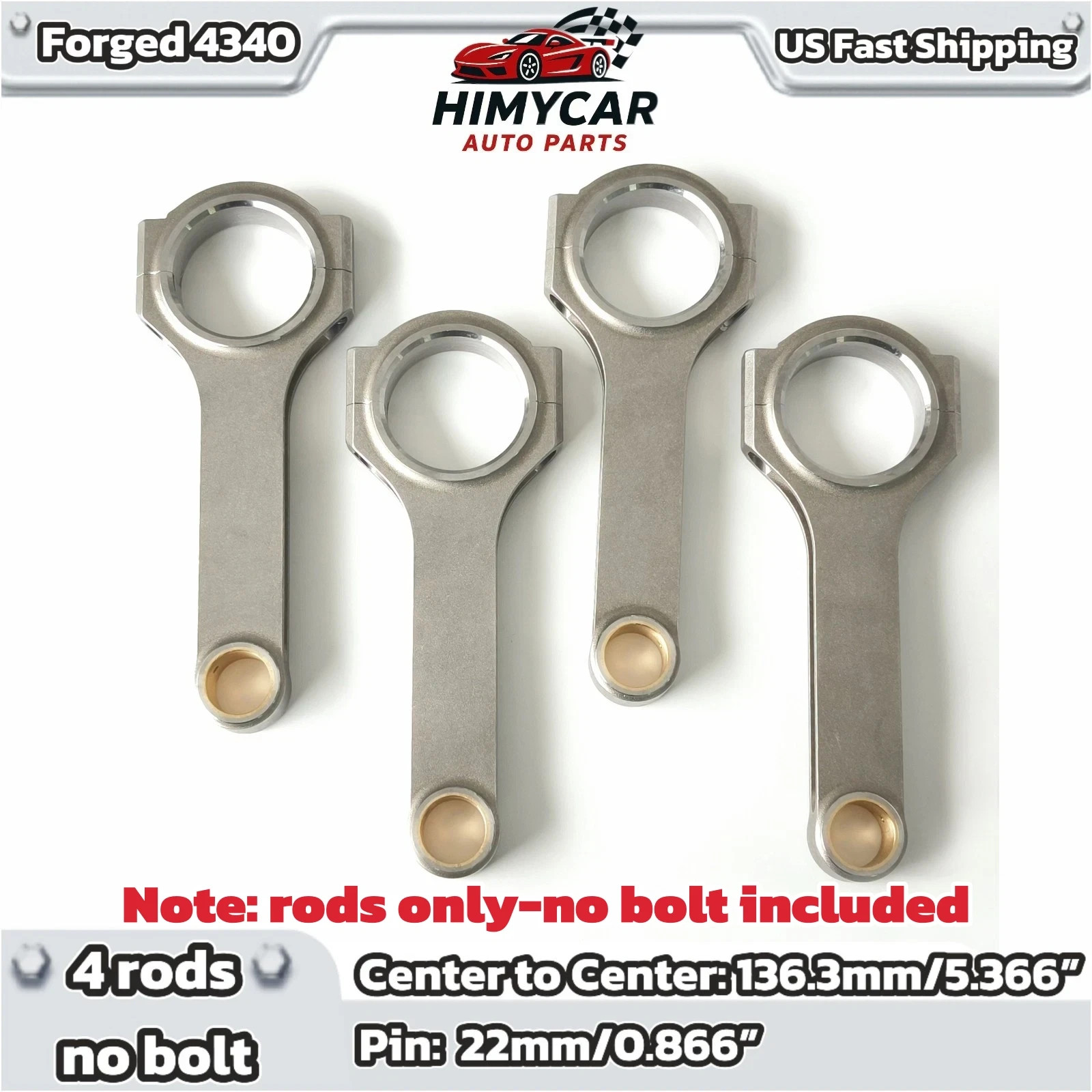

Forged H-beam Connecting Rod for NISSAN SR20 SR20DET SR20DE SR20VE SR20VET 5.366Without connecting rod bolt
Fitment:
The compatibility list may not cover all vehicle variations.
If you are unsure,please contact us with your vehicle's year,model,and engine code to verify compatibility.
Nissan : SR20, SR20DET / SR20DE / SR20VE / SR20VET Engine
Dimensions:Center to Center Length: 136.30mm/5.366"
Big End Bore Diameter: 51.00mm/2.008"
Big End Width: 22.80mm/0.898"
Small End Bore Diameter: 22.00mm /0.866"
Small End Width: 22.80mm/0.898"
Beam Style: H-beam
Feature：Connecting Rod Bolt Diameter: 3/8'' -24unf-3b-1.600LApproximate Connecting Rod Weight: 520g/pieceAdvertised Horsepower Rating: 600HP-800HPCopper bush Material: QAL10-3-1.5Connecting Rod Finish: Shot-peened, PolishedPin: Bronze wrist pin bushingsWrist Pin Style: FloatingCap Retention Style: Cap screwWeight Matched Set: Yes ,Balanced +/- 1gMagnafluxed: YesPrivate Label: Yes ,availableCustom design: Yes, accept
✅ 4340 Aircraft-Grade Forged Steel for maximum strength✅ H-Beam design, CNC machined for precision and consistency✅ Shot-peened and polished to reduce stress risers✅Perfect for high RPM and turbocharged/nitrous applications
Installation Notes:(1)Professional installation is strongly recommended(2)Always torque bolts to the manufacturer’s specifications(3)These connecting rods are designed for high-performance engines using 4032 or 2618 forged pistons.They may not be compatible with OEM cast pistons. If your engine is still using original factory pistons, please purchase OEM connecting rods instead.
Always verify engine model, piston type, and dimensions before placing an order.
