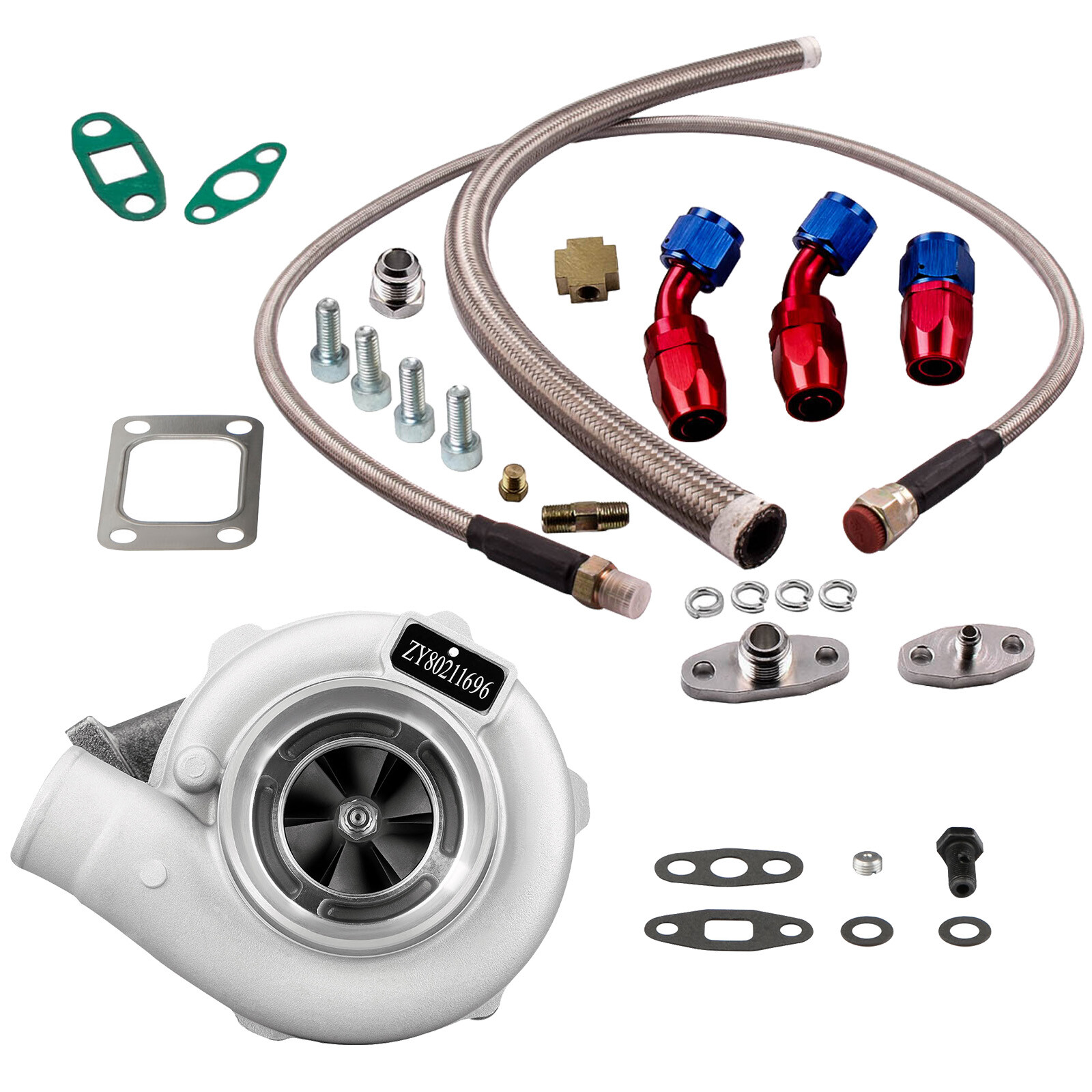

GT30 GT3037 GT3076 Turbo charger 500HP 0.82 A/R + Oil Drain Return FEED Line kit
All modifications must be installed by licensed mechanics and in compliance with your local modification />perfect for all all 4/6 cyl 2.5l-3.0lengine
horse power:capable of boosting horse power up to 500hp
cooling type:water + oil cooledspecification
exhaust inlet (turbo manifold) flange:standard t3 flange
exhaust outlet flange:4-bolt flange
turbine trim: 74.2
turbine inducer diameter: 64.8mm
turbine exducer diameter: 55.8mm
turbine a/r:0.82
compressor trim: 48.1
compressor inducer diameter: 52.7mm
compressor exducer diameter:76mm
compressor a/r:0.6
oil inlet: m12*1.25 & 2*m8*1.25
oil outlet: 2*m8*1.25
water: m18*1.5
wastegate: w/o wastegate
thrust bearing: 270 degrees
turbo type: individual
bearing:journal bearing
* oil return line: length: 550mm || inner diameter: 21mm
* oil feed line: length: 1000mm || inner diameter: 14mmnotice
* please check the specifications carefully before offerding. .
* this is universal application turbo, so modification might be required for some vehicles
* professional installation is highly recommended (no instruction included)
