WHAT INFORMATION DO WE NEED
- VIN NUMBER(INCLUDE VIN IN CHECKOUT USING "MESSAGE TO SELLER" OR SIMPLY MESSAGE IT TO US.
- Please check the number on the part – is it '2' or '3'? The currently listed product is marked '2'!!!
- VIRGINIZE A TESTED UNIT
- PROGRAM YOUR VIN AND VEHICLE MODEL YEAR INFORMATION
- PROGRAM YOUR EHS NUMBER THAT IS STAMPED ON THE SIDE OF YOUR VALVE BODY
- FLASH THE CONTROL UNIT WITH YOUR VEHICLES REQUIRED SOFTWARE
- ECU SCN CODE YOUR CONTROL UNIT
- WE RELEASE THE TRANSPORT PROTECTION AND ACTIVATE YOUR UNIT

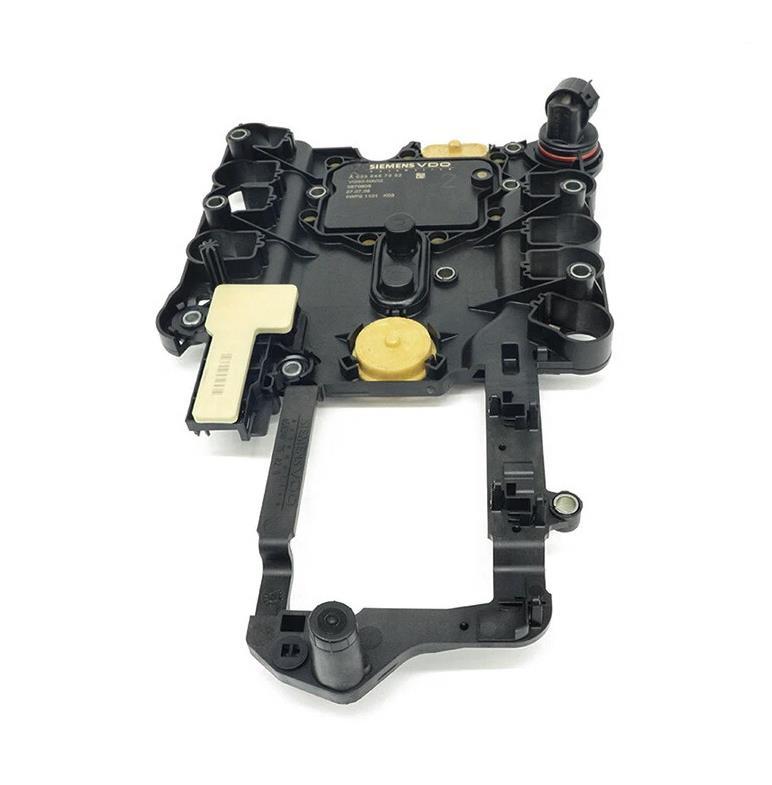

Transmission Control Unit TCM / TCU Siemens VDO / Continental
Part number:
·A 0335456632
·A 0335456732
·A 0335457232
·A 0335457332
·
Error:
·Y3/8Y1 WORKINGPRESSURE CONTROL SOLENOID
·Y3/8Y2 K1 CLUTCHSOLENOID
·Y3/8Y3 K2 CLUTCHSOLENOID
·Y3/8Y4 K3 CLUTCHSOLENOID
·Y3/8Y5 B1 BRAKE CLUTCHSOLENOID
·Y3/8Y6 B2 BRAKE CLUTCHSOLENOID
·Y3/8Y7 B3 BRAKE CLUTCHSOLENOID
·Y3/8Y8 TORQUECONVERTER LOCKUP SOLENOID
·Y3/8S1 SELECTION RANGESENSOR
·Y3/8N1 TURBINE SPEEDSENSOR
·Y3/8N2 INTERNAL SPEEDSENSOR
·Y3/8N3 OUTPUT SPEEDSENSOR
·Y3/8N4 FULLYINTEGRATED TRANSMISSION CONTROL
ErrorS:
·0641 Component Y3/8n4(Fully integrated transmission control (VGS) control
unit) defective
·0642 The voltagesupply of the speed sensors is faulty.(Undervoltage)
·0705 ComponentY3 / 8S1 (selection area sensor (VGS)) is defective
·Check 0706Component Y3/8S1 (Range Sensor (VGS) Selection)
·0717 The signalfrom component Y3 / 8n1 (turbine speed sensor (VGS)) not available
·0718 ComponentY3 / 8n1 (Turbine Speed Sensor (VGS)) Defective
·0722 The signalfrom component Y3 / 8N3 (Output speed sensor (VGS)) not available
·0723 ComponentY3/8N3 (Output Speed Sensor (VGS)) is defective
·0748 Theinternal electrical test of component Y3/8y2 (K1 clutch control solenoid valve(VGS)) failed
·0778 Theinternal electrical test of component Y3/8y5 (B1 Brake Control Solenoid Valve(VGS)) failed
·0798 Theinternal electrical test of component Y3/8y7 (B3 Brake Control Solenoid Valve(VGS)) failed
·2216 checkcomponent Y3/8S1 (selection range sensor (VGS)) The adjustment sequenceoccurred outside of the valid range
·2716 Theinternal electrical test of component Y3/8y4 (K3 clutch control solenoid valve(VGS)) failed
·2725 Theinternal electrical test of component Y3/8y6 (B2 brake control solenoid valve(VGS)) failed
·2734 Theinternal electrical test of component Y3/8y3 (K2 clutch control solenoid valve(VGS)) failed
·2759 Theinternal electrical test of component Y3/8y8 (torque converter lockup clutchcontrol solenoid valve (VGS)) failed
·2766 Too highspeeds have occurred on components Y3 / 8n2 (internal speed sensor (VGS))
·2767 The signalfrom component Y3 / 8n2 (Internal speed sensor (VGS)) not available
·2768 ComponentY3 / 8n2 (internal speed sensor (VGS)) is defective
·2810 Theinternal electrical test of component Y3 / 8y1 (working pressure controlsolenoid valve (VGS)) failed
Otherdiagnostic error:
·0604 , 0605 , 0607,060A , 060C , 0613 , 061B , 062F , 0633 , 0641 ,
·0651 , 06A3 , 0701 ,0711 , C300 , 1610 , 1629 , 1631 , 1632 , 1633 , 1634 ,
·1636, 1638 , 1639 ,1693 , 1710 , 1711 , 1712.
