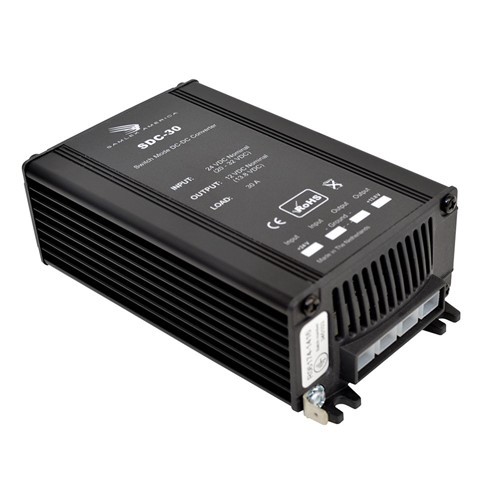

SAMLEX SDC-30 SWITCHING DC-DC CONVERTER 20-32V INPUT 13.8V SDC-30 For Sale - New and Used

Serving the marine community since 2011 User name: WakezonemarineProduct Photo Item Description

30A Non-Isolated Step-Down 24VDC-12VDC Converter

This high efficiency switch-mode step-down DC-DC converter converts an input voltage of 24 VDC nominal (range 20 VDC to 32 VDC) to a highly regulated output voltage of 12 VDC nominal (13.8 VDC) at 30 Amps. The SDC-30 DC-DC converter is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include overload, over-heating, reverse polarity and over-voltage switchmode design

Mount in almost any location

Compact and light weight

Reverse polarity protection

High efficiency

Cycle by cycle current limiting circuit

Overvoltage protection

Short circuit 20-32 VDC

Output: 13.8 VDC

Amps: 30 Amps

Weight: 1.2 (lbs)

Weight: 0.54 (kg)

Dimensions: 6 x 3.5 x 1.9 (in)

Dimensions: 15.2 x 8.9 x 4.8 (cm)

Warranty: 2 Year moving equipment

Heavy trucks

Buses

Marine vehicles

CB radios

12 Volt lighting systems

AM/FM sound systems
