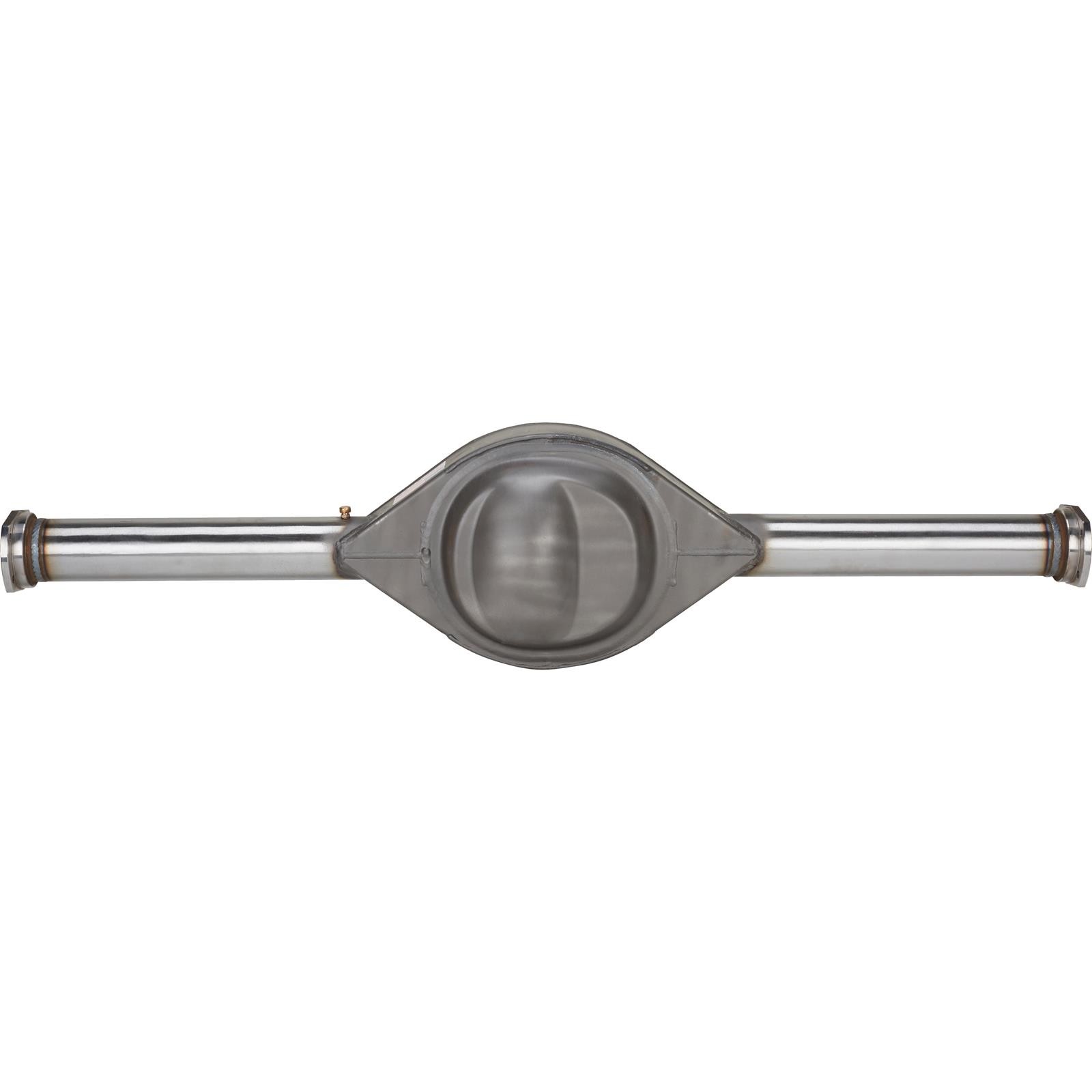

Heavy-Duty Fabricated Housing: All-new fabricated steel center section with internally reinforced 3-inch O.D. axle tubes and 3/16-inch wall thickness for added strength and reduced flex, Builder-Friendly Design: Pumpkin-centered housing with uniform axle tube lengths side to side simplifies mock-up and installation of custom 3-link and 4-link rear suspension systems, Precision Bearing Ends: Features billet steel New Big Ford Torino-style bearing ends fixture welded for durability and compatibility with common aftermarket brake kits, Optimized Strength and Cooling: Large-capacity fabricated center section holds more gear oil than stamped housings, helping gears stay lubricated and run cooler under load, Complete Housing Setup: Measures 49 inches flange-to-flange and 54 inches hub-to-hub, in Ford 9 Inch Fabricated Rear End Axle Housing, 54" Width Sku # 91046254 Mfr. Part # 91046254 Condition New Brand Speedway Motors Sold Each Details
Looking for a budget-friendly, rock-solid foundation for your custom rear suspension? Look no further. Our fabricated steel Ford 9 inch axle housings feature all-new components for maximum durability. It’s an evolution of the rugged and reliable 9 inch Ford platform.
Designed with the Builder in Mind
This housing is pumpkin-centered with uniform-length axle tubes, side-to-side. So mounting suspension brackets, especially on triangulated 3-link and 4-link systems, is much easier. Unlike factory stamped housings, these fabricated plate-steel center sections provide a wide, flat surface for easy bracket attachment. Note that the pumpkin-centered design will offset the pinion yoke about 1\" to the passenger side.
Axle tubes are 3” O.D. with a 3/16” wall thickness. Heavy-wall tubes, along with a larger center section, significantly reduce distortion during welding of rear-link brackets or spring pads. Billet steel “New Big Ford” (Torino) style bearing ends are fixture-welded (3.150” O.D. bearing, with 2.50” axle flange offset).
Improved Design for Greater Durability
In addition to the heavy-duty bearing ends, the axle tubes are supported with bracing inside the large center housing. This reduces flex in the rear end housing, which is something you won’t find on stamped factory 9 inch housings. Plus, gears stay well-lubed and run cooler thanks to a large-capacity fabricated center (holds more gear oil than stamped housings). Axle is vented on the driver’s side.
Yet, with improved durability, our fabricated axle housing is on average 2 pounds lighter than stock style housings of the same size! Add your choice of axle shafts and third member (sold separately), and you are ready to roll. Equip your race car, hot rod or 4X4 with Ford 9 inch parts from Speedway Motors to ensure there are no weak links in your driveline combination.
Total wheel-to-wheel mounting surface width is 54\" (from hub-to-hub). The pumpkin is centered in the housing, which puts the pinion 1\" offset from center, requiring different length axle shafts. For this 54\" housing you will need one 27-5/8\" long axle and one 25-1/4\" long axle. This housing includes (8) T-bolts for the axle bearing retainer plates and (10) studs for the third member.
- Fabricated steel center section
- 3\" O.D. axle tubes with 3/16\" wall thickness
- Axle tubes are internally reinforced for additional strength, less flex
- Billet steel \"New Big Ford\" (Torino) style bearing ends
- Accepts brake kits for 2.50\" axle shaft flange offset (from housing flange)
- Housing measures 49\" from flange-to-flange
- Assembled rearend measures 54\" from hub-to-hub (axle flange face-to-face)
- Improved design weighs only 38.2 lbs vs 40.7 lbs stock-style fabricated housings
- Centered pumpkin w/ 1\" offset pinion yoke for easy suspension mock-up
- Greater-than-stock capacity center section holds more gear oil and runs cooler
- Requires different length axle shafts, left/right
- Includes vent on driver side axle tube
- Includes studs for 3rd member and 3/8” T-bolts for bearing retainer plates
- 3rd member sold separately
Specs MFG. Part # 91046254 Hub-to-Hub Width 54.00" Flange-to-Flange Width 49.00" Tube O.D. 3.00" Material Type Steel Sold in Quantity Each Notes Assembled rear end (axle flange face-to-face) width is 54" Standard Pinion Location Offset Pinion / Centered 3rd Member Reviews Yes Rated by Charlie on October 28, 2025
Summary: The axle is perfect , welds look great and just as the description described.
Yes, I recommend this product.
Excellent part Rated by Tincho on September 16, 2025
Summary: Great quality, welds look very nice. Would buy again!
Yes, I recommend this product.
Awesome product and great price! Rated by Murillo Fab Works on September 15, 2023
Summary: Used in a 64 Nova that got a triangulated four link with coilovers. Perfect fitment!
Yes, I recommend this product.
Cant beat it for the price. Rated by Don on August 05, 2023
Summary: Nice welds, and everything looks to be great quality. Wouldnt hesitate to buy another for my next project.
Yes, I recommend this product.
Excellent product Rated by 56er on April 03, 2023
Summary: 56 custom built
Yes, I recommend this product.
