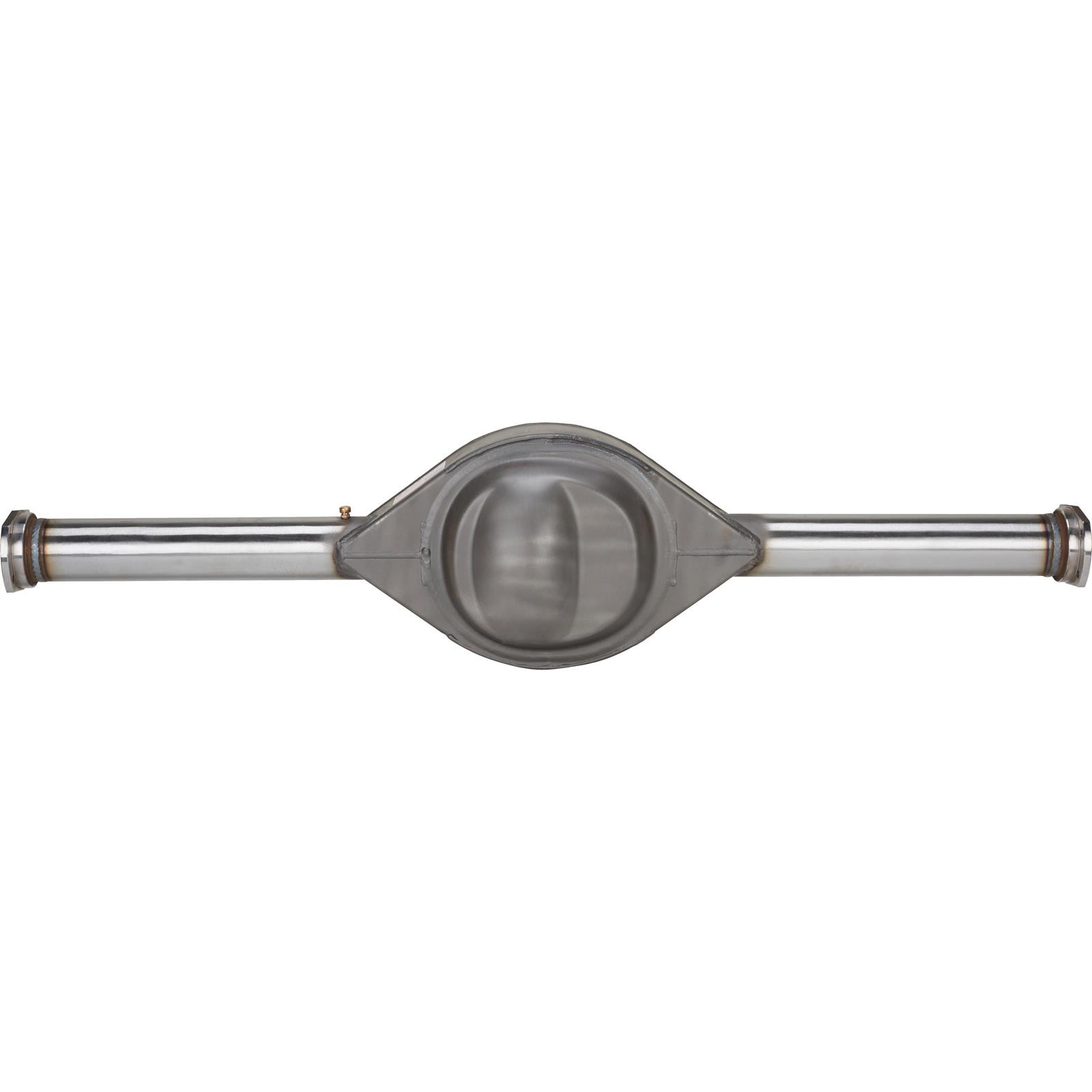

Heavy-Duty Fabricated Construction: Built from precision-welded steel with 3-inch O.D. axle tubes and 3/16-inch wall thickness for maximum durability and stability., Internally Reinforced Design: Features internal bracing inside the axle tubes to reduce flex and distortion during high-stress conditions or suspension bracket welding., Centered Pumpkin for Easy Setup: Uniform-length tubes with a centered housing simplify suspension bracket placement, ideal for 3-link and 4-link rear suspension systems., Billet Bearing Ends: Equipped with billet steel “New Big Ford” (Torino) style bearing ends for secure, high-performance axle support and superior longevity., Lightweight and Efficient: Fabricated center section holds more gear oil for improved cooling, yet weighs less than stock housings; inc Ford 9 Inch Fabricated Rear End Axle Housing, 58" Width Sku # 91046258 Mfr. Part # 91046258 Condition New Brand Speedway Motors Sold Each Details
Looking for a budget-friendly, rock-solid foundation for your custom rear suspension? Look no further. Our fabricated steel Ford 9 inch axle housings feature all-new components for maximum durability. It’s an evolution of the rugged and reliable 9 inch Ford platform.
Designed with the Builder in Mind
This housing is pumpkin-centered with uniform-length axle tubes, side-to-side. So mounting suspension brackets, especially on triangulated 3-link and 4-link systems, is much easier. Unlike factory stamped housings, these fabricated plate-steel center sections provide a wide, flat surface for easy bracket attachment. Note that the pumpkin-centered design will offset the pinion yoke about 1\" to the passenger side.
Axle tubes are 3” O.D. with a 3/16” wall thickness. Heavy-wall tubes, along with a larger center section, significantly reduce distortion during welding of rear-link brackets or spring pads. Billet steel “New Big Ford” (Torino) style bearing ends are fixture-welded (3.150” O.D. bearing, with 2.50” axle flange offset).
Improved Design for Greater Durability
In addition to the heavy-duty bearing ends, the axle tubes are supported with bracing inside the large center housing. This reduces flex in the rear end housing, which is something you won’t find on stamped factory 9 inch housings. Plus, gears stay well-lubed and run cooler thanks to a large-capacity fabricated center (holds more gear oil than stamped housings). Axle is vented on the driver’s side.
Yet, with improved durability, our fabricated axle housing is on average 2 pounds lighter than stock style housings of the same size! Add your choice of axle shafts and third member (sold separately), and you are ready to roll. Equip your race car, hot rod or 4X4 with Ford 9 inch parts from Speedway Motors to ensure there are no weak links in your driveline combination.
Total wheel-to-wheel mounting surface width is 58\" (from hub-to-hub). The pumpkin is centered in the housing, which puts the pinion 1\" offset from center, requiring different length axle shafts. For this 58\" housing you will need one 29-5/8\" long axle and one 27-3/8\" long axle. This housing includes (8) T-bolts for the axle bearing retainer plates and (10) studs for the third member.
- Fabricated steel center section
- 3\" O.D. axle tubes with 3/16\" wall thickness
- Axle tubes are internally reinforced for additional strength, less flex
- Billet steel \"New Big Ford\" (Torino) style bearing ends
- Accepts brake kits for 2.50\" axle shaft flange offset (from housing flange)
- Housing measures 53\" from flange-to-flange
- Assembled rearend measures 58\" from hub-to-hub (axle flange face-to-face)
- Improved design weighs only 40.5 lbs vs 42.5 lbs stock-style fabricated housings
- Centered pumpkin w/ 1\" offset pinion yoke for easy suspension mock-up
- Greater-than-stock capacity center section holds more gear oil and runs cooler
- Requires different length axle shafts, left/right
- Includes vent on driver side axle tube
- Includes studs for 3rd member and 3/8” T-bolts for bearing retainer plates
- 3rd member sold separately
- test test test
Specs MFG. Part # 91046258 Hub-to-Hub Width 58.00" Flange-to-Flange Width 53.00" Tube O.D. 3.00" Material Type Steel Sold in Quantity Each Notes Assembled rear end (axle flange face-to-face) width is 58" Standard Pinion Location Offset Pinion / Centered 3rd Member Reviews Real nice rearend Rated by Chuck on July 03, 2026
Summary: Easy order, custom length, nice welds
I would buy this again Rated by - on August 09, 2023
Summary: Perfect for my roadster. Very well constructed. Delivered on time and undamaged.
Will use on next project too Rated by Todd on March 05, 2018
Summary: Seems to be quality made. Will know more when get some miles underneath it.
Yes, I recommend this product.
